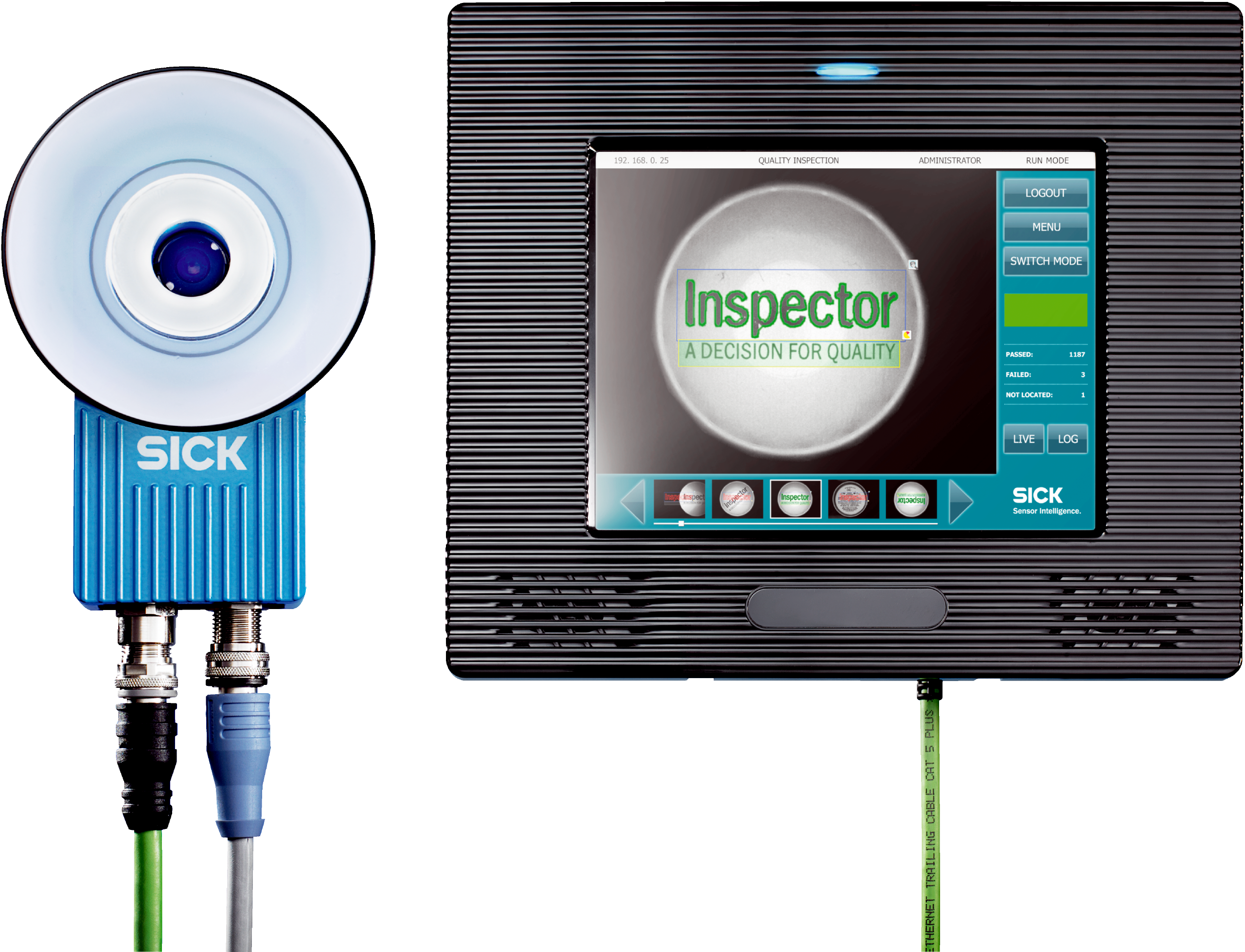

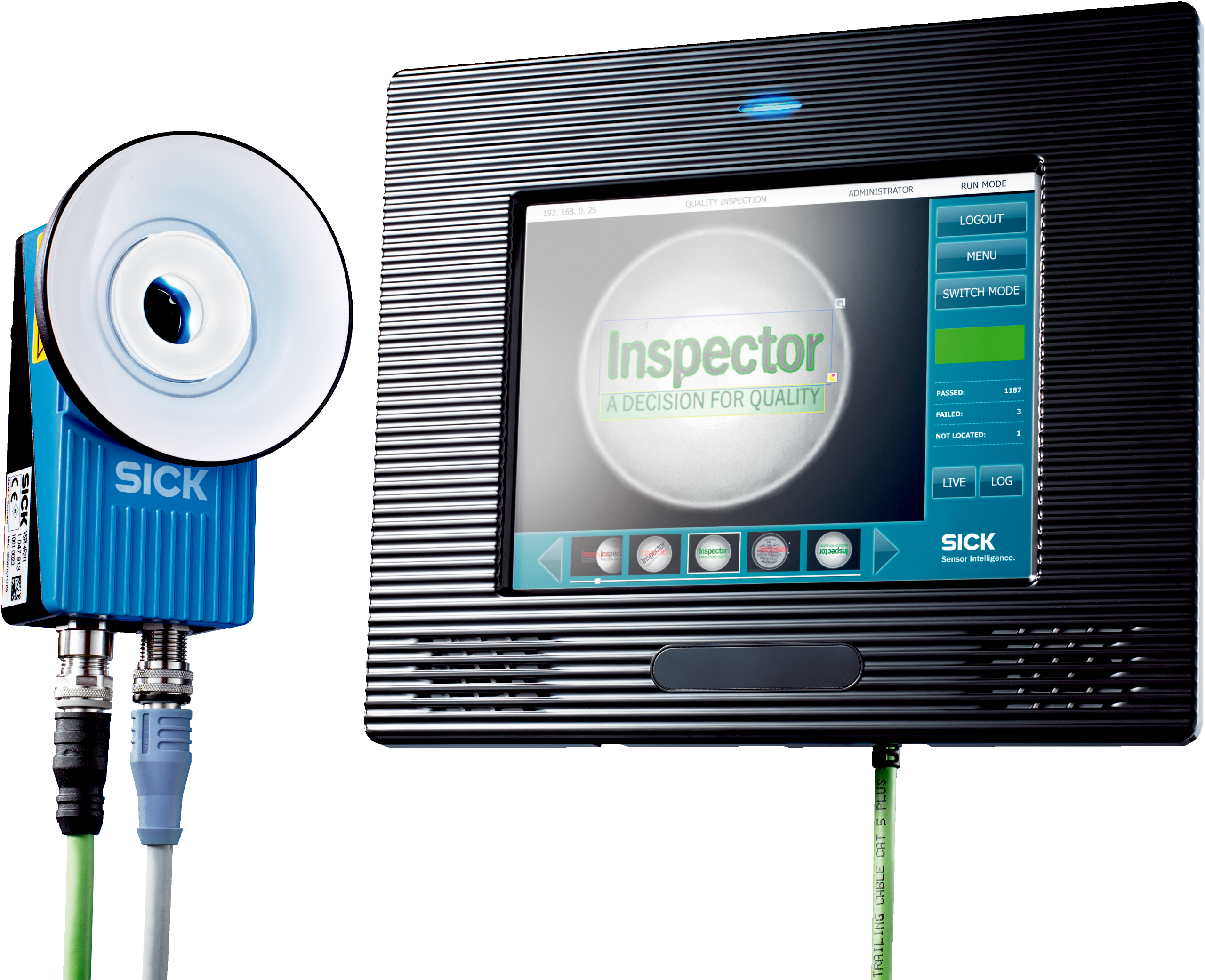

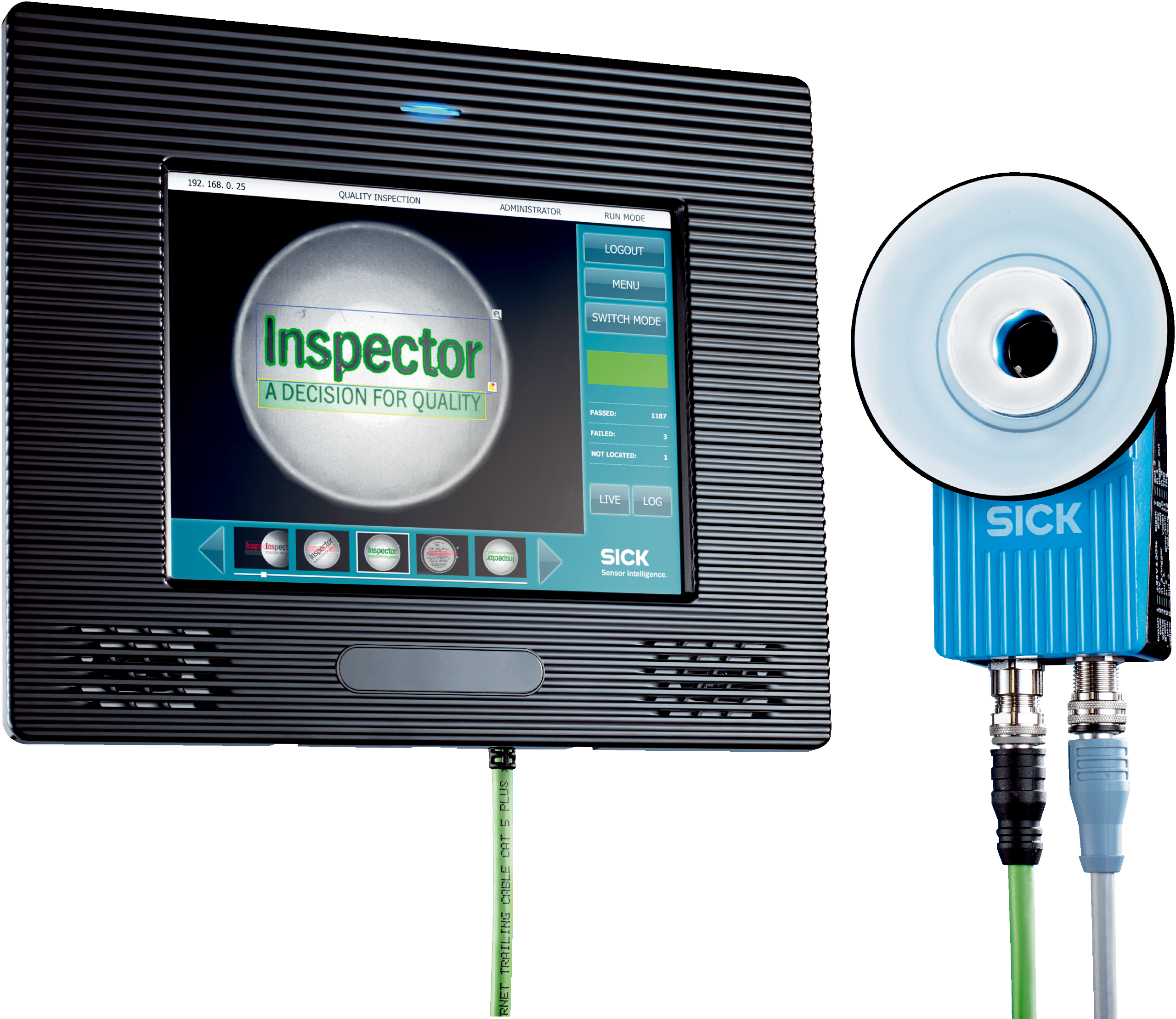

Machine vision | Inspector | VSPV-22222 | Product name: Inspector Viewer | Sensor resolution: 800 px x 600 px | Sensor: CMOS monochrome | Optical focus: Adjustable focus (manually) | Processor: 1.6 GHz
Technology
2D snapshot
Configurable
✔
Toolkit
Supervision
Image sensor
CMOS monochrome
Optical focus
Adjustable focus (manually)
Task
Detecting - Standard objectsMeasuring - Dimension, contour and volumeMeasuring - NumberIdentifying - OCRIdentifying - PatternDetermining position - 2D position determination
Connection type
Giga LAN: RJ-45USB 2.0
Supply voltage
10 V DC ... 28 V DC
Power consumption
25 W
Enclosure rating
IP63, on front
Housing material
ABS, plastic front
Poids
800 g
Dimensions (L x W x H)
263.2 mm x 221.2 mm x 54.4 mm
Mounting
On wallVESA mounting
MTBF
30,000 h
Sensor resolution
800 px x 600 px
Processor
1.6 GHz
Ethernet
✔
Data transmission rate
100/1,000 Mbit/s
Operator interfaces
Inspector Viewer software
Configuration software
Inspector Viewer software
Data storage and retrieval
Images and data can be stored to and retrieved from flash and external FTP servers, 4 GB Compact Flash Type II
Ambient operating temperature
0 °C ... +45 °C1)
Storage temperature
–20 °C ... +60 °C1)
ECLASS 5.0
27310205
ECLASS 5.1.4
27310205
ECLASS 6.0
27310205
ECLASS 6.2
27310205
ECLASS 7.0
27310205
ECLASS 8.0
27310205
ECLASS 8.1
27310205
ECLASS 9.0
27310205
ECLASS 10.0
27310205
ECLASS 11.0
27310205
ECLASS 12.0
27310205
ETIM 5.0
EC001820
ETIM 6.0
EC001820
ETIM 7.0
EC001820
ETIM 8.0
EC001820
UNSPSC 16.0901
43211731
