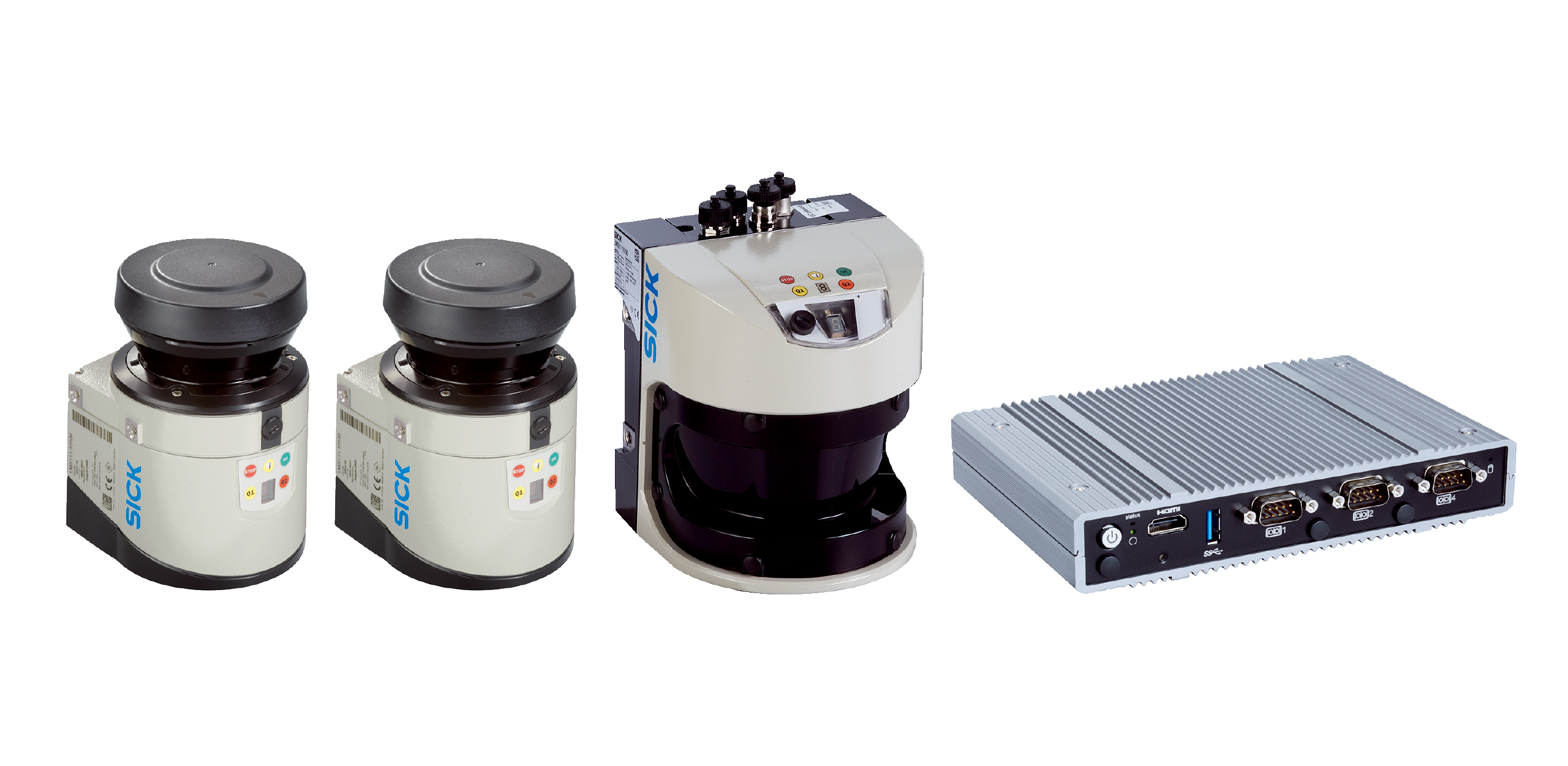

Profiling systems | VPS Pro | VPS553 | Integrated application: Measurement of dimensions for one vehicle at a time | Application: System for measurement of vehicle dimensions | Items supplied: LMS511 SE (3 x), VPS Traffic Controller with VPS software incl.USB stick with TEMS info sample client, source code for TEMS info sample client, TEMS analyzer, and operating instructions
Application
System for measurement of vehicle dimensions
Number of covered lanes
1
Scanner design
3-scanner solution
Vehicle data
Vehicle dimensions (length, width, height)3D measuring points on the vehicleVehicle speedStart- and end measurement point of the measurement
Recommended vehicle distance
Vehicles must pass through the measuring station one by one
Calibration
Yes
Stop-and-go functionality
Yes
Measuring range requirements
Measuring range (spanned by scan planes of the LMS) must be optically clear
Installation position
Distributed
Installation height
5 m ... 8 mHeight of LMS Width, at least 1 m higher than the maximum vehicle height, LMS Length, offset by the maximum vehicle length + 3 m in the direction of travel, mounted laterally or overhead
Length measurement accuracy
± 50 mm with vehicle speed < 7 km/h1)2)
Width measurement accuracy
± 30 mm with vehicle speed < 7 km/h1)2)
Height measurement accuracy
± 30 mm with vehicle speed < 7 km/h1)2)
Calibration accuracy
20 mm x 15 mm x 15 mm (L x W x H)1)3)
Driving speed
3 km/h ... 7 km/h, for full coverage, achievement of the maximum measurement accuracy of the length, width, and height measurement possible7 km/h ... 100 km/h, reduction in length, width, and height measurement accuracy
Minimum object size
1 m x 0.6 m x 0.6 m (L x W x H)
Maximum object size
30 m x 5 m x 5 m (L x W x H)
Items supplied
LMS511 SE (3 x)VPS Traffic Controller with VPS software incl.USB stick with TEMS info sample client, source code for TEMS info sample client, TEMS analyzer, and operating instructions
