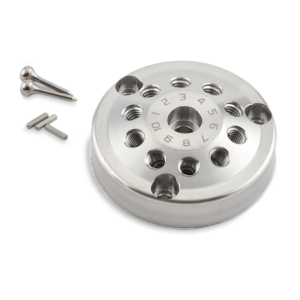

VH06-0005 - Hastelloy C-22 Valve Head for GC Injection & Switching Valves

This replacement valve head for a 6-port Injection & Switching Gas Chromatography Diaphragm Valve is engineered for long-lasting performance. The valve head is constructed with Hastelloy C-22, a nickel-chromium-molybdenum alloy to enhance resistance to pitting, crevice corrosion and stress corrosion cracking. Each valve head is certified leak tight up to 500 psi at 100°C for low temperature and 180°C for medium temperature. Valve heads work with AFP ELDV/MDVG 6-port Series Valves.
Key Features:

Ports: 6
Temperature: LT 100°C | MT 180°C
Pressure: 500 psi
Material: Hastelloy C-22
Coating: None
Port Size: 0.030”
