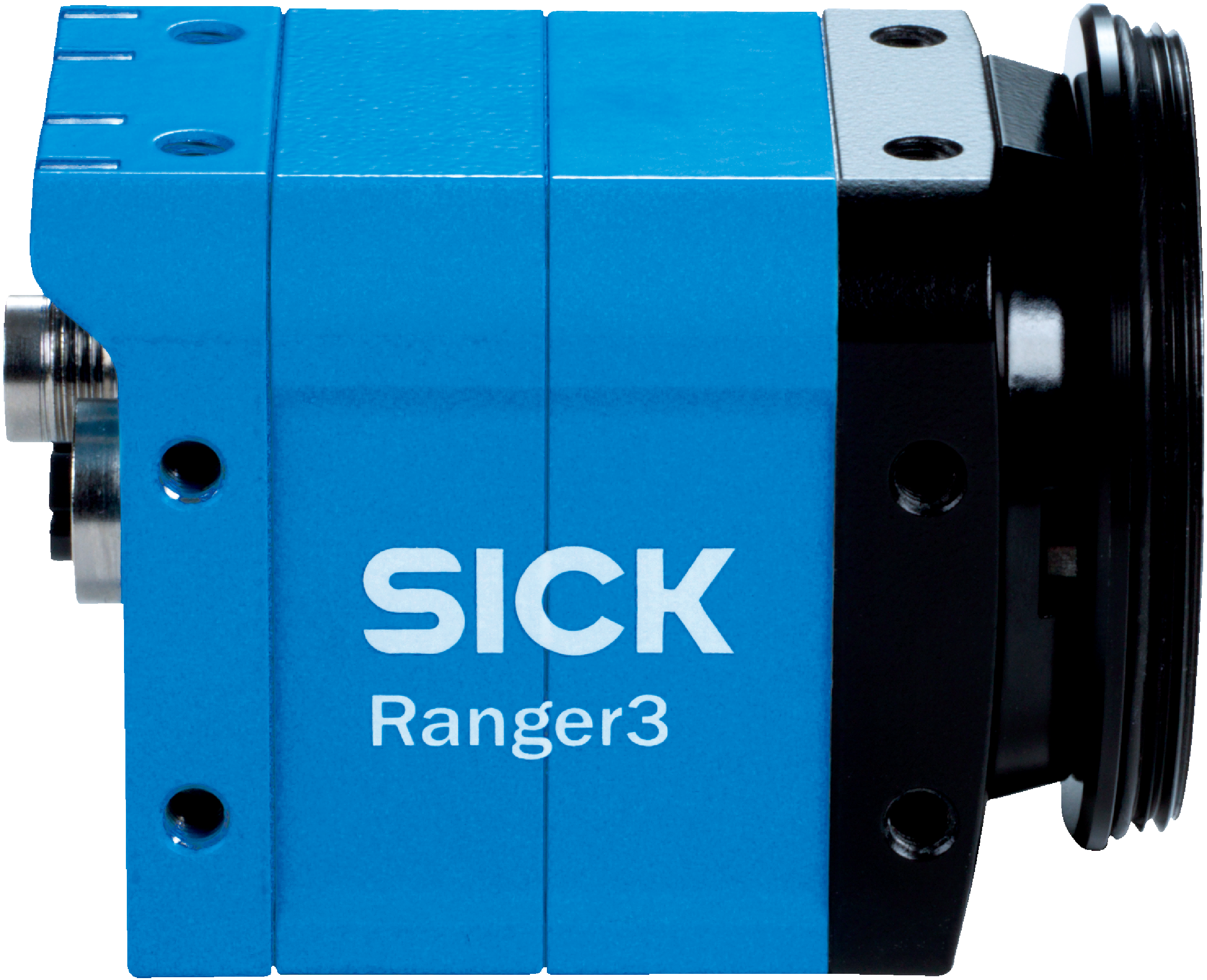

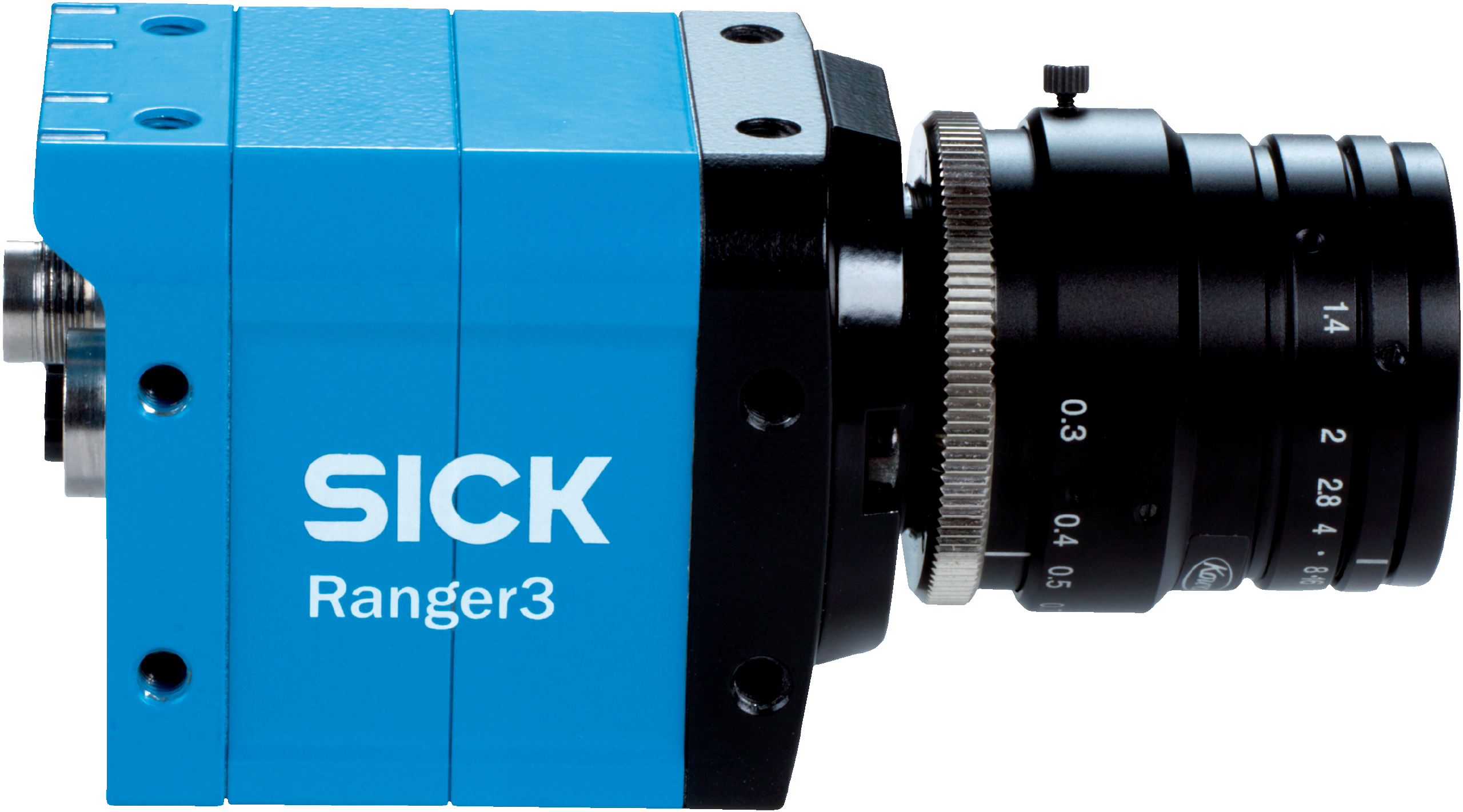

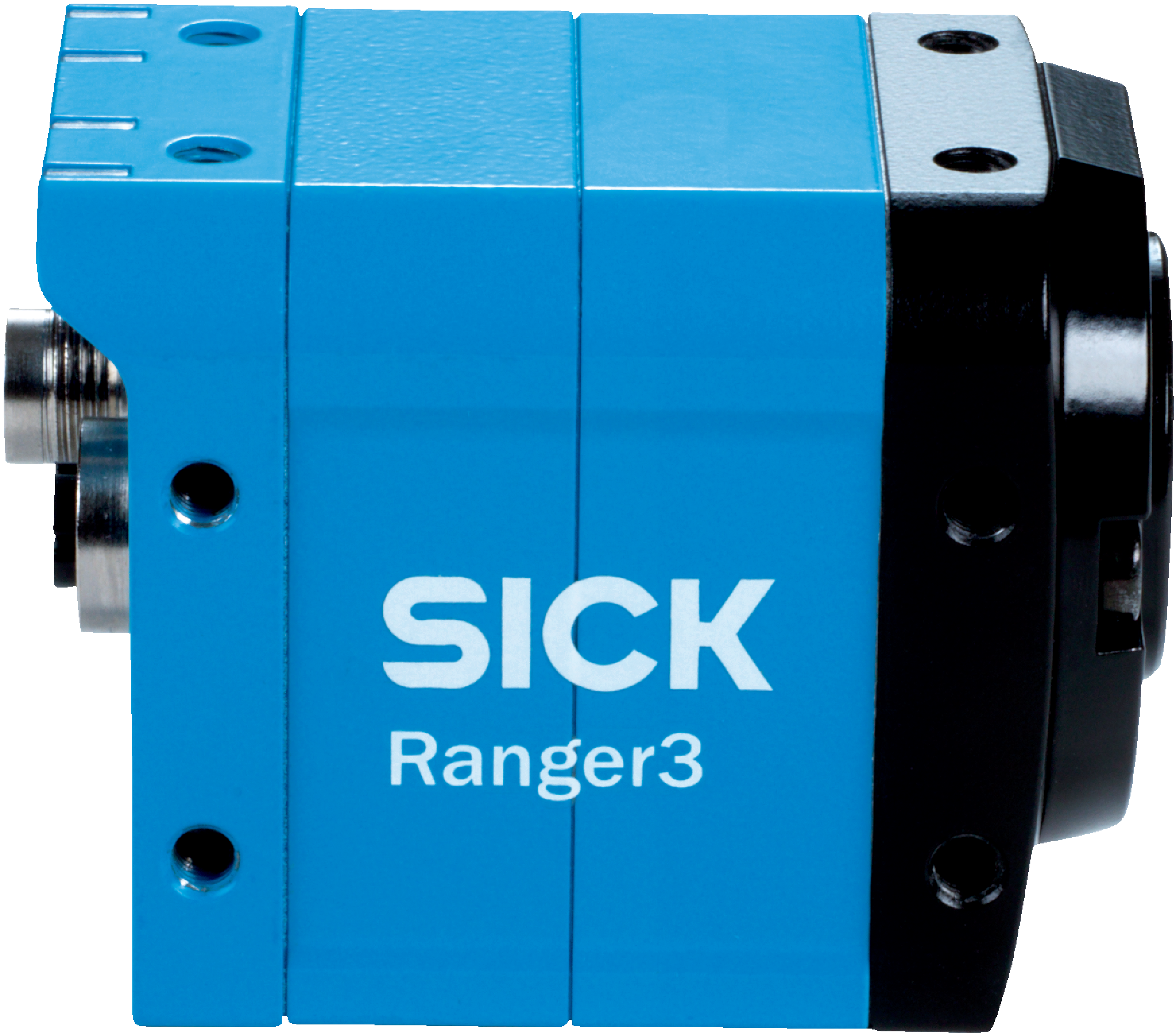

Machine vision | Ranger3 | V3DR3-40NE31111 | Product version: Ranger3-40 | Scan/frame rate: 20,000 3D profiles/s, in AOI, 2,500 3D profiles/s, full format | Lens: C-mount
Technology
3D laser triangulation
Streaming
✔
Shutter technology
Global-Shutter
Example field of view
Free of choice by lens selection
Exposure mode
LinearHDR
Illumination
To be ordered separately as accessories
Data synchronization
Free running, encoder triggered, external triggering
3D measurement
✔
Scatter measurement
✔
Reflectance measurement
✔
Spectral range
400 nm ... 950 nm
Lens
C-mount
Optical format
1″
Note
To be ordered separately as accessories
Task
Detecting - Standard objectsMeasuring - Dimension, contour and volumeMonitoring and controlling - QualityDetermining position - 3D position determination
Connector material
M12: Nickel-coated brass
Supply voltage
24 V DC, ± 20 %
Power consumption
12 W
Enclosure rating
IP20IP65, by ProFlex protection hoodIP67, by ProFlex protection hood
Housing material
Aluminum
Housing color
Blue, powder-coated
Weight
330 g
Dimensions (L x W x H)
77 mm x 55 mm x 55 mm
Pixel size
6 µm x 6 µm
Image sensor
CMOS sensor from SICK with ROCC technology, M30
Scan/frame rate
20,000 3D profiles/s, in AOI2,500 3D profiles/s, full format
Sensor resolution
2,560 px x 832 px
Maximum 3D height resolution
16 bits, 1/16 subpixel
Ethernet
✔ , UDP/IP
Remark
GigE Vision Standard
Data transmission rate
1,000 Mbit/s
Configuration software
Ranger3 Studio
Operating system
Windows 7, Windows 10
Application programming interface (API)
GenAPI
Digital input
4 x HIGH = 10 V ... 28.8 V
Digital output
2 x TTL
Encoder interface
RS-422
Shock load
15 g, 3 x 6 directions
Vibration load
5 g, 58 Hz ... 150 Hz
Ambient operating temperature
0 °C ... +50 °C1)
Storage temperature
–20 °C ... +70 °C1)
ECLASS 5.0
27310205
ECLASS 5.1.4
27310205
ECLASS 6.0
27310205
ECLASS 6.2
27310205
ECLASS 7.0
27310205
ECLASS 8.0
27310205
ECLASS 8.1
27310205
ECLASS 9.0
27310205
ECLASS 10.0
27310205
ECLASS 11.0
27310205
ECLASS 12.0
27310205
ETIM 5.0
EC001820
ETIM 6.0
EC001820
ETIM 7.0
EC001820
ETIM 8.0
EC001820
UNSPSC 16.0901
43211731
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
cTUVus certificate
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
GigE Vision
✔
GenICam
✔
