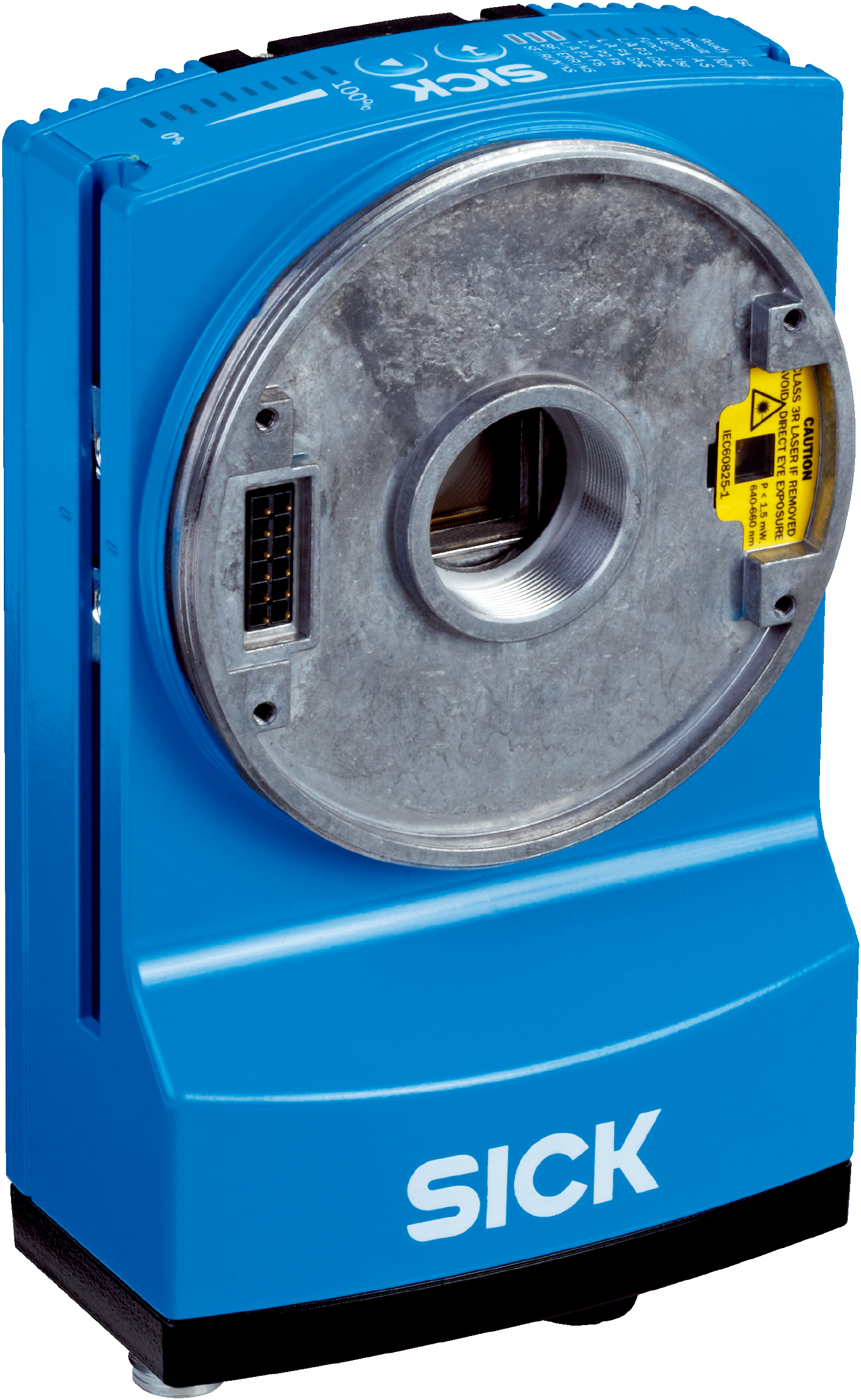

Image-based code readers | Lector64x/Lector65x | V2D654R-MCWFA6S50 | Variant: Complete device | Optical focus: Adjustable focus (manual) | Sensor resolution: 2,048 px x 2,048 px (4.2 MP) | Illumination color: White | Focal length: 35 mm | Communication interface: Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP | Cold storage applications: no | Note: Additional accessories may be necessary for some communication interfaces (details available online)
Variant
Complete device
Optical focus
Adjustable focus (manual)
Sensor
CMOS monochrome
Sensor resolution
2,048 px x 2,048 px (4.2 MP)
Illumination
Integrated
Illumination color
White, LED, Visible,
Feedback spot
LED, Visible, green, 525 nm, ± 15 nm
Alignment aid
Laser, Red, 630 nm ... 680 nm
Laser class
1, Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed.3., as described in “Laser Notice No. 56” dated May 8, 2019 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
Lens
C-mount
Optical format
1″
Focal length
35 mm
Note
Focus 0.6 m
Aperture
11
Scanning frequency
40 Hz, With resolution of 4 megapixels
Code resolution
≥ 0.1 mm1)
Working range
300 mm ... 2,200 mm2)3)
Connection type
1 x M12, 17-pin plug (serial, CAN, I/Os, power supply)2 x M12, 8-pin socket (Ethernet, P1 not yet with function)1 x M8, 4-pin socket (USB)
Supply voltage
24 V DC, ± 20 %
Power consumption
Typ. 20 W, ± 20 %
Output current
≤ 100 mA
Housing material
Aluminum die cast
Housing color
Light blue (RAL 5012)
Window material
Glass
Enclosure rating
IP65 (EN 60529 (1991-10), EN 60529/A2 (2002-02))
Protection class
III
Electrical safety
EN 60950-1 (2011-01)
Poids
963 g
Dimensions (L x W x H)
142.8 mm x 90 mm x 106.1 mm
MTBF
100,000 h
Readable code structures
1D codes, Stacked, 2D codes
Bar code types
GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, USPS (Postnet, Planet, USPS4SCB), Australian Post, Dutch KIX Post, Royal Mail, Swedish Post
2D code types
Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code
Stacked code types
PDF417
Code qualification
On the basis of ISO/IEC 16022, ISO/IEC 15415, ISO/IEC 18004
Internal image storage
512 MB
Ethernet
✔ , TCP/IP
PROFINET
✔
EtherNet/IP™
✔
Serial
✔ , RS-232, RS-422
CAN
✔
Function
SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server)
Data transmission rate
20 kbit/s ... 1 Mbit/s
PROFIBUS DP
✔
Type of fieldbus integration
Optional over external fieldbus module CDF600-2
Digital inputs
4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional CMC600 parameter memory in CDB650/CDM420)
Configurable inputs
Encoder input, external trigger
Digital outputs
6 (CDB650: “Result 1”, “Result 2”, “Result 3”, “Result 4”, 2 external outputs via CMC600 or CDM420: “Result 1”, “Result 2”, 2 external outputs via CMC600 or cable with open end: “Result 1”, “Result 2”, “Result 3”, “Result 4”)
Configurable outputs
Good read, External illumination control, free configurable output condition, "device ready"
Reading pulse
Digital inputs, non-powered, serial interface, Ethernet, CAN, auto pulse, presentation mode
Optical indicators
21 LEDs (10 x status display, 10 x LED bar graph, 1 green feedback spot)
Acoustic indicators
Beeper/buzzer (can be switched off, can be assigned a function to signal a result)
Control elements
2 buttons (choose and start/stop functions)
Operator interfaces
Web server
Configuration software
SOPAS ET
Memory card
Micro SD memory card (flash card) max. 16 GB, optional
Data storage and retrieval
Image and data storage via microSD memory card and external FTP
EncoderFrequency
Max. 1 kHz
External illumination control
Via digital output (max. 24 V trigger) or external illumination connection
Electromagnetic compatibility (EMC)
EN 61000-6-2:2005-08 / EN 61000-6-3 (2007-01)
Vibration resistance
EN 60068-2-6:2008-02
Shock resistance
EN 60068-2-6
Ambient operating temperature
0 °C ... +50 °C
Storage temperature
–20 °C ... +70 °C
Relative humidity
90 %, Non-condensing
Ambient light immunity
2,000 lx, on code
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
Profinet certificate
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
4Dpro
✔
ECLASS 5.0
27280103
ECLASS 5.1.4
27280103
ECLASS 6.0
27280103
ECLASS 6.2
27280103
ECLASS 7.0
27280103
ECLASS 8.0
27280103
ECLASS 8.1
27280103
ECLASS 9.0
27280103
ECLASS 10.0
27280103
ECLASS 11.0
27280103
ECLASS 12.0
27280103
ETIM 5.0
EC002550
ETIM 6.0
EC002550
ETIM 7.0
EC002999
ETIM 8.0
EC002999
UNSPSC 16.0901
43211701
