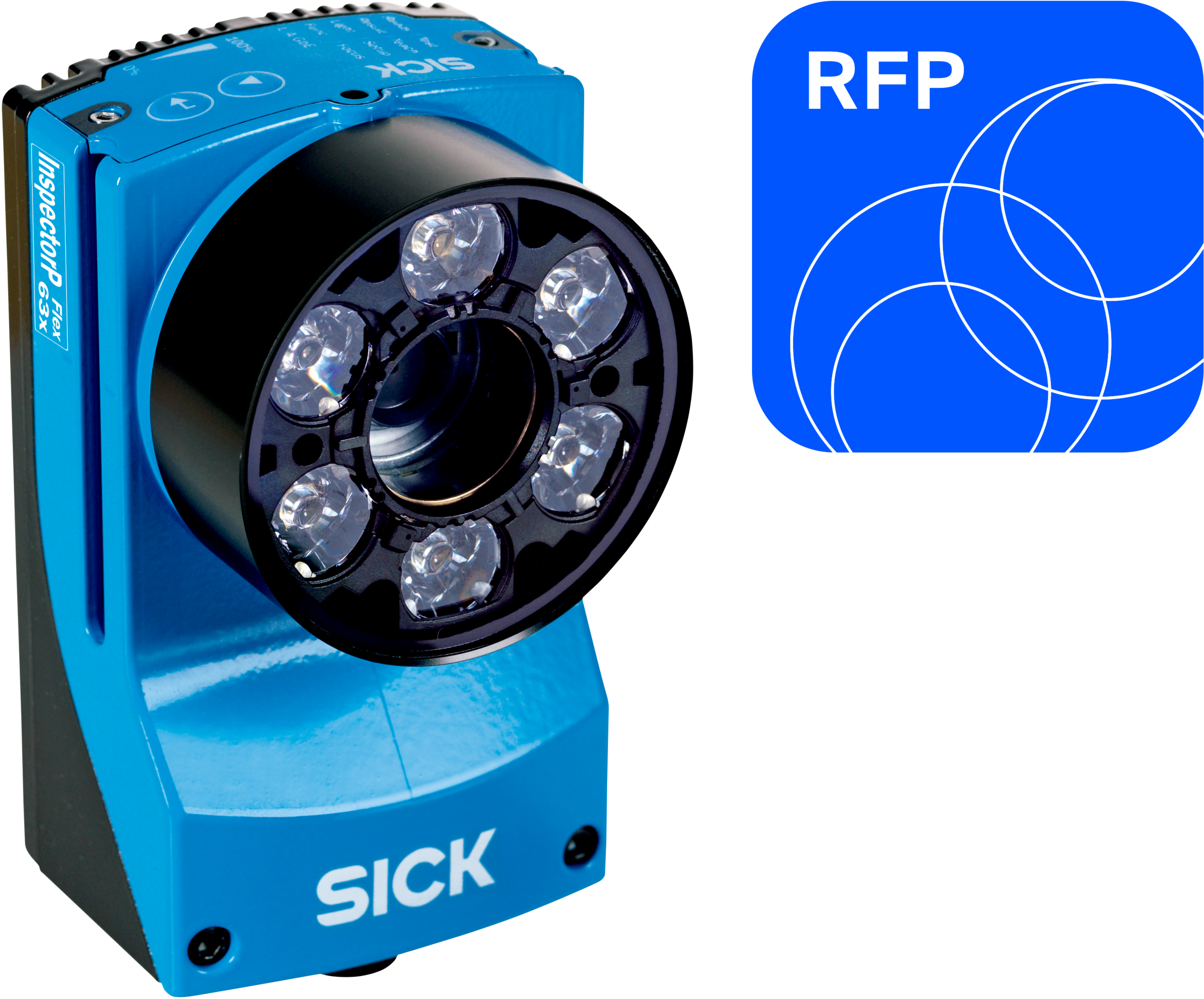

Machine vision | InspectorP Rack Fine Positioning | V2D621P-2MDFCB5S51 | Illumination: Integrated | Illumination color: Infrared | Lens: 9.6 mm | Working distance: 50 mm ... 350 mm, 50 mm ... 700 mm | Sensor resolution: 1,280 px x 1,024 px (1.3 MP) | Sensor: CMOS monochrome | Optical focus: Adjustable focus | Cold storage applications: no
Technology
2D snapshot
Configurable
✔
Image sensor
CMOS monochrome
Shutter technology
Global-Shutter
Optical focus
Adjustable focus (electrical)
Working range
50 mm ... 350 mm1)50 mm ... 700 mm2)
Illumination
Integrated
Illumination color
Infrared, LED, invisible, 850 nm, ± 25 nm
Feedback spot
LED, Visible, green, 525 nm, ± 15 nm
Alignment aid
Laser, Red, 630 nm ... 680 nm
Laser class
1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)
LED class
Risk group 1 (IEC 62471 (2006-07) / EN 62471 (2008-09))
Focal length
9.6 mm
Task
Localizing, navigating and guiding - NavigatingDetermining position - 2D position determination
Connection type
1 x M12, 17-pin male connector (serial, I/Os, voltage supply)1 x M12, 4-pin female connector (Ethernet)
Supply voltage
12 V DC ... 24 V DC, ± 10 %
Power consumption
Typ. 4 W
Enclosure rating
IP65 (EN 60529 (1991-10), EN 60529/A2 (2002-02))
Protection class
III
Housing material
Aluminum die cast
Window material
Glass
Weight
170 g
Dimensions (L x W x H)
71 mm x 43 mm x 35.6 mm
Sensor resolution
1,280 px x 1,024 px (1.3 MP)
Repeatability
0.05 mm ... 0.1 mm typical1)
Target
Drill holes (Hole diameter 8 mm ... 15 mm)
Ethernet
✔ , TCP/IP
Function
FTP, HTTP
PROFINET
✔
Data transmission rate
10/100 MBit/s
Operator interfaces
Web-Interface
Configuration software
Web-Interface, PLC interface
Data storage and retrieval
Image and data logging via microSD memory card and external FTP
Digital output
4 digital outputs, 24 V
Output current
≤ 100 mA
Control elements
2 buttons
Optical indicators
11 LEDs (5 status displays, 16 LEDs, 5 LED bar graphs, 1 green/red feedback spot)
Acoustic indicators
Beeper
Shock load
EN 60068-2-27:2009-05
Vibration load
EN 60068-2-6:2008-02
Ambient operating temperature
0 °C ... +50 °C1)
Storage temperature
–20 °C ... +70 °C1)
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
Profinet certificate
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
4Dpro
✔
ECLASS 5.1.4
27310205
ECLASS 6.0
27310205
ECLASS 7.0
27310205
ECLASS 8.0
27310205
ECLASS 9.0
27310205
ECLASS 10.0
27310205
ECLASS 11.0
27310205
ECLASS 12.0
27310205
ECLASS 13.0
27310205
ECLASS 14.0
27310205
ECLASS 15.0
27310205
ETIM 6.0
EC001820
ETIM 7.0
EC001820
ETIM 8.0
EC001820
ETIM 9.0
EC001820
ETIM 10.0
EC001820
UNSPSC 091201.0
43211700
UNSPSC 100501.0
43211700
UNSPSC 111201.0
43211700
UNSPSC 120901.0
43211700
UNSPSC 131201.0
43211731
UNSPSC 140801.0
43211731
UNSPSC 151101.0
43211731
UNSPSC 160901.0
43211731
UNSPSC 171001.0
43211731
UNSPSC 180801.0
43211731
UNSPSC 190501.0
43211731
UNSPSC 200601.0
43211731
UNSPSC 210901.0
43211731
UNSPSC 220601.0
43211731
UNSPSC 230701.0
43211731
UNSPSC 240301.0
43211731
UNSPSC 250901.0
43211731
UNSPSC 260801.0
43211731
