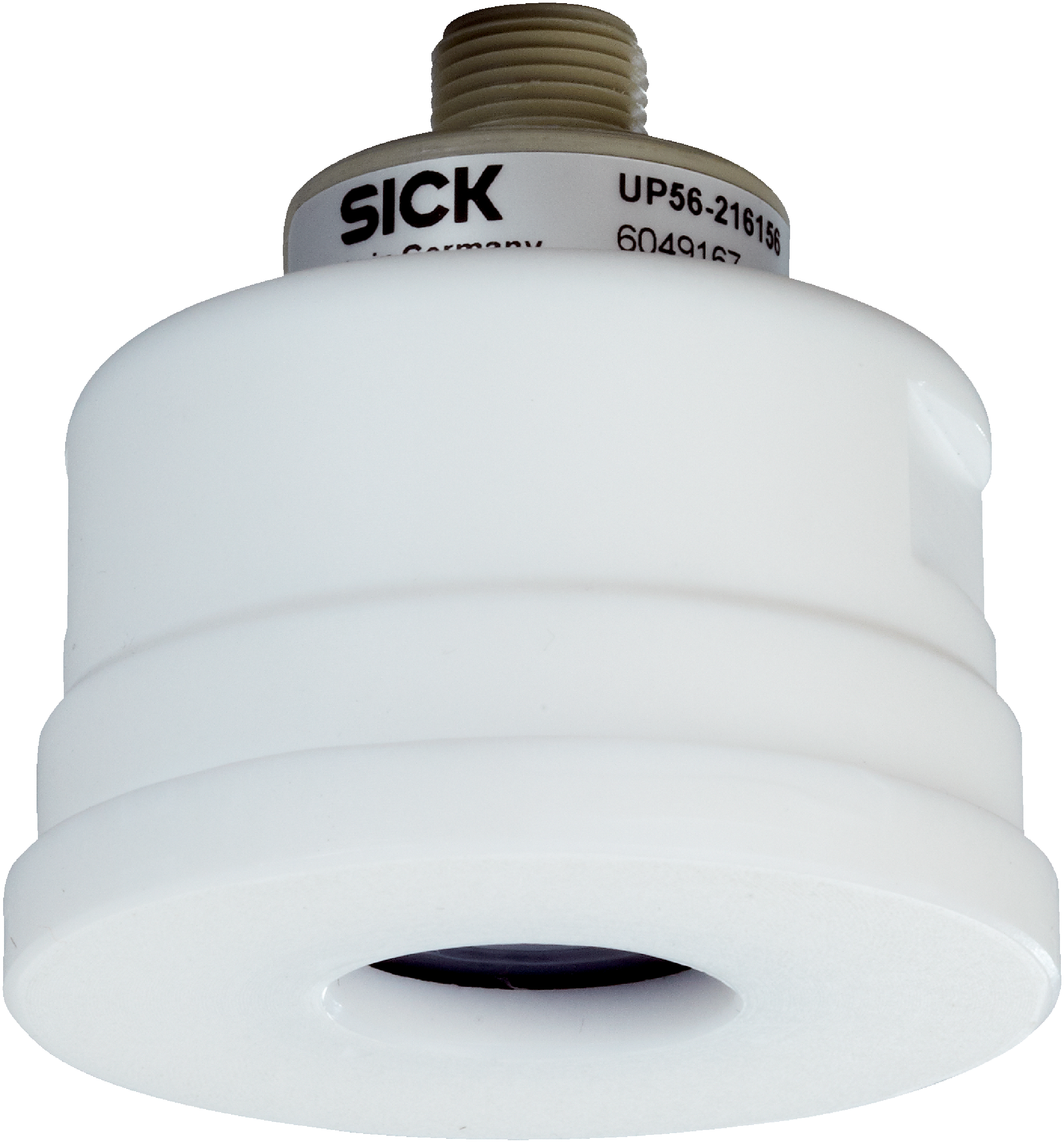

Level sensors | UP56 | UP56-216156 | Communication interface: - | Process connection: GF connection D40 | Remote amplifier: No | Output signal: 4 mA ... 20 mA | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +85 °C | Process pressure: 0 bar ... 2 bar | Wetted parts: PTFE, FFKM | Housing material: PTFE, PP | Measuring range in tank: 65 mm ... 700 mm | Measuring range immersion tube: 65 mm ... 1,500 mm | Enclosure rating: IP67 | Display: no | PWIS-cleaned: no | Bluetooth: no
Medium
Fluids
Measurement
Switch, Continuous
Measuring range in tank
65 mm ... 700 mm
Measuring range immersion tube
65 mm ... 1,500 mm
Process pressure
0 bar ... 2 bar1)
Process temperature
–25 °C ... +85 °C
Display
Without
Accuracy of sensor element
≤ 1 % From the full scale value
Reproducibility
± 0.15 %1)
Resolution
0.18 mm
Response time
84 ms2)
MTTF
> 100 years
Communication interface
-
Supply voltage
9 V DC ... 30 V DC1)
Residual ripple
± 10 %
Power consumption
≤ 80 mA2)
Protection class
III
Connection type
Round connector M12 x 1, 5-pin
Output signal
4 mA ... 20 mA3)
Hysteresis
5 mm4)
Output current
200 mA
Time delay before availability
≤ 300 ms
Enclosure rating
IP67
Ultrasonic frequency
200 kHz
Ultrasonic transducer
PTFE coating, FFKM
Wetted parts
PTFEFFKM
Process connection
GF connection D40
Housing material
PTFE, PP
Housing design
Compact
Weight
+ 145 g UP56 Pure Mini
Ambient operating temperature
–25 °C ... +70 °C1)
Ambient temperature, storage
–40 °C ... +85 °C
