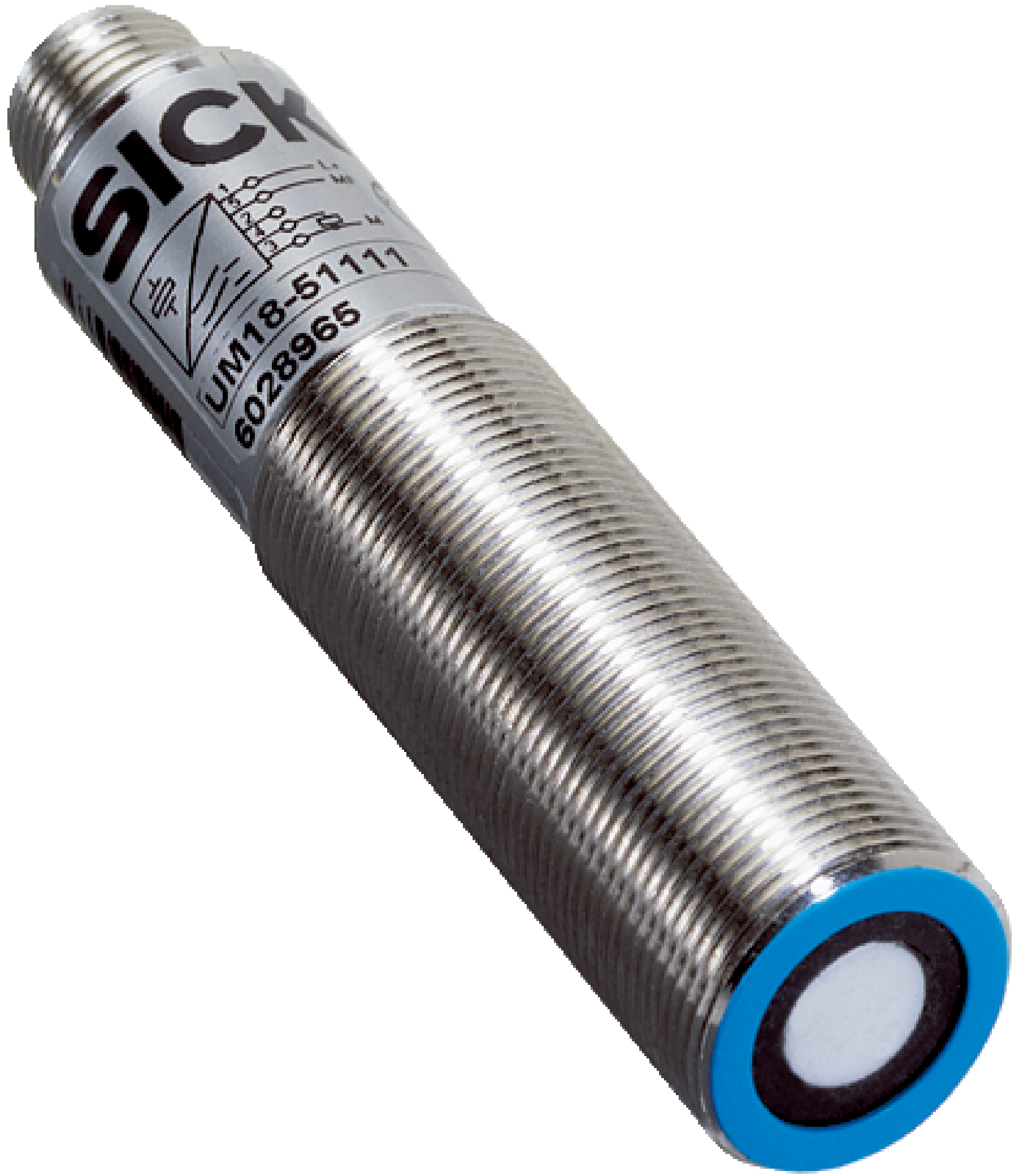

Ultrasonic distance sensors | UM18 | UM18-51111 | Communication interface: - | Operating range, limiting range: 30 mm ... 250 mm, 350 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 32 ms | Digital output: 1 x PNP
Operating range, limiting range
30 mm ... 250 mm, 350 mm
Resolution
≥ 0.08 mm
Repeatability
± 0.15 %1)
Measurement accuracy
0.17 % / K2)
Response time
32 ms
Switching frequency
± 15 Hz
Output time
8 ms
Ultrasonic frequency (typical)
320 kHz
Detection area (typical)
See diagrams
Additional function
Set switching mode: Distance to object (DtO) / Window (Wnd) / Object between sensor and background (ObSB)Teach-in of digital outputMulti functional input: external teachReset to factory default
Number
11)
Type
PNP
Maximum output current IA
≤ 500 mA
Multifunctional input (MF)
1 x
Hysteresis
2 mm
Supply voltage UB
DC 10 V ... 30 V1)
Power consumption
≤ 1.2 W2)
Initialization time
< 300 ms
Enclosure rating
IP65 / IP67
Dimensions (W x H x D)
18 mm x 18 mm x 73.3 mm
Design
Cylindrical
Sending axis
Straight
Housing material
Metal, plastic (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin)
Weight
55 g
Thread size
M18 x 1
Connection type
Male connector, M12, 5-pin
Ambient temperature, operation
–25 °C ... +70 °C
Ambient temperature, storage
–40 °C ... +85 °C
ECLASS 5.0
27270804
ECLASS 5.1.4
27270804
ECLASS 6.0
27270804
ECLASS 6.2
27270804
ECLASS 7.0
27270804
ECLASS 8.0
27270804
ECLASS 8.1
27270804
ECLASS 9.0
27270804
ECLASS 10.0
27270804
ECLASS 11.0
27270804
ECLASS 12.0
27272806
ETIM 5.0
EC001846
ETIM 6.0
EC001846
ETIM 7.0
EC001846
ETIM 8.0
EC001846
UNSPSC 16.0901
41111960
