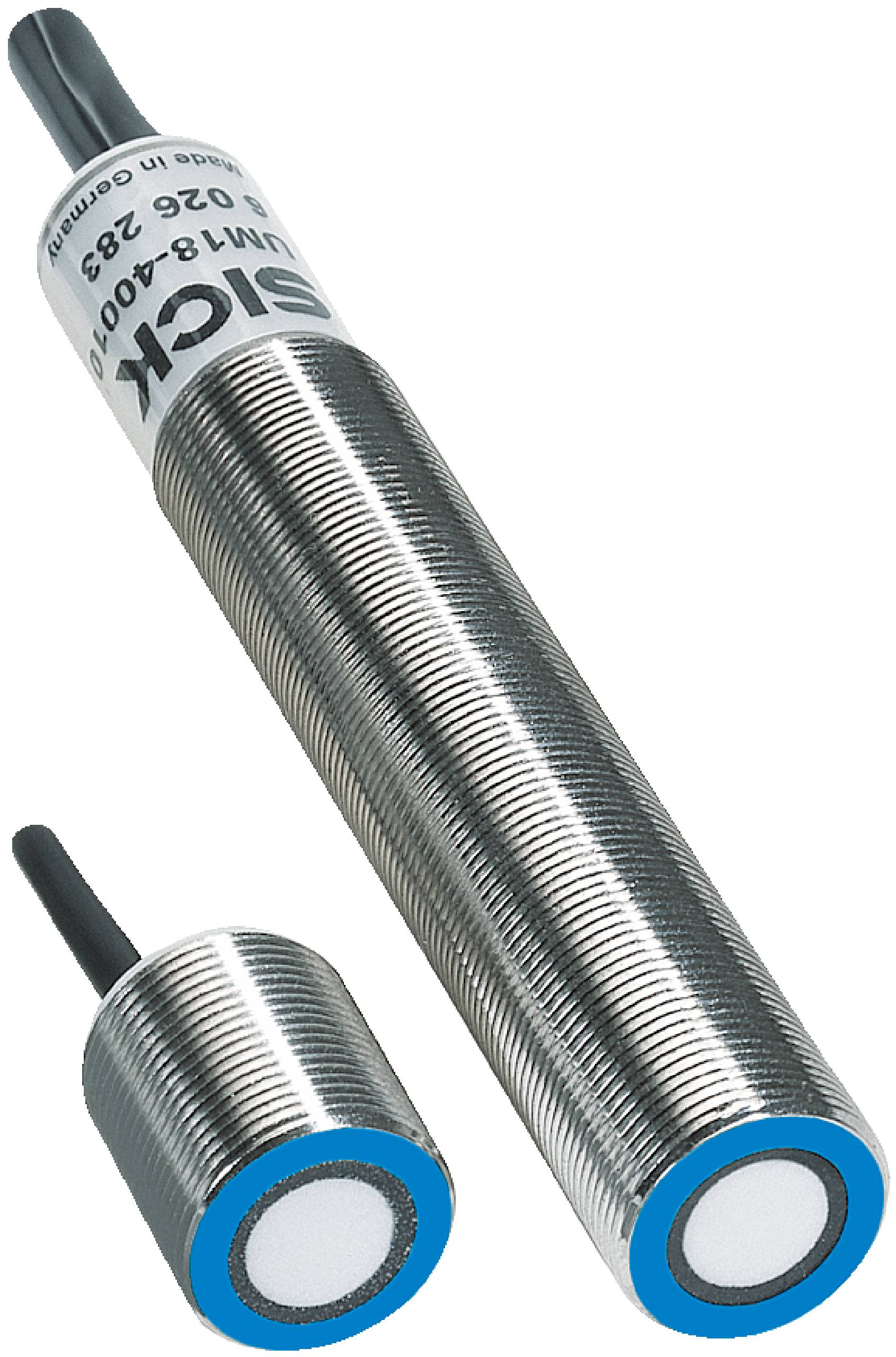

Ultrasonic distance sensors | UM18 Double Sheet Detector | UM18-20012 | Communication interface: - | Connection type: Connection cable: 5-wire, 2 m, PVCSender: cable with connector, 2-pin, 1 m, PVCReceiver: cable with male connector, 2-pin, 1.2 m, PVC | Digital output: 2 x PNP
Installation distance
37 mm ... 43 mm
Target
Natural objects
Resolution
Double sheets not completely glued together
Ultrasonic frequency (typical)
400 kHz
Blind zone
7 mm ... 7 mm (from sender and receiver)
Permissible angle deviation
± 45° perpendicular to sheet
Detectable material
Paper with grammages: 20 g/m² ... 1,200 g/m²Metal-laminated sheets and films: ≤ 0.4 mmSelf-adhesive films, metal sheets: ≤ 0.3 mmCorrugated cardboard: single wall F, N and G flute sizes:1)
Number
21)2)
Type
PNP
Function
Q1: switching output double sheet, Q2: switching output mis-fed sheet, normally closed
Maximum output current IA
≤ 500 mA
Off delay
10 ms
Control input
1 x
Supply voltage UB
DC 20 V ... 30 V1)
Power consumption
≤ 1.35 W2)
Initialization time
< 300 ms
Display
1 x dual LED
Enclosure rating
IP673)
Design
Cylindrical
Weight
280 g1)
Connection type
Connection cable: 5-wire, 2 m, PVCSender: cable with connector, 2-pin, 1 m, PVCReceiver: cable with male connector, 2-pin, 1.2 m, PVC
Ambient temperature, operation
+5 °C ... +60 °C
Ambient temperature, storage
–40 °C ... +85 °C
