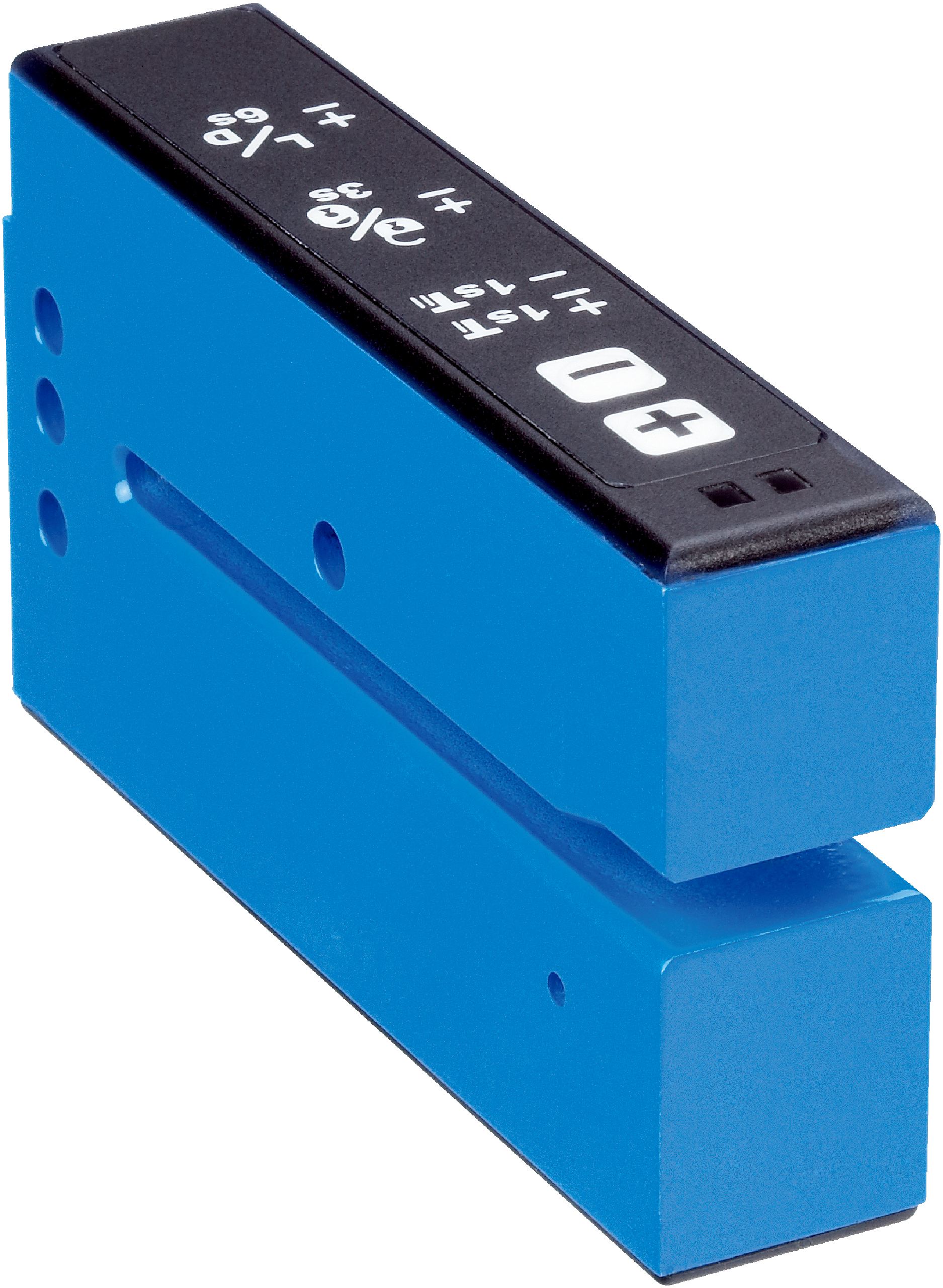

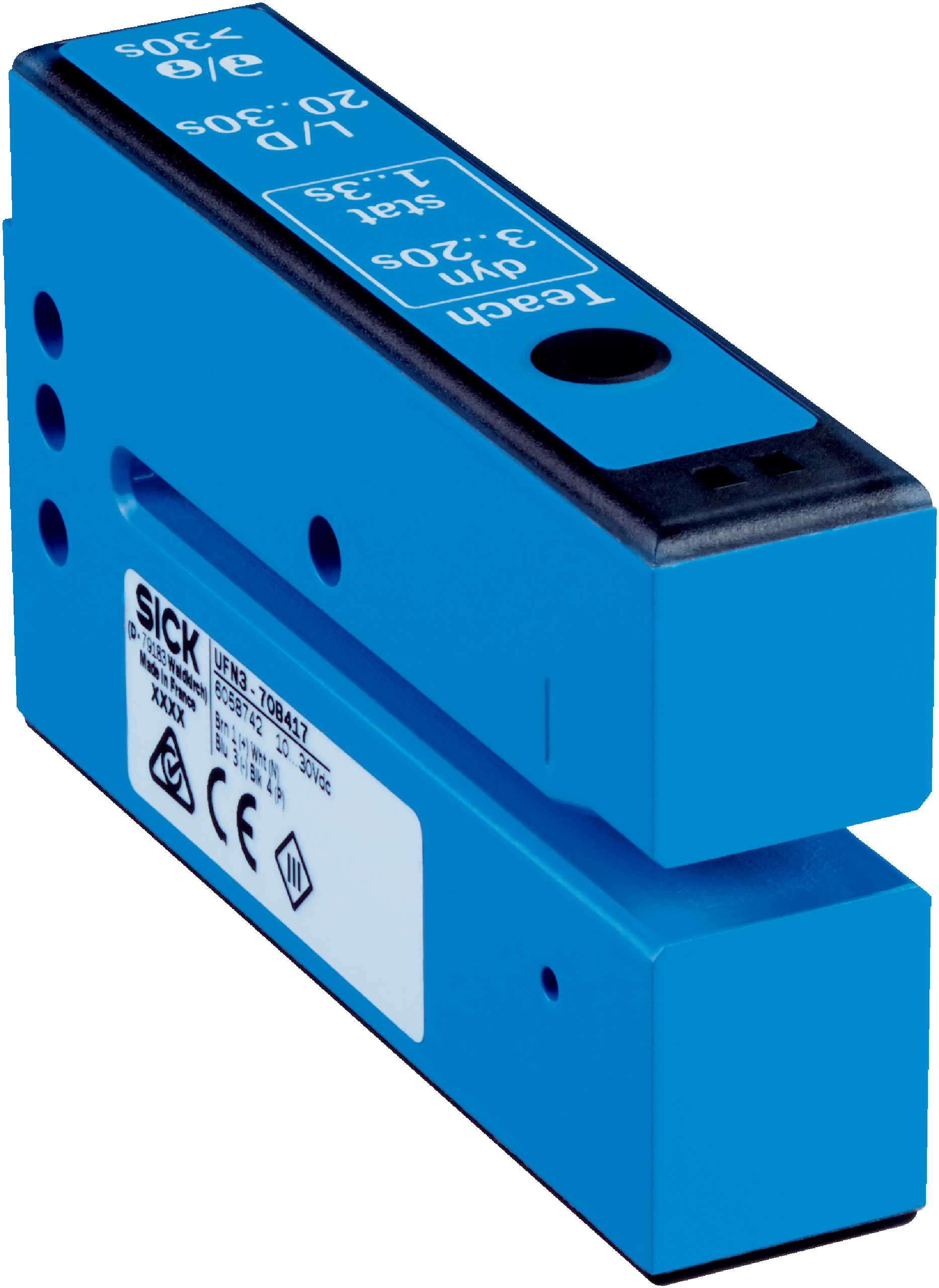

Fork sensors | UF | UFN3-70P417 | Communication interface: - | Adjustment: Teach-in button, cable | Fork width/depth: 3 mm, 69 mm | Switching output: PNP | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Switching frequency: 1.5 kHz | Response time: ≤ 250 µs | Enclosure rating: IP65
Functional principle
Ultrasonic detection principle
Housing design
Fork shaped
Dimensions (W x H x D)
18 mm x 47.5 mm x 92.5 mm
Fork width
3 mm
Fork depth
69 mm
Label detection
✔
Minimum detectable object (MDO)
Gap between Labels / Size of labels: 2 mm1)
Adjustment
Teach-in button, cable (Teach-in, sensitivity, light/dark switching, Teach-in dynamic)
Teach-in mode
1-point teach-in2-point teach-inTeach-in dynamic
MTTFD
207 years
DCavg
0 %
Supply voltage
10 V DC ... 30 V DC1)
Ripple
< 10 %2)
Current consumption
40 mA3)
Initialization time
100 ms
Switching frequency
1.5 kHz4)
Switching output
PNP
Switching output (voltage)
PNP: HIGH = UV≤ 2 V / LOW approx. 0 V
Switching mode
Light/dark switching
Output current Imax.
100 mA5)
Input, teach-in (ET)
Teach: U > 7 V ... < UVRun: U < 2 V
Protection class
III6)
Circuit protection
Output Q short-circuit protectedInterference pulse suppression
Housing material
Aluminum
Weight
95 g
Ambient operating temperature
+5 °C ... +55 °C1)
Ambient temperature, storage
–20 °C ... +70 °C
Shock load
According to EN 60068-2-27
EMC
EN 60947-5-22)
Enclosure rating
IP65
UL File No.
NRKH.E191603 & NRKH7.E191603
