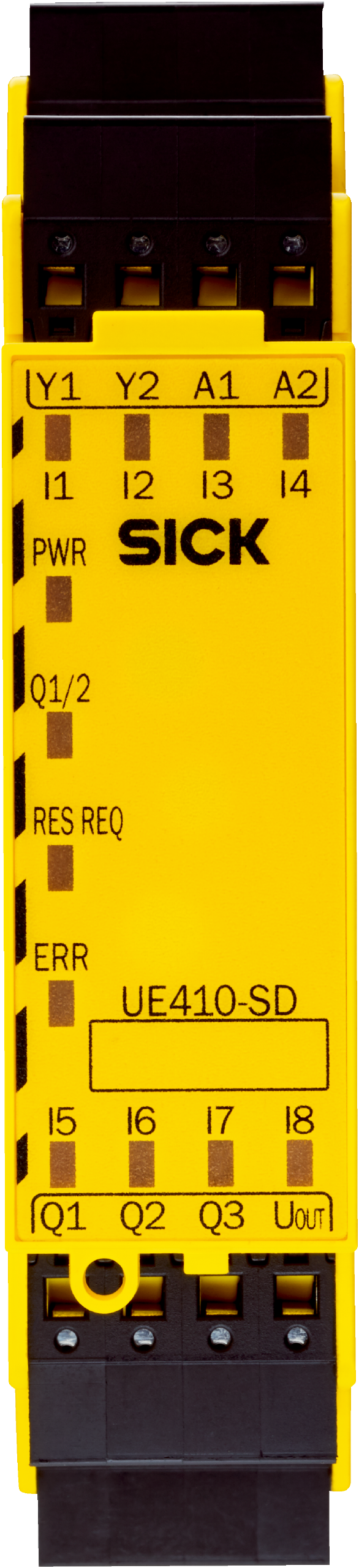

Safety systems | Safeguard Detector | UE410-SD400 | Product scope: Safety controller
Safety task
Natural protection due to the material
Product scope
Safety controller
Note
The UE410-SD safety evaluation module can be operated with one or two MultiPulse sensor pairs. The actuator can be connected directly to the UE410-SD safety evaluation module. The safety chain can also be expanded with additional logic elements (e.g., a higher-level safety controller).
Configuration method
Hard wired
Number of connectable sensor pairs
1 or 2
Connection type
Spring terminals
Pulse rate of the sensors
10 Hz
Supply voltage VS
24 V DC (19.2 V ... 30 V)
Protection class
III (EN 50178)
Enclosure rating
IP20 (EN 60529)
Ambient operating temperature
–25 °C ... 55 °C
Response time of the overall safety system (sensors and safety evaluation module)
≤ 160 ms
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
UK-Type-Examination approval
✔
cULus certificate
✔
cTUVus certificate
✔
EC-Type-Examination approval
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
ECLASS 5.0
27279090
ECLASS 5.1.4
27279090
ECLASS 6.0
27279090
ECLASS 6.2
27279090
ECLASS 7.0
27279090
ECLASS 8.0
27279090
ECLASS 8.1
27279090
ECLASS 9.0
27279090
ECLASS 10.0
27279090
ECLASS 11.0
27279090
ECLASS 12.0
27279090
ETIM 5.0
EC001449
ETIM 6.0
EC001449
ETIM 7.0
EC001449
ETIM 8.0
EC001449
UNSPSC 16.0901
32151705
