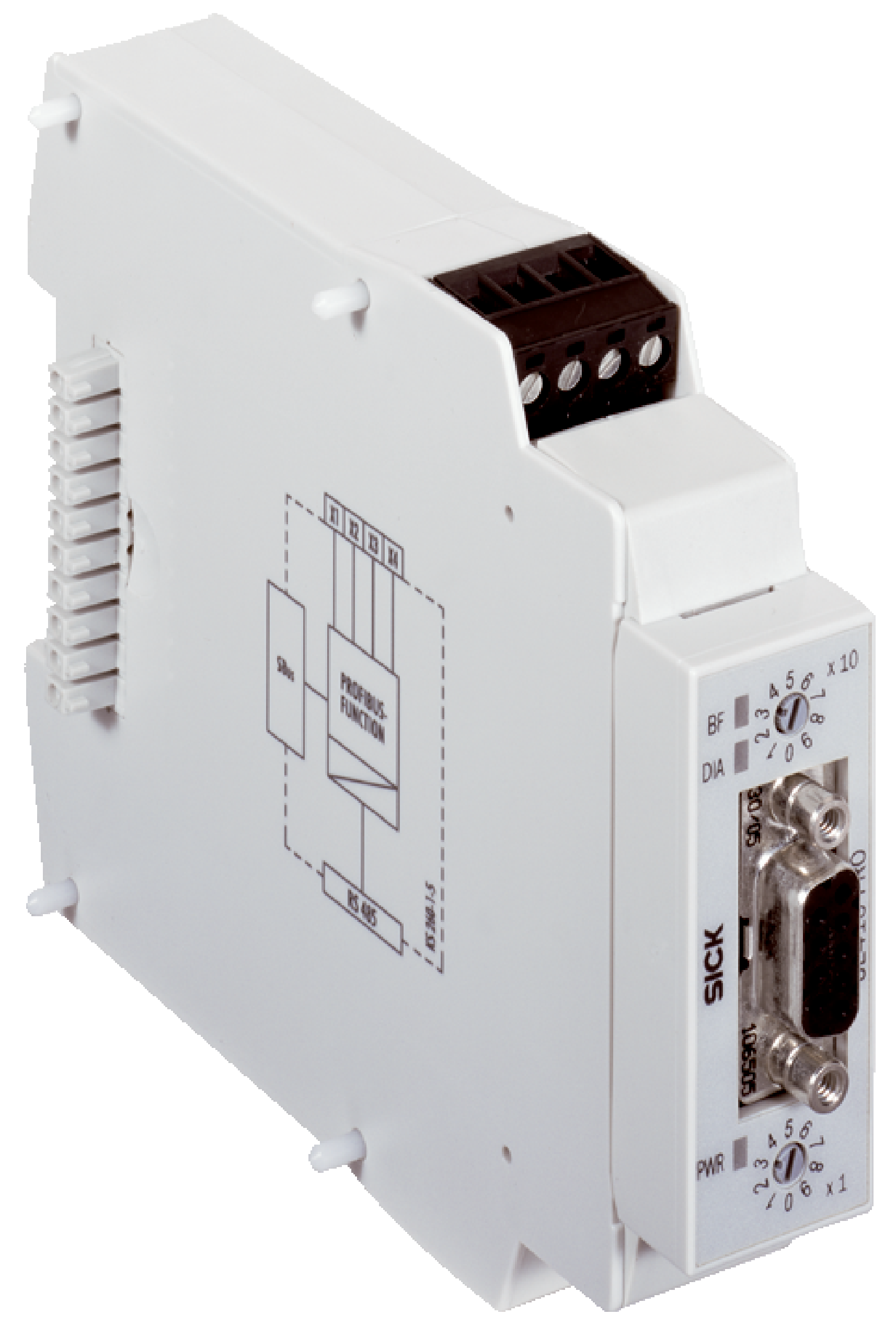

Safety controllers | Flexi Classic | UE410-PRO4 | Module: Gateway | Specialization: Fieldbus integration | Fieldbus, industrial network: PROFIBUS DP | Connection type: 1 x female connector, D-Sub, 9-pin | Number of application diagnostic outputs: 4 | Application diagnostic output connection type8: Plug-in spring terminals | Protective coating for more challenging ambient conditions: no
Module
Gateway
Configuration method
Via rotary switch
Connection type
1 x female connector, D-Sub, 9-pin
Baud rate
≤ 12 MBaud
Data transmission rate
12,000 kbit/s
Application diagnostic outputs
4 (X1 – X4)
Application diagnostic output connection type8
Plug-in spring terminals
Display elements
LEDs
Fieldbus, industrial network
PROFIBUS DP
Protection class
III (EN 61140)
Voltage supply
Via FLEXBUS
Power consumption
≤ 1.6 W (DC)
Internal power consumption
≤ 1.6 W (DC)
Dimensions (W x H x D)
22.5 mm x 96.5 mm x 120.8 mm
Poids
+ 160 g
Housing
IP40 (EN 60529)
Terminals
IP20 (EN 60529)
Ambient operating temperature
–25 °C ... +55 °C
Storage temperature
–25 °C ... +70 °C
Air humidity
≤ 95 %, Non-condensing
Climate conditions according to
EN 61131-2 (55 °C ambient operating temperature, 95% rel. humidity)
Electromagnetic compatibility (EMC)
Class A (EN 61000-6-2, EN 55011)
Vibration resistance
5 g RMS, 5 Hz ... 500 Hz (EN 60068-2-64)
ECLASS 5.0
27243001
ECLASS 5.1.4
27243101
ECLASS 6.0
27243101
ECLASS 6.2
27243101
ECLASS 7.0
27243101
ECLASS 8.0
27243101
ECLASS 8.1
27243101
ECLASS 9.0
27243101
ECLASS 10.0
27243101
ECLASS 11.0
27243101
ECLASS 12.0
27243101
ETIM 5.0
EC001449
ETIM 6.0
EC001449
ETIM 7.0
EC001449
ETIM 8.0
EC001449
UNSPSC 16.0901
32151705
