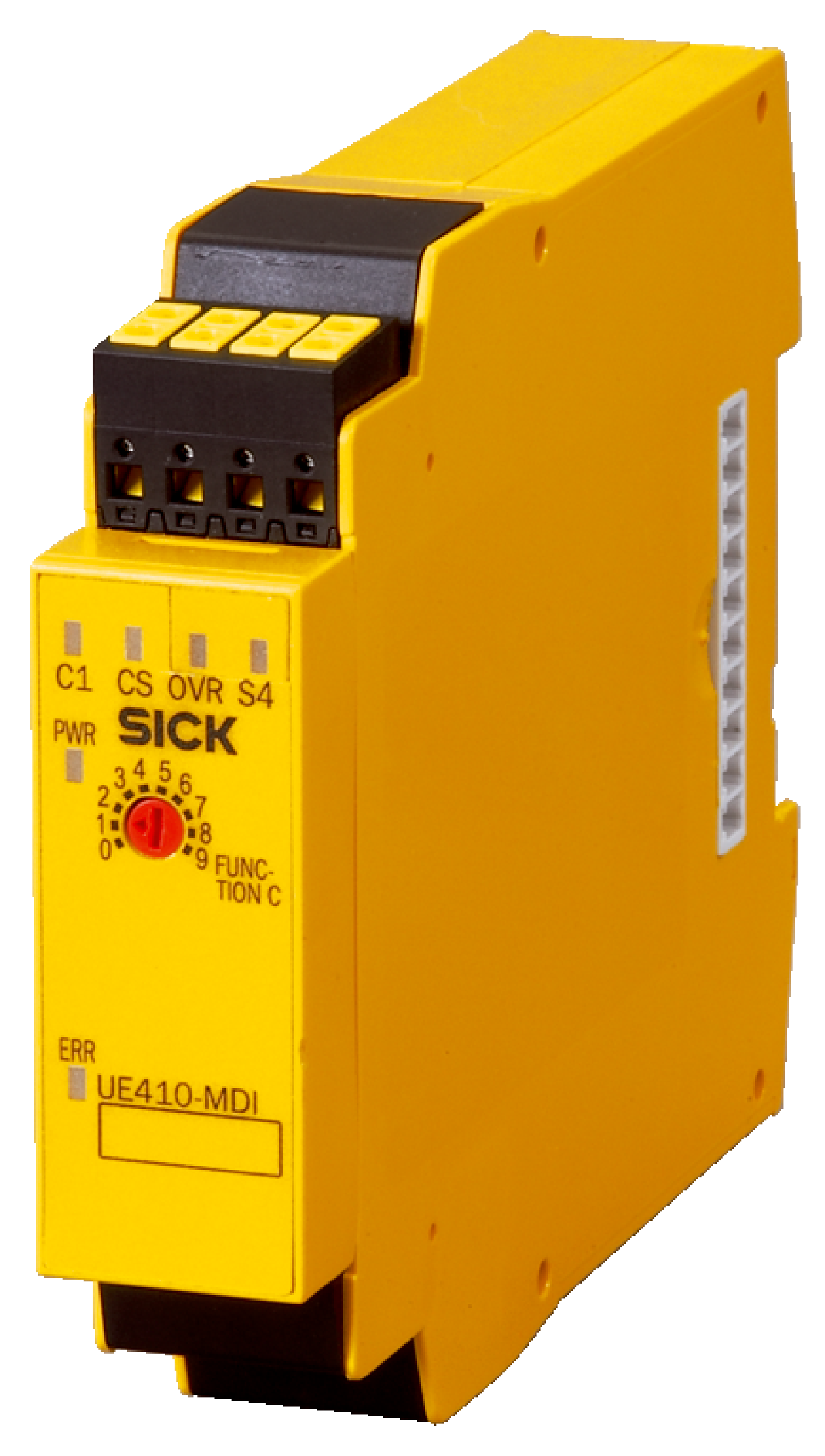

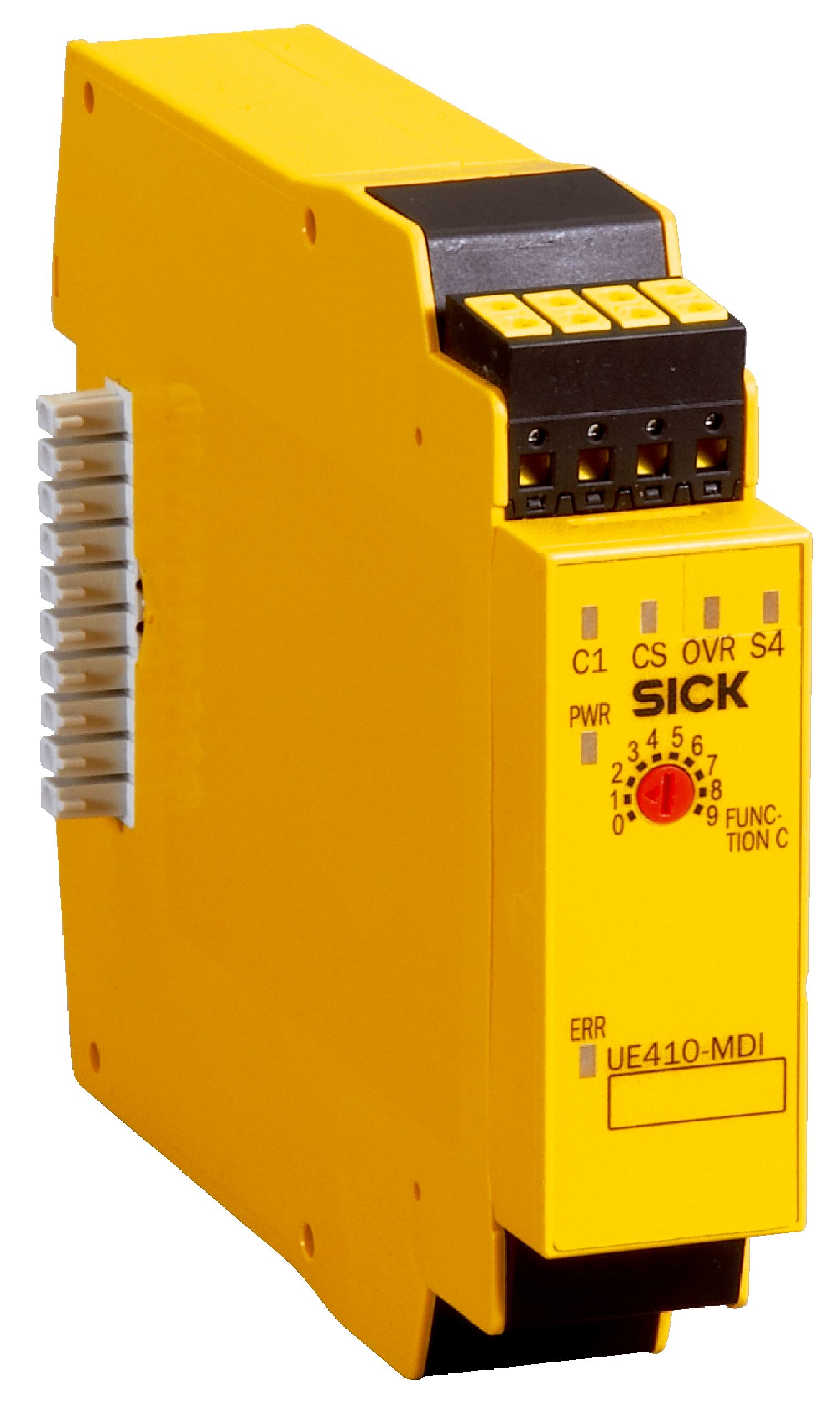

Safety controllers | Flexi Classic | UE410-MDI4 | Module: I/O module | Specialization: Muting experts | Inputs: 3 switching inputs | Connection type: Plug-in spring terminals | Protective coating for more challenging ambient conditions: no
Module
I/O module
Configuration method
Via rotary switch
Safety integrity level
SIL 3 (IEC 61508)
Category
Category 4 (EN ISO 13849)
Performance level
PL e (EN ISO 13849)
PFHD(mean probability of a dangerous failure per hour)
2.5 x 10-9(EN ISO 13849)
TM(mission time)
20 years (EN ISO 13849)
Differentiation between man and material (muting)
✔
Override
✔
Belt stop signal
✔
Additional muting signal
✔
Inputs
3 switching inputs
Connection type
Plug-in spring terminals
Display elements
LEDs
Protection class
III (EN 61140)
Voltage supply
Via FLEXBUS
Power consumption
≤ 1.8 W (DC)
Internal power consumption
≤ 1.8 W (DC)
Dimensions (W x H x D)
22.5 mm x 96.5 mm x 120.8 mm
Weight
150 g
Housing
IP40 (EN 60529)
Terminals
IP20 (EN 60529)
Ambient operating temperature
–25 °C ... +55 °C
Storage temperature
–25 °C ... +70 °C
Air humidity
≤ 95 %, Non-condensing
Climate conditions according to
EN 61131-2 (55 °C ambient operating temperature, 95% rel. humidity)
Electromagnetic compatibility (EMC)
Class A (EN 61000-6-2, EN 55011)
Vibration resistance
5 g RMS, 5 Hz ... 500 Hz (EN 60068-2-64)
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
CCC certificate
✔
UK-Type-Examination approval
✔
cULus certificate
✔
cTUVus certificate
✔
EC-Type-Examination approval
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
ECLASS 5.1.4
27243001
ECLASS 6.0
27243101
ECLASS 7.0
27243101
ECLASS 8.0
27243101
ECLASS 9.0
27243101
ECLASS 10.0
27243101
ECLASS 11.0
27243101
ECLASS 12.0
27243101
ECLASS 13.0
27243101
ECLASS 14.0
27243101
ECLASS 15.0
27243101
ETIM 6.0
EC000474
ETIM 7.0
EC000474
ETIM 8.0
EC000474
ETIM 9.0
EC000474
ETIM 10.0
EC000474
UNSPSC 091201.0
32151705
UNSPSC 100501.0
32151705
UNSPSC 111201.0
32151705
UNSPSC 120901.0
32151705
UNSPSC 131201.0
32151705
UNSPSC 140801.0
32151705
UNSPSC 151101.0
32151705
UNSPSC 160901.0
32151705
UNSPSC 171001.0
32151705
UNSPSC 180801.0
32151705
UNSPSC 190501.0
32151705
UNSPSC 200601.0
32151705
UNSPSC 210901.0
32151705
UNSPSC 220601.0
32151705
UNSPSC 230701.0
32151705
UNSPSC 240301.0
32151705
UNSPSC 250901.0
32151705
UNSPSC 260801.0
32151705
