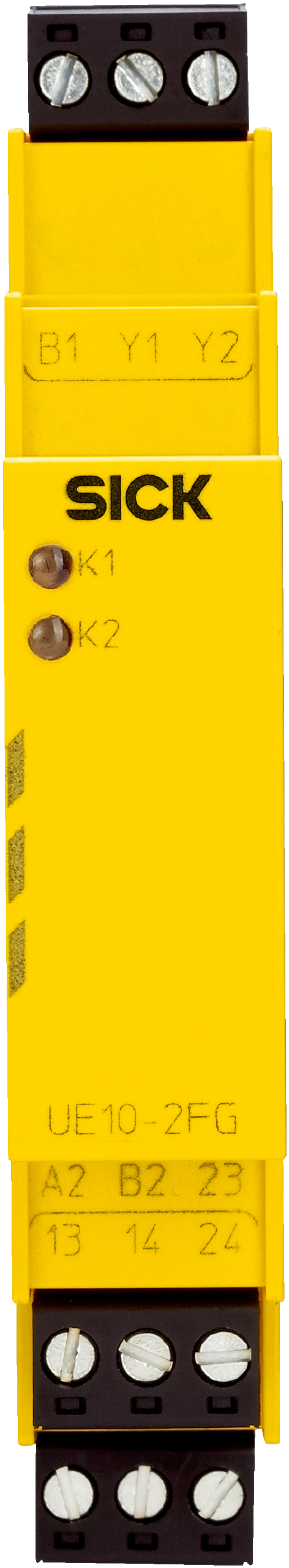

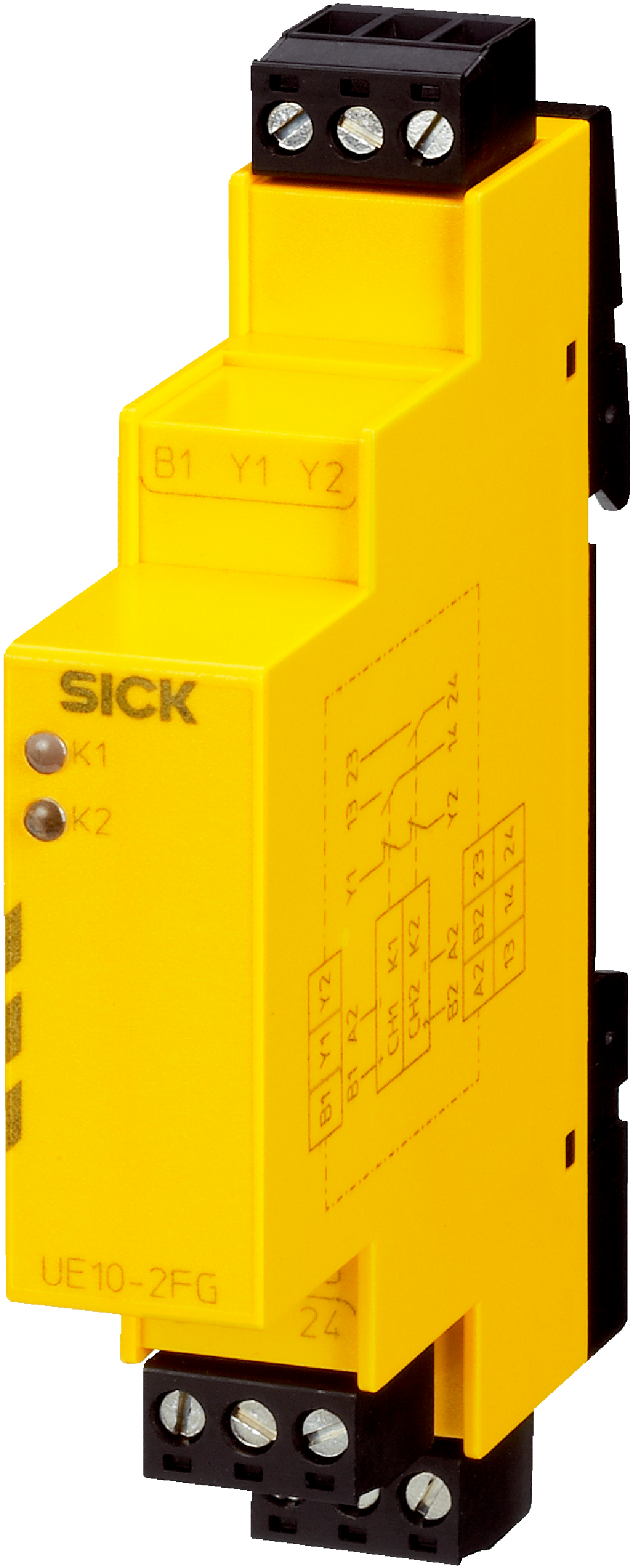

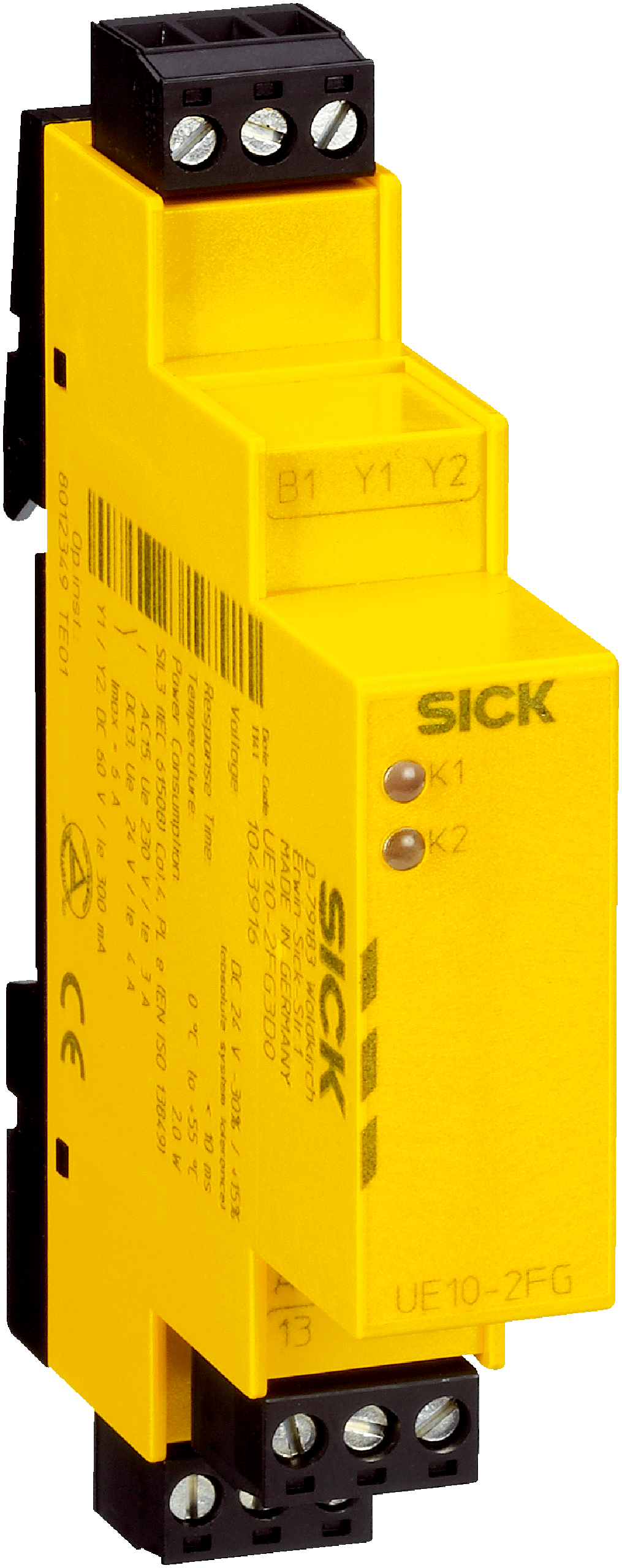

Safety relays | UE10-2FG | UE10-2FG3D0 | Applications: Output expansion module for OSSDs | Compatible sensor types: Opto-electronic protective devices | External device monitoring (EDM): Via path | Number of enable current contacts: 2 | Housing width: 17.8 mm
Safety integrity level
SIL 3 (IEC 61508)1)
Category
Category 4 (EN ISO 13849)1)
Performance level
PL e (EN ISO 13849)1)
B10dparameter
1 x 105switching cycles (AC-15, 230 V, I = 2 A)2.5 x 105switching cycles (AC-15, 230 V, I = 1 A)5.4 x 105switching cycles (DC-13, 24 V, I = 0.5 A)1 x 107switching cycles (DC-13, 24 V, I ≤ 2 A)
PFHD(mean probability of a dangerous failure per hour)
7.0 x 10-10(EN ISO 13849)
TM(mission time)
20 years (EN ISO 13849)
Voltage supply
B1/A2, B2/A2
Output circuit ≤ 25 V AC / 60 V DC
PELV or SELV
Residual ripple
(≤ 2.4 Vpp)1)
Power consumption
(≤ 2 W (DC))
Overvoltage category
II
Rated insulation voltage Ui
300 V AC
Rated impulse withstand voltage Uimp
4 kV
Test voltage
1.2 kV (50 Hz) (EN 60439-1)
Input voltage
24 V DC (16.8 V DC ... 27.6 V DC)
Input current
≤ 50 mA
Reset time
≤ 30 ms
Test pulse width
≤ 1 ms
Response time
(≤ 10 ms)
Number of enabling current paths (N/O)
2, relevant for safety
Number of feedback current paths (normally closed)
1, external device monitoring (EDM)
Contact type
Positively driven
Contact material
Silver alloy, gold flashed
Enabling current path
10 mA ... 6 A
Feedback current path
1 mA ... 300 mA
Switching capacity
≤ 1,500 VA (AC)
Usage category
AC-15/DC-13 (EN 60947-5-1)
Rated operating current (voltage)
3 A (230 V AC)4 A (24 V DC)
Mechanical life (relay contacts)
1 x 107switching cycles
Electrical life (relay contacts)
1 x 105switching cycles
Dimensions (W x H x D)
17.8 mm x 105.5 mm x 70.8 mm
Contamination rating
3 (EN 50178)
Weight
+ 91 g
