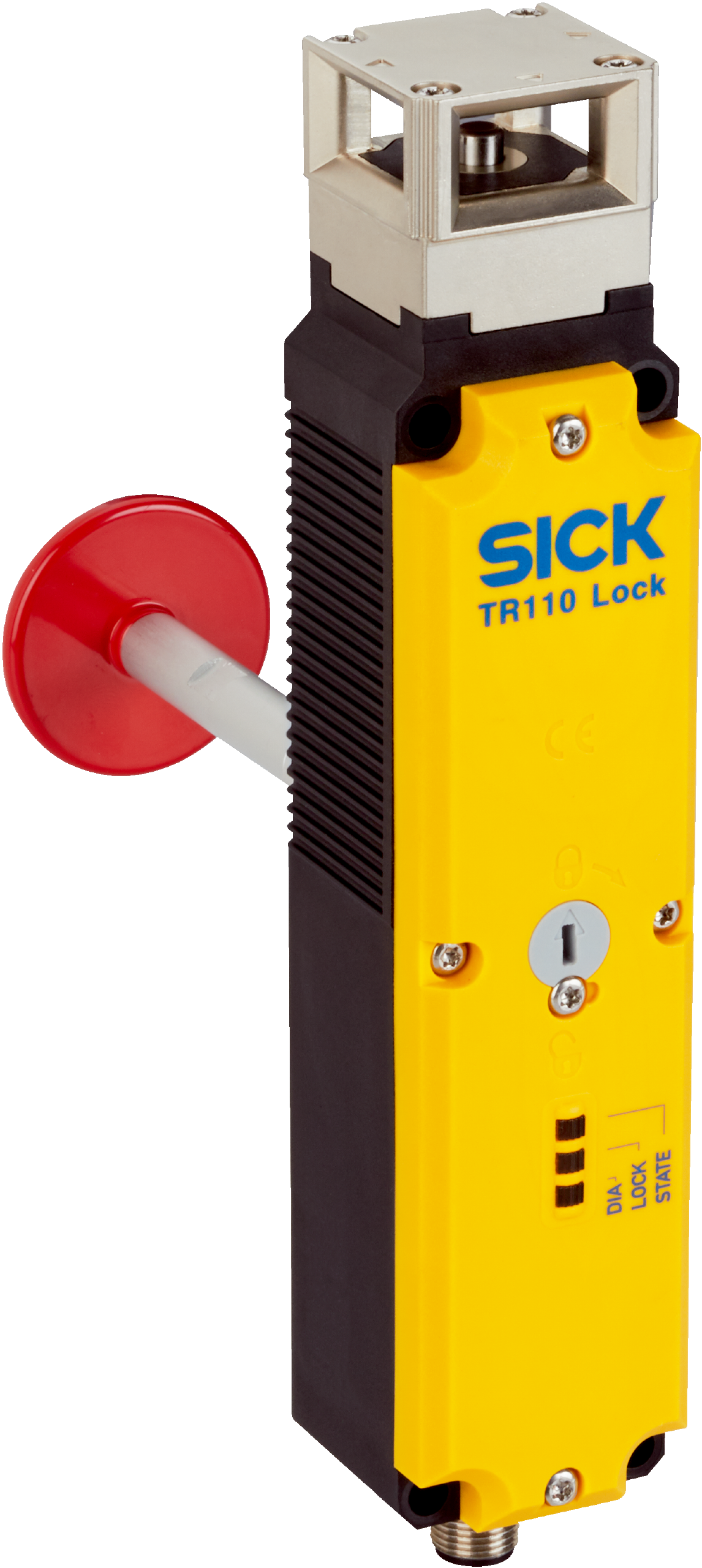

Safety switches | TR110 Lock | TR110-SRUFLB1 | Locking principle: Power to release | Connection type Detail: Plug connector, M12, 8-pin | Safe series connection: With Flexi Loop (with diagnostics) | Escape release: yes | Pushbuttons: no
Sensor principle
RFID
Coding
Uniquely coded
With straight actuator
3,000 N (EN ISO 14119)
With angled actuator
1,100 N (EN ISO 14119)
With hinged actuator
2,000 N (EN ISO 14119)
Actuation force
≥ 10 N
Retaining force
20 N
Force against which unlocking is possible
≤ 20 N
Actuation frequency
≤ 0.5 Hz
Approach speed
≤ 20 m/min
Items supplied
Including extension of escape release
Safety integrity level
SIL 3 (IEC 61508)
Category
Category 4 (EN ISO 13849)1)
Performance level
PL e (EN ISO 13849)1)
PFHD(mean probability of a dangerous failure per hour)
5.38 x 10-91)
TM(mission time)
20 years (EN ISO 13849)
Type
Type 4 (EN ISO 14119)
Actuator coding level
High coding level (EN ISO 14119)
Safe state in the event of a fault
At least one safety-related semiconductor output (OSSD) is in the OFF state.
Escape release
✔
Switching behavior of the OSSDs
Locking monitoring
Safe series connection
With Flexi Loop (with diagnostics)
Connection type
Plug connector, M12, 8-pin
Coupling nut material
Brass
Display elements
LEDs
Diagnostics indicator
✔
Status display
✔
Protection class
III (IEC 61140)
Contamination rating
3 (EN 60947-1)
Classification according to cULus
Class 2
Usage category
DC-13 (IEC 60947-5-1)
Rated operating current (voltage)
150 mA (24 V DC)1)
Rated insulation voltage Ui
50 V
Rated impulse withstand voltage Uimp
500 V
Sensor
40 mA
Magnet
400 mA
Type of output
Self-monitoring semiconductor outputs (OSSDs)
Safety outputs
1 mA ... 150 mA
Application diagnostic outputs
1 mA ... 50 mA
Power consumption of magnet
6 W
Switch-on time of magnet
100 %
Response time
≤ 260 ms2)
Release time
150 ms
Switch-on time
5 s
Discrepancy time
10 ms (EN IEC 60947-5-3)
Locking principle
Power to release
Weight
0.42 kg
Switch head
Zinc diecast
Housing
Glass-fiber reinforced thermoplastic
Plug connectors
Nickel-plated brass
Mechanical life
1 x 106switching cycles
Enclosure rating
IP67 (EN 60529)IP69K
Ambient operating temperature
–20 °C ... +55 °C
Vibration resistance
10 Hz ... 55 Hz (IEC 60068-2-6)
Shock resistance
30 g, 11 ms (EN 60068-2-27)
EMC
EN IEC 60947-5-3
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
ECLASS 5.1.4
27272603
ECLASS 6.0
27272603
ECLASS 7.0
27272603
ECLASS 8.0
27272603
ECLASS 9.0
27272603
ECLASS 10.0
27272603
ECLASS 11.0
27272603
ECLASS 12.0
27272603
ECLASS 13.0
27272603
ECLASS 14.0
27272603
ECLASS 15.0
27272603
ETIM 6.0
EC002593
ETIM 7.0
EC002593
ETIM 8.0
EC002593
ETIM 9.0
EC002593
ETIM 10.0
EC002593
UNSPSC 091201.0
39121500
UNSPSC 100501.0
39121500
UNSPSC 111201.0
39121500
UNSPSC 120901.0
39121500
UNSPSC 131201.0
39122205
UNSPSC 140801.0
39122205
UNSPSC 151101.0
39122205
UNSPSC 160901.0
39122205
UNSPSC 171001.0
39122205
UNSPSC 180801.0
39122205
UNSPSC 190501.0
39122205
UNSPSC 200601.0
39122205
UNSPSC 210901.0
39122205
UNSPSC 220601.0
39122205
UNSPSC 230701.0
39122205
UNSPSC 240301.0
39122205
UNSPSC 250901.0
39122205
UNSPSC 260801.0
39122205
