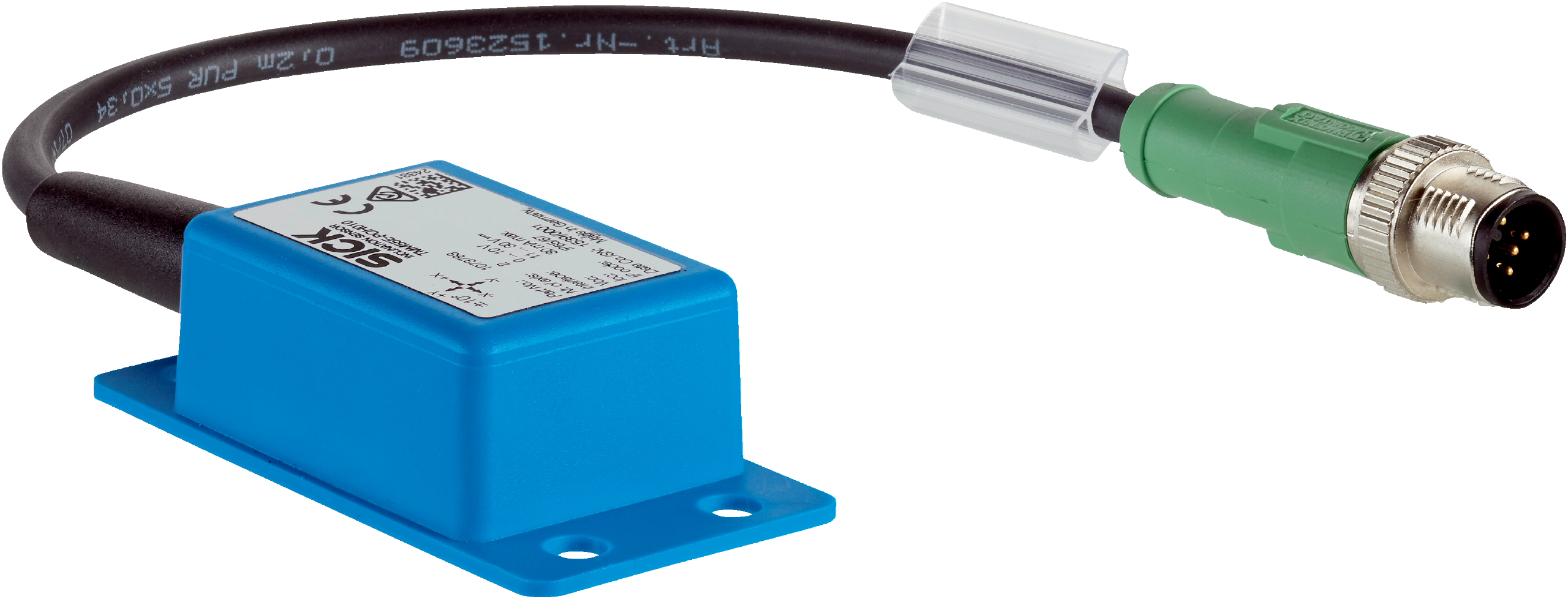

Inertial sensors | TMM55 | TMM55E-POH060 | Number of axis: 2 | Measuring range: ± 60° | Resolution: 0.06° | Communication interface: Analog / Voltage | Voltage output: 0 V ... 10 V | Programmable/configurable: no | Housing material: Plastic (ABS) | Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 0.2 m
MTTFD(mean time to dangerous failure)
290 years (EN ISO 13849-1)1)
Number of axis
2
Measuring range
± 60°
Resolution
0.06°
Static measurement accuracy
± 0.5°
Compensated cross-sensitivity (2-dimensional)
Typ. ± 1.2°, max. ± 2.4°
Temperature coefficient (zero point)
Max. ± 0.009°/K
Limit frequency
18 Hz
Sampling rate
1.95 kHz
Communication interface
Analog / Voltage
Voltage output
0 V ... 10 V
Load resistance
≤ 930 Ω
Initialization time
75 ms
Connection type
Cable, 5-wire, with male connector, M12, 5-pin, 0.2 m
Supply voltage
11 V DC ... 30 V DC
Current consumption
15 … 25 mA
Reverse polarity protection
✔
Short-circuit protection of the outputs
✔
Dimensions
65 mm x 35 mm x 20 mm
Weight
55 g (with cable)
Housing material
Plastic (ABS)
Material, cable
PUR
EMC
EN 61326-1, EN ISO 14982, EN ISO 13309
Enclosure rating
IP65 (IEC 60529)IP67 (IEC 60529)
Operating temperature range
–40 °C ... +80 °C
Storage temperature range
–40 °C ... +85 °C
Resistance to shocks
100 g, 6 ms (EN 60068-2-27)
Resistance to vibration
10 g, 10 Hz ... 2,000 Hz (EN 60068-2-6)
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
ECLASS 5.0
27270790
ECLASS 5.1.4
27270790
ECLASS 6.0
27270790
ECLASS 6.2
27270790
ECLASS 7.0
27270790
ECLASS 8.0
27270790
ECLASS 8.1
27270790
ECLASS 9.0
27270790
ECLASS 10.0
27271101
ECLASS 11.0
27271101
ECLASS 12.0
27271101
ETIM 5.0
EC001852
ETIM 6.0
EC001852
ETIM 7.0
EC001852
ETIM 8.0
EC001852
UNSPSC 16.0901
41111613
