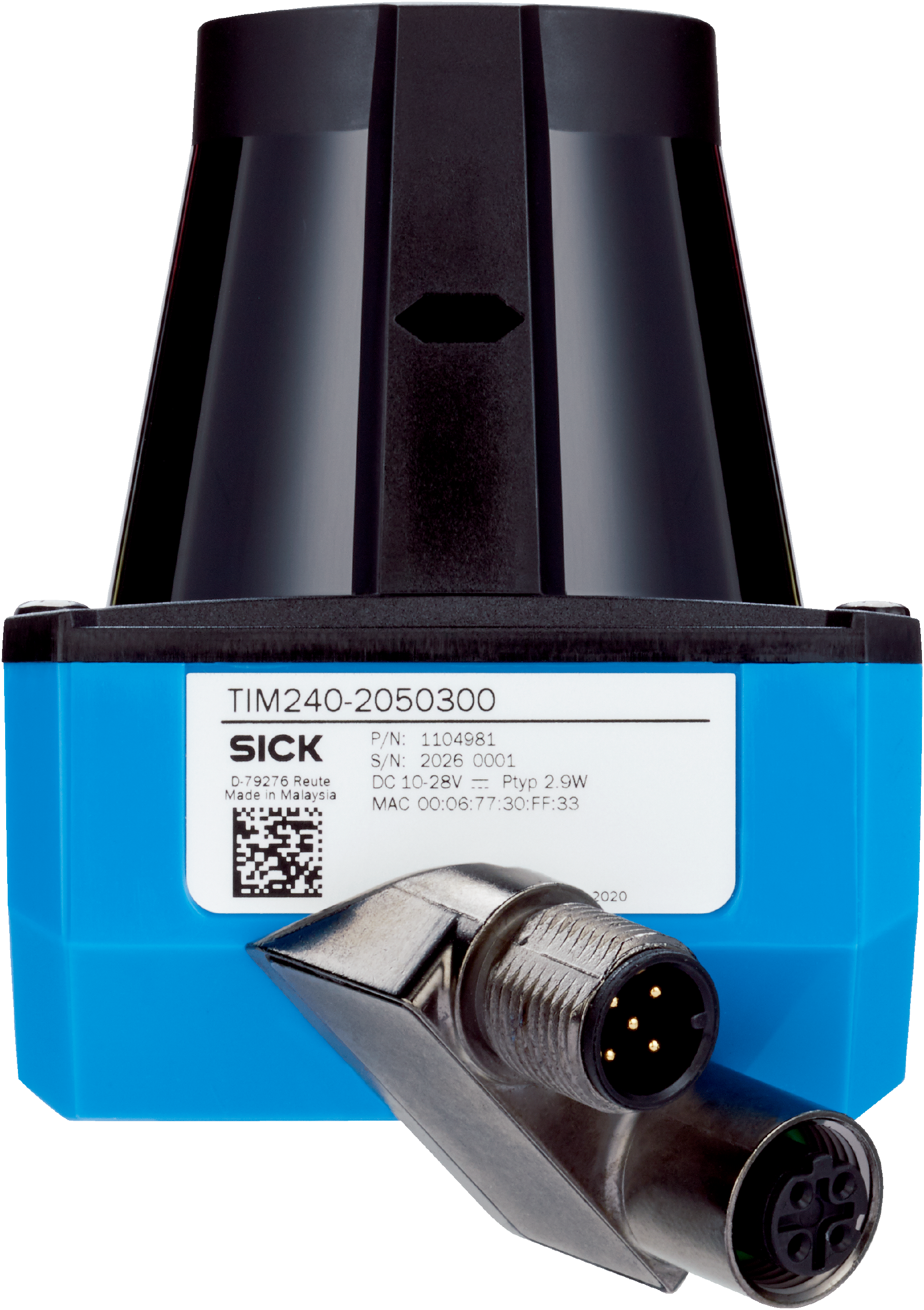

LiDAR sensors | TiM | TiM240-2050300 | Integrated application: Output of measurement data | Measurement principle: HDDM+ | Working range: 0.05 m ... 10 m | Enclosure rating: IP65 | Digital outputs: 1 (Push-pull, "Device Ready") | Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power”, 5-pin, M12 male connector
Application
Indoor
Measurement principle
HDDM+
Light source
Infrared (850 nm)
Laser class
1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
Scanning frequency
14.5 Hz
Horizontal
1°
Working range
0.05 m ... 10 m
At 10% remission factor
2.8 m ... 3 m, depending on the angle
Connection type
1 x “Ethernet” connection, 4-pin M12 female connector1 x connection “Power”, 5-pin, M12 male connector
Supply voltage
10 V DC ... 28 V DC
Power consumption
Typ. 2.9 W
Output current
≤ 100 mA
Housing color
Light blue (RAL 5012)
Enclosure rating
IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013)
Protection class
III (IEC 61140:2016-1)
Weight
150 g, without connecting cables
Dimensions (L x W x H)
60 mm x 60 mm x 75.8 mm
MTBF
50 years
MTTFD
> 100 years
Response time
Typ. 70 ms
Detectable object shape
Almost any
Systematic error
± 40 mm1)
Statistical error
30 mm1)
Integrated application
Output of measurement data
Ethernet
✔ , TCP/IP
Inputs
0
Outputs
1 (Push-pull, "Device Ready")
Optical indicators
2 LEDs ("device ready")
Remission factor
4 % ... 1,000 % (reflectors)
Electromagnetic compatibility (EMC)
IEC 61000-6-3:2006+AMD1:2010 / IEC 61000-6-2:2005
Sine resonance scan
10 Hz ... 1,000 Hz1)
Sine test
10 Hz ... 500 Hz, 5 g, 10 frequency cycles1)
Noise test
5 Hz ... 250 Hz, 4.24 g RMS, 5 h2)
Shock resistance
25 g, 6 ms, ± 1,000 continuous shocks/axis3)50 g, 3 ms, ± 5,000 continuous shocks/axis3)50 g, 3 ms, ± 3 single shocks/axis3)
Ambient operating temperature
–10 °C ... +50 °C
Storage temperature
–30 °C ... +70 °C
Ambient light immunity
30,000 lx
Note on use
The sensor does not constitute a safety component as defined by relevant legislation on machine safety.
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
cTUVus certificate
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
ECLASS 5.0
27270990
ECLASS 5.1.4
27270990
ECLASS 6.0
27270913
ECLASS 6.2
27270913
ECLASS 7.0
27270913
ECLASS 8.0
27270913
ECLASS 8.1
27270913
ECLASS 9.0
27270913
ECLASS 10.0
27270913
ECLASS 11.0
27270913
ECLASS 12.0
27270913
ETIM 5.0
EC002550
ETIM 6.0
EC002550
ETIM 7.0
EC002550
ETIM 8.0
EC002550
UNSPSC 16.0901
41111615
