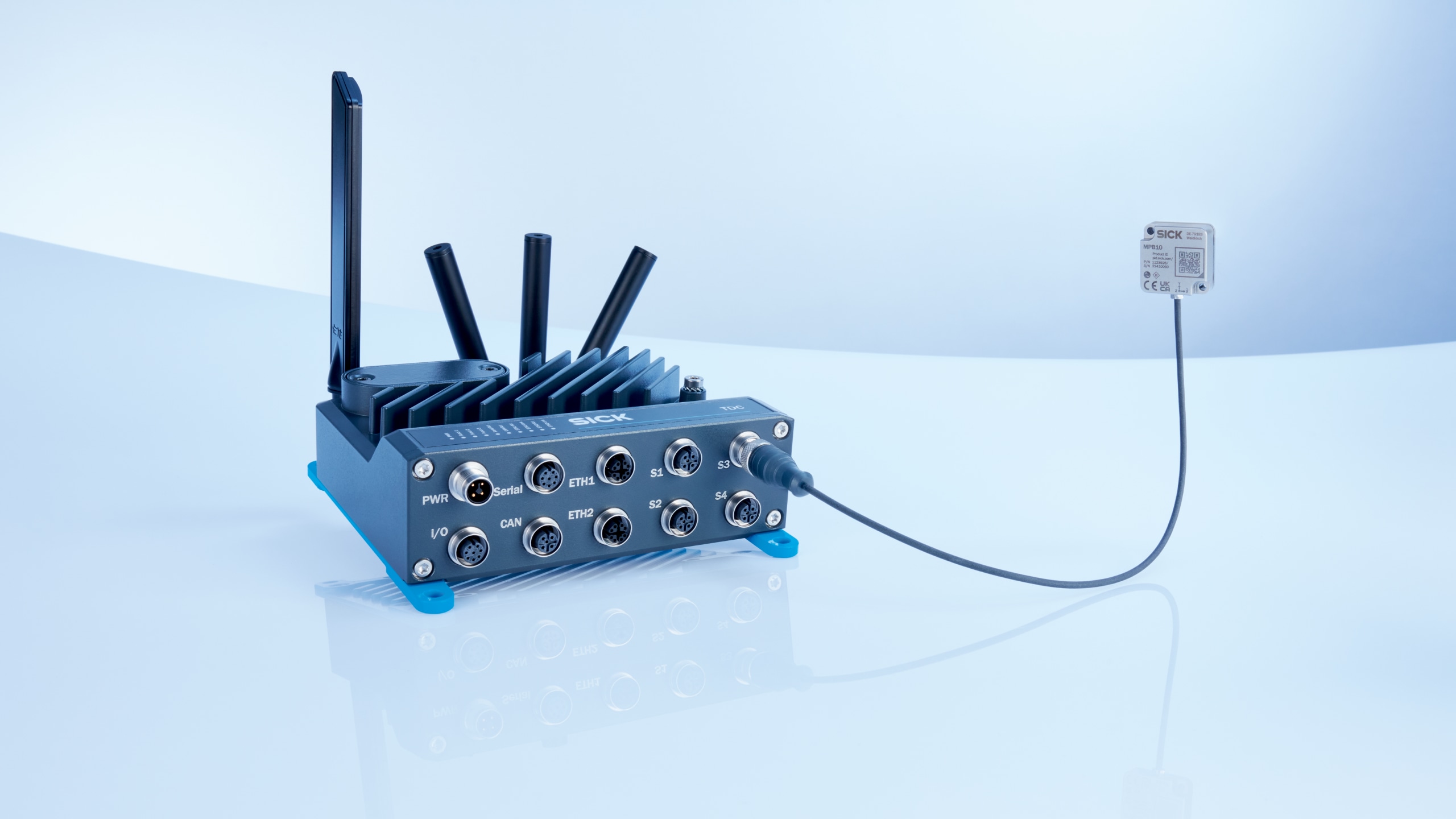

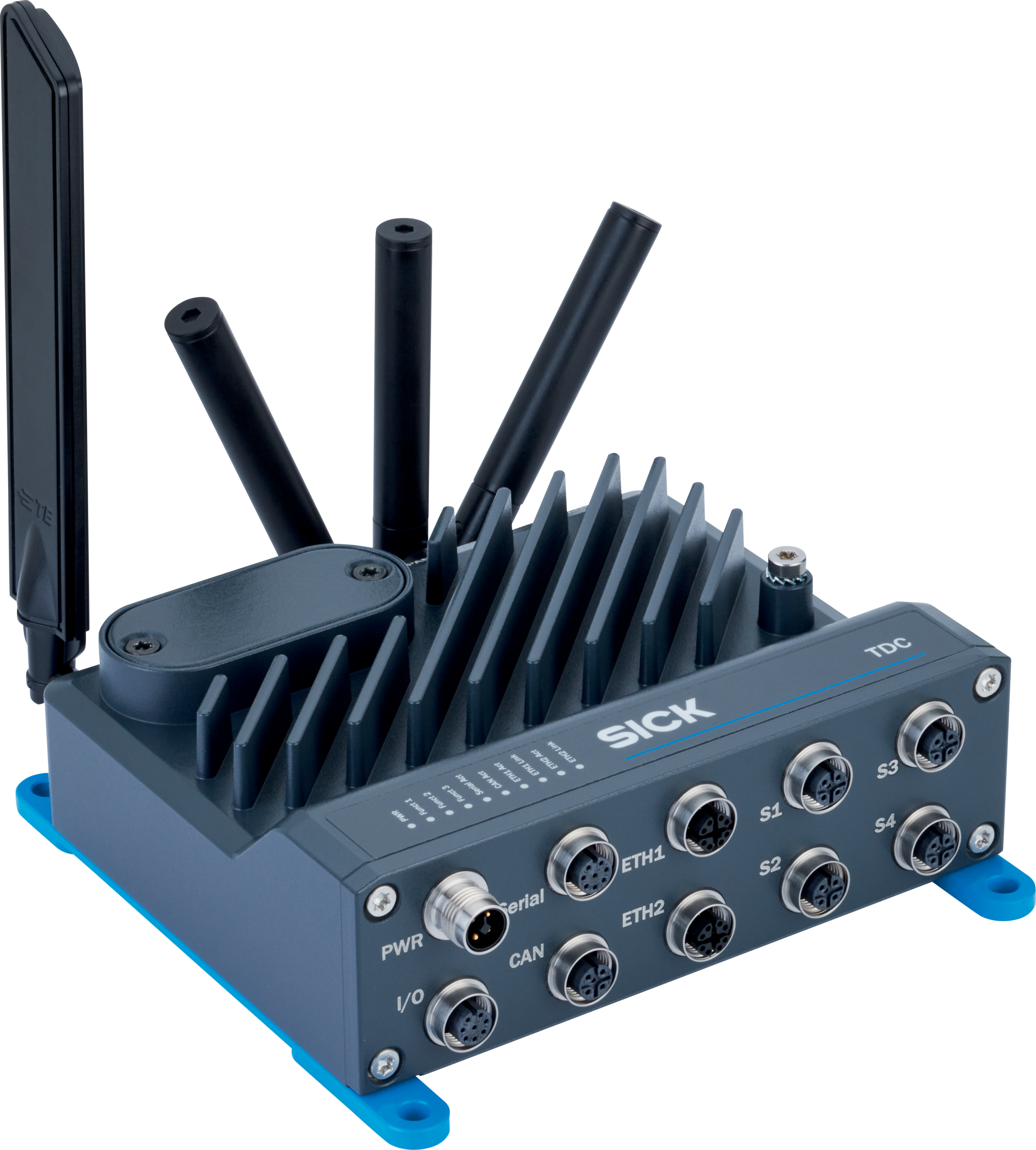

Edge computing devices | Telematic Data Collector | TDC-X401GL | Operating system: Linux | Interfaces: Digital inputs/outputs | Connectivity: Mobile communication (4G / 5G), WLAN, WPAN, LAN | Network coverage: Europe and EEA, United Kingdom, USA, Canada, Japan, Australia, Singapore, Chile | Items supplied: TDC-X401GL with mobile communication (without data flow) including 4 port IO-Link master
Product category
Programmable wireless machine
Installed application
Programmable base device
Supply voltage
9 V DC ... 32 V DC
Power consumption
Typ. 10 W, max. 75 W
Housing dimensions (W x D x H)
160 mm x 160 mm x 55 mm
Weight
1,180 g
Housing material
Aluminum
Housing color
Anthracite gray (RAL 7016) / Light blue (RAL 5012)
Enclosure rating
IP65 / IP67 (according to DIN EN 60529)Ed2.2:2013/COR1:2019
Protection class
III (IEC 62471-1 2007)
Sensor
IMU (3-axis accelerometer and 3-axis gyroscope)3-axis magnetometer2x temperature sensor
Internal computer
4GB LP-DDR4, i.MX8 quad-core Arm® Cortex®-A53 1600 MHz with Arm® Cortex®-M7 800 MHz real-time co-processor
Internal memory
32 GB
Operating system
Linux
Ecosystem
Docker
User interface
Control center / HAL Service
Data protocol
MQTTREST APIWebSocket
Data format
JSON
Connectivity
Mobile communication (4G / 5G)WLANWPANLAN
Mobile network
Global coverageLTE:B1/2/3/4/5/7/8/12/13/14/18/19/20/25/26/28/66/71/38/39/40/41WCDMA: B1/2/4/5/6/8/19
Region of use
Europe and EEA, United Kingdom, USA, Canada, Japan, Australia, Singapore, Chile
Ethernet
✔ (2)
CAN bus
✔
Serial
✔
IO-Link
✔ (4)
Connection type
A
Data transmission
COM1, COM2, COM3
USB
✔
GNSS
✔
Electrical connection
SMA
Modem
✔
WLAN
✔
Data transmission rate
Up to 1.2 Gbit/s (5 GHz), dual band 2.4 GHz / 5 GHz, 2x2 MIMO (5 GHz)
Protocol
IEEE 802.11 a/b/g/n/ac/ax
WPAN
✔
Remark
BLE v5.3
Optical indicators
✔ (10)
Analog/digital inputs
✔ (3)
Digital inputs/outputs
✔ (4)
Function
Configurable
Configuration interface
Web-InterfaceREST API
Electromagnetic compatibility (EMC)
EN 301 489-1 V2.2.3EN 301 489-17 V3.2.4EN 301 489-19 V2.2.1EN 301 489-52 V1.2.1EN 61000-6-2: 2019
Shock and vibration resistance
Vibration:IEC 60068-2-6:2007IEC 60068-2-64 + Amd1: 2008+2019Sine resonance scan: 5 Hz ... 1,000 HzSine test: 5 Hz ... 200 Hz, 5 g, 20 frequency cyclesNoise test: 10 Hz ... 500 Hz, 3.5 g RMS, 2 hShock:IEC 60068-2-27:200850 g, 11 ms, 6 single shocks/axis30 g, 11 ms, 3,000 bumps/axis*on all axis (X, Y, Z)
Electrical safety
IEC 62368-1:2018EN IEC 62368-1:2020 + A11:2020EN IEC 62311:2020
IO-Link specification V1.1.3
IEC 61131-9:2022
Ambient temperature
IEC 60068-2-1:2007IEC 60068-2-2:2007IEC 60068-2-14:2009IEC 60068-2-30:2005
Ambient temperature, operation
–25 °C ... +60 °C
Ambient temperature, storage
–40 °C ... +85 °C
Permissible relative humidity
< 90 %, Non-condensing
Altitude (above sea level)
< 2,000 m
Items supplied
TDC-X401GL with mobile communication (without data flow) including 4 port IO-Link master
Radio compliance
EN 300 328 V2.2.2EN 301 893 V2.1.1EN 300 440 V2.2.1EN 301 908-1 V15.2.1EN 303 413 V1.2.1Regulatory requirements for North America:FCC Part 2, Subpart JFCC Part 15, Subpart BFCC Part 22, Subpart HFCC Part 24, Subpart EFCC Part 27, Subpart CICES-Gen, Issue 1 + Amendment 1 (February 2021)ICES-003, Issue 7RSS-GEN Issue 5 & AMD 1 & AMD 2RSS-GEN Issue 4RSS-132 Issue 4RSS-102 Issue 6RSS-133 Issue 6 & AMD 1RSS-130 Issue 2RSS-139 Issue 4RSS-199 Issue 4
EU declaration of conformity
✔
UK declaration of conformity
✔
China RoHS
✔
IO-Link certificate
✔
EC-Type-Examination approval
✔
Radio Approval certificate Brazil
✔
IECEE CB certificate
✔
