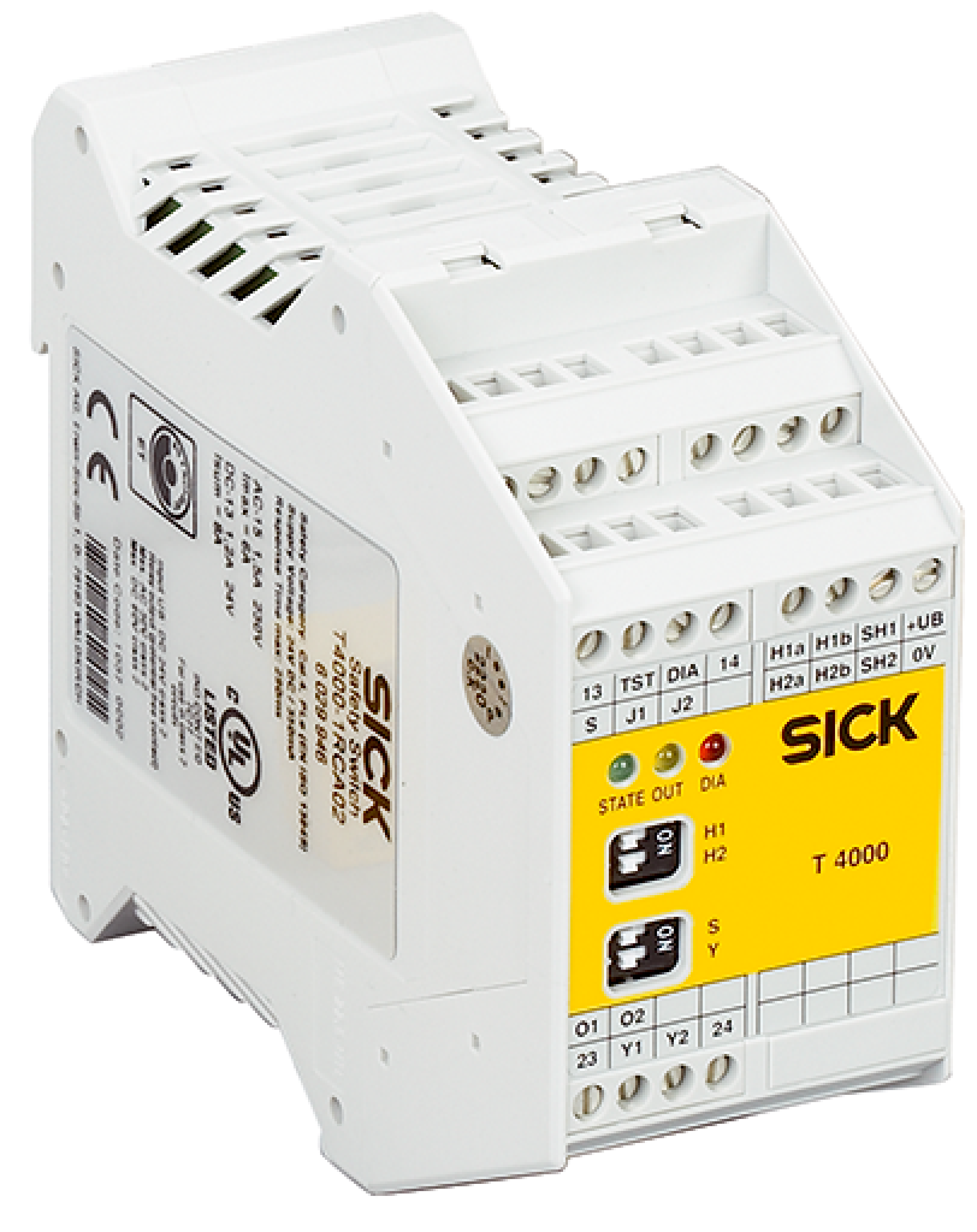

Safety switches | T4000 Multi | T4000-1RCA02 | System part: Evaluation unit | LED: yes | Number of safety switches: 1 ... 2
System part
Evaluation unit
Category
Category 4 (EN ISO 13849)
Performance level
PL e (EN ISO 13849)
PFHD(mean probability of a dangerous failure per hour)
15 * 10-91)9.6 x 10-82)
TM(mission time)
20 years (EN ISO 13849)1)2 years (EN ISO 13849)2)
Type
Type 4 (EN ISO 14119)
Actuator coding level
High coding level (EN ISO 14119)
Classification in compliance with IEC/EN 60947-5-3
PDF-M
Safe series connection
None, only individual wiring (with diagnostics)
Number of non-contact safety switches
1 ... 2
Power indication
✔
Out indication
✔
Error indication
✔
Status display
✔
Protection class
III (EN 50178)
Contamination rating
2
Classification according to cULus
Class 2
Note on supply voltage US
Operation with UL-class 2 power supply only
External fuse
At supply voltage Vs0.4 A ... 8 A
Usage category
AC-12/DC-12, AC-14/DC-13 (EN 60947-5-1)
Rated operating current (voltage)
0.3 A (60 V AC) 50 Hz6 A (30 V AC) 50 Hz0.3 A (60 V DC)6 A (30 V DC)1.5 A (230 V AC) 50 Hz1.2 A (24 V DC)
Rated insulation voltage Ui
250 V
Rated impulse withstand voltage Uimp
4,000 V AC
Supply voltage Vs
24 V DC (21 V DC ... 27 V DC)
Short-circuit protection
6 A gG
Type of output
Relays
Switching voltage
≥ 1 V DC
Response time
≤ 290 ms
Switch-on time
10 s1)
Number of application diagnostic outputs
2 semiconductor, p-switching
Number of safe outputs (N/O)
2
Design
Rectangular
Dimensions (W x H x D)
45 mm x 114 mm x 99 mm
Weight
250 g
Housing material
Plastic PA6.6
Mechanical life
10 x 106switching cycles
Enclosure rating
IP20
Ambient operating temperature
0 °C ... +55 °C
Storage temperature
0 °C ... +70 °C
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
cULus certificate
✔
Third party certificate
✔
ECLASS 5.1.4
27272403
ECLASS 6.0
27272403
ECLASS 7.0
27272403
ECLASS 8.0
27272403
ECLASS 9.0
27272403
ECLASS 10.0
27272403
ECLASS 11.0
27272403
ECLASS 12.0
27274601
ECLASS 13.0
27274601
ECLASS 14.0
27274601
ECLASS 15.0
27274601
ETIM 6.0
EC001829
ETIM 7.0
EC001829
ETIM 8.0
EC001829
ETIM 9.0
EC001829
ETIM 10.0
EC001829
UNSPSC 091201.0
39121500
UNSPSC 100501.0
39121500
UNSPSC 111201.0
39121500
UNSPSC 120901.0
39121500
UNSPSC 131201.0
39122205
UNSPSC 140801.0
39122205
UNSPSC 151101.0
39122205
UNSPSC 160901.0
39122205
UNSPSC 171001.0
39122205
UNSPSC 180801.0
39122205
UNSPSC 190501.0
39122205
UNSPSC 200601.0
39122205
UNSPSC 210901.0
39122205
UNSPSC 220601.0
39122205
UNSPSC 230701.0
39122205
UNSPSC 240301.0
39122205
UNSPSC 250901.0
39122205
UNSPSC 260801.0
39122205
