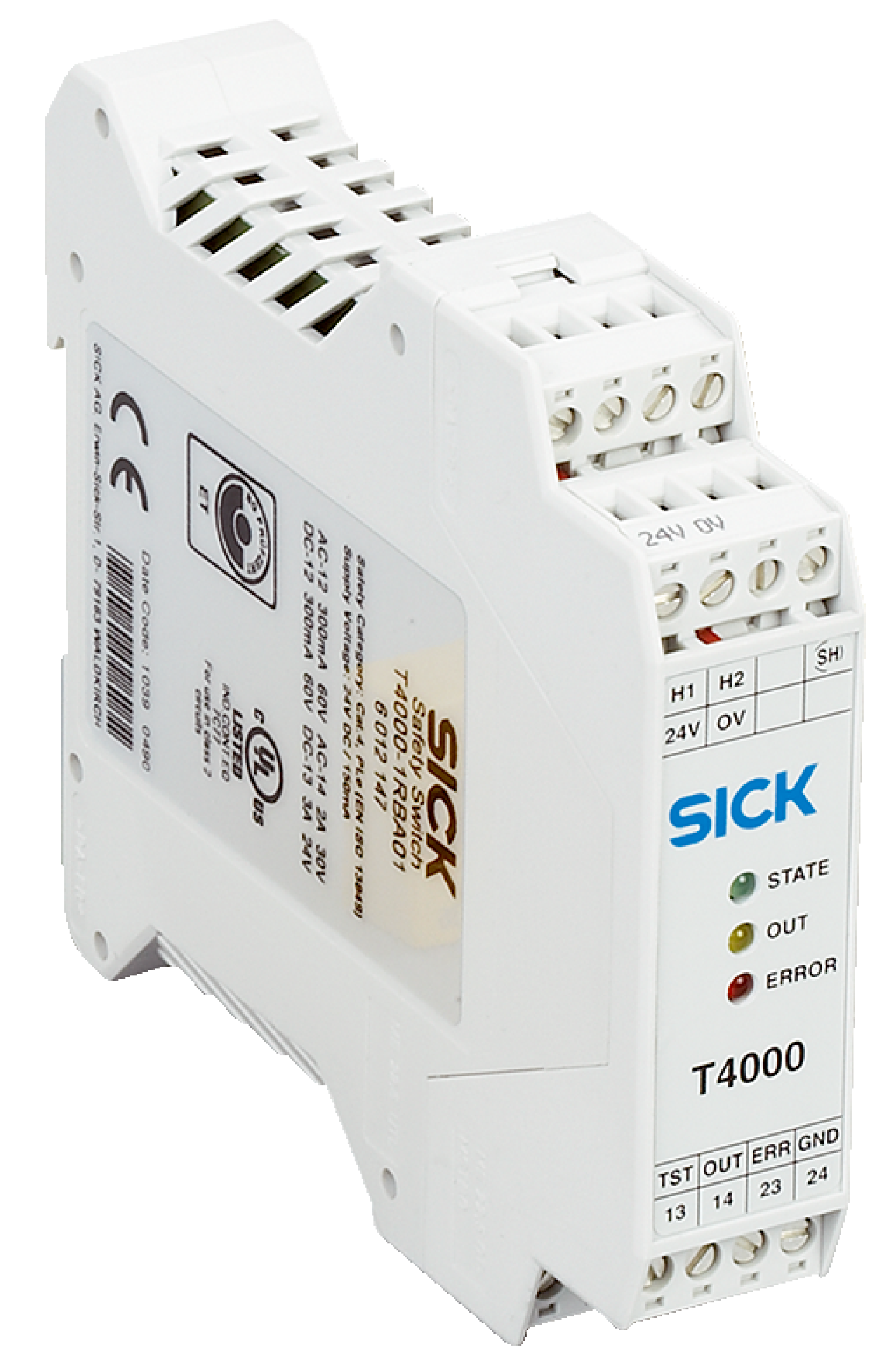

Safety switches | T4000 Standard | T4000-1RBA01 | System part: Evaluation unit | Connection type Detail: Plug-in terminals | LED: yes
System part
Evaluation unit
Category
Category 3 (EN ISO 13849)
Performance level
PL e (EN ISO 13849)
PFHD(mean probability of a dangerous failure per hour)
4.3 x 10-81)8.8 x 10-82)
TM(mission time)
20 years (EN ISO 13849)1)8 years (EN ISO 13849)2)
Type
Type 4 (EN ISO 14119)
Actuator coding level
High coding level (EN ISO 14119)
Classification in compliance with IEC/EN 60947-5-3
PDF-M
Safe series connection
None, only individual wiring (with diagnostics)
Connection type
Plug-in terminals
Out indication
✔
Error indication
✔
Status display
✔
Protection class
III (EN 50178)
Contamination rating
2
Classification according to cULus
Class 2
Note on supply voltage US
Operation with UL-class 2 power supply only
External fuse
At supply voltage Vs0.25 A ... 8 A
Usage category
AC-12/DC-12, AC-14/DC-13 (EN 60947-5-2)
Rated operating current (voltage)
0.3 A (60 V AC) 50 Hz6 A (30 V AC) 50 Hz0.3 A (60 V DC)6 A (30 V DC)2 A (30 V AC) 50 Hz3 A (24 V DC)
Rated insulation voltage Ui
63 V
Rated impulse withstand voltage Uimp
1,500 V AC
Supply voltage Vs
24 V DC (21 V DC ... 27 V DC)
Short-circuit protection
6 A gG
Type of output
Relays
Switching voltage
≥ 0.1 V DC
Response time
≤ 180 ms
Switch-on time
3 s1)
Number of application diagnostic outputs
1 semiconductor, p-switching
Number of safe outputs (N/O)
2
Design
Rectangular
Dimensions (W x H x D)
22.5 mm x 114 mm x 99 mm
Weight
0.327 kg
Housing material
Plastic PA6.6
Mechanical life
10 x 106switching cycles
Enclosure rating
IP20
Ambient operating temperature
0 °C ... +55 °C
Storage temperature
–25 °C ... +70 °C
Vibration resistance
10 Hz ... 55 Hz, 0.5 mm (IEC 60068-2-6)
Shock resistance
30 g, 11 ms (IEC 60068-2-27)
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
cULus certificate
✔
ECLASS 5.0
27272403
ECLASS 5.1.4
27272403
ECLASS 6.0
27272403
ECLASS 6.2
27272403
ECLASS 7.0
27272403
ECLASS 8.0
27272403
ECLASS 8.1
27272403
ECLASS 9.0
27272403
ECLASS 10.0
27272403
ECLASS 11.0
27272403
ECLASS 12.0
27274601
ETIM 5.0
EC001829
ETIM 6.0
EC001829
ETIM 7.0
EC001829
ETIM 8.0
EC001829
UNSPSC 16.0901
39122205
