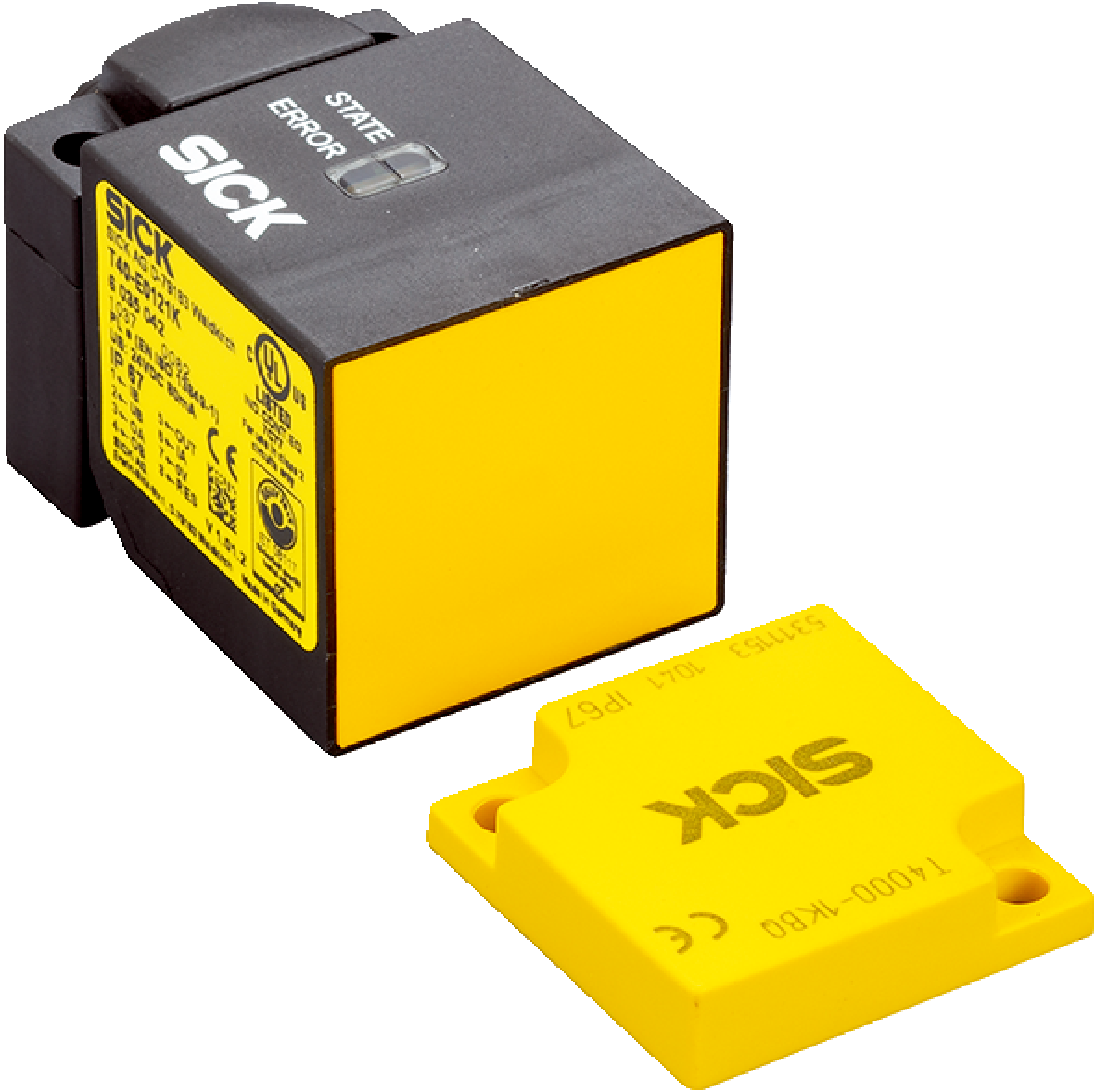

Safety switches | T4000 Direct | T40-E0101K | System part: sensor | Coding: Universally coded | Connection type Detail: Plug connector, M12, 8-pin | LED: yes | Boundary area indication: no
System part
sensor
Sensor principle
RFID
Number of safe outputs
2
Assured switch on distance Sao
15 mm1)18 mm2)19 mm3)
Assured switch off distance Sar
45 mm1)55 mm2)55 mm3)
Active sensor surfaces
1
Actuation directions
5
Monitoring time minimum dwell time
≥ 0.5 s
Coding
Universally coded
Category
Category 4 (EN ISO 13849)
Performance level
PL e (EN ISO 13849)
PFHD(mean probability of a dangerous failure per hour)
2.1 x 10-9
TM(mission time)
20 years (EN ISO 13849)
Type
Type 4 (EN ISO 14119)
Actuator coding level
Low coding level (EN ISO 14119)
Classification in compliance with IEC/EN 60947-5-3
PDF-M
Safe series connection
With T-connector (without diagnostics)
Connection type
Plug connector, M12, 8-pin
Long connecting cable
≤ 200 m
Coupling nut material
Fiber-glass-reinforced polyamide
Error indication
✔
Status display
✔
Protection class
III
Classification according to cULus
Class 2
Note on supply voltage US
Operation with UL-class 2 power supply only
External fuse
At supply voltage Vs0.25 A ... 4 A
Usage category
EN 60947-5-2
Rated operating current (voltage)
0.4 A (24 V DC)
Rated insulation voltage Ui
75 V
Rated impulse withstand voltage Uimp
1,500 V AC
Supply voltage Vs
24 V DC (20.4 V DC ... 27.6 V DC)
Power consumption
80 mA
Type of output
Self-monitoring semiconductor outputs (OSSDs)
Response time
≤ 290 ms
Switch-on time
10 s1)
Design
Rectangular
Dimensions (W x H x D)
40 mm x 57 mm x 40 mm
Weight
0.4 kg
Housing material
Plastic PTB VO GF30
Enclosure rating
IP67
Ambient operating temperature
–20 °C ... +55 °C
Storage temperature
–20 °C ... +70 °C
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
ECLASS 5.0
27272403
ECLASS 5.1.4
27272403
ECLASS 6.0
27272403
ECLASS 6.2
27272403
ECLASS 7.0
27272403
ECLASS 8.0
27272403
ECLASS 8.1
27272403
ECLASS 9.0
27272403
ECLASS 10.0
27272403
ECLASS 11.0
27272403
ECLASS 12.0
27274601
ETIM 5.0
EC001829
ETIM 6.0
EC001829
ETIM 7.0
EC001829
ETIM 8.0
EC001829
UNSPSC 16.0901
39122205
