Safety systems | Safe Robotics Area Protection | SYS/BOT-ABPN4PCWI01MS3 | Variant: sBot Speed PROFINET - ABB | Product type: System (hardware and software) | Robot controller: ABB: SWIFTI CRB 1100, SWIFTI CRB 1300, GoFa CRB 15000 | Stopping process of the robot: With speed reduction | Robot restart: Automatic | Interface: PROFINET PROFIsafe
Variant
sBot Speed PROFINET - ABB
Description

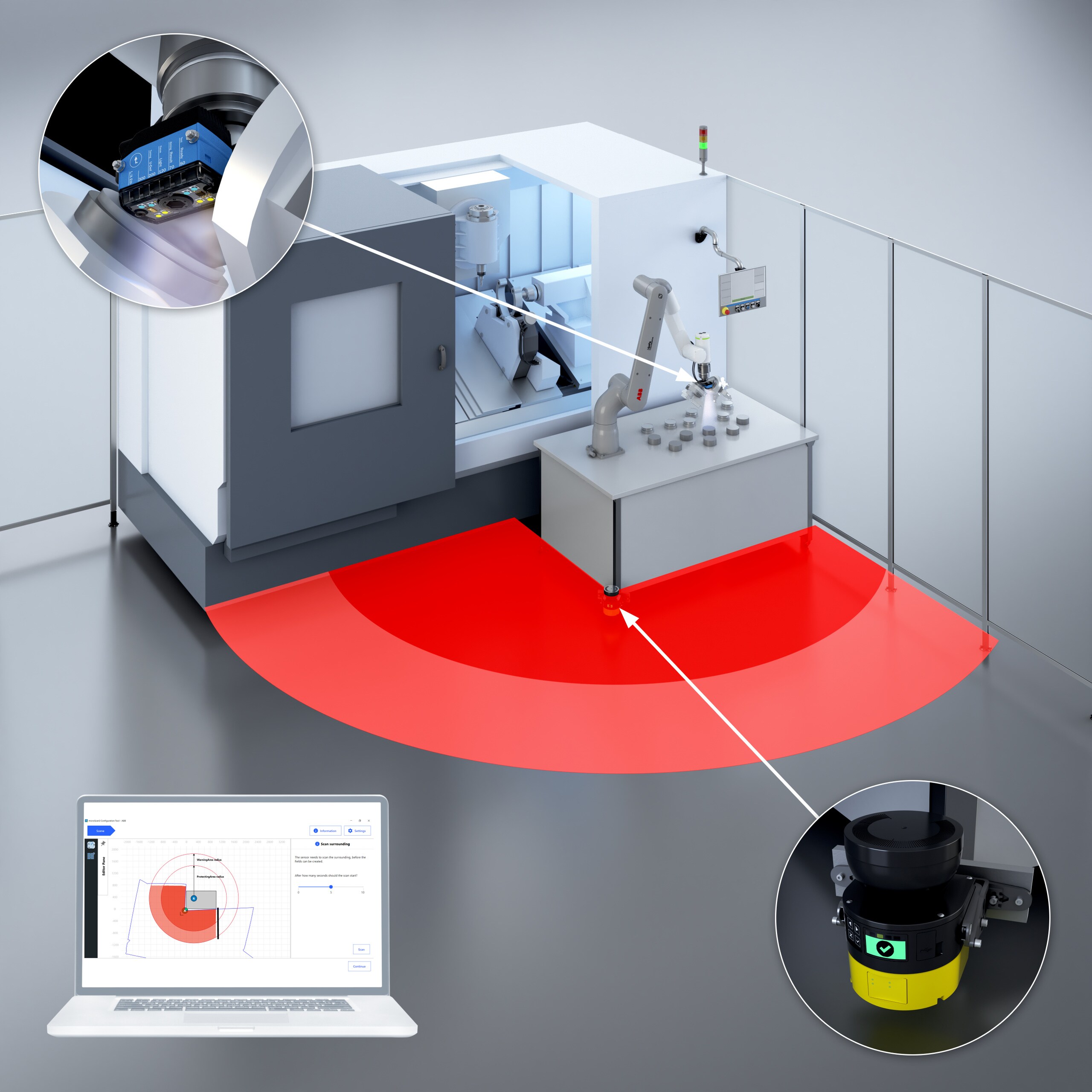

sBot Speed PROFINET – ABB is a safety system for ABB robots (GoFaTM and SWIFTITM) that makes it easy to protect your freely accessible robot application in a PROFINET infrastructure. The system ensures a safe stop with automatic restart of the robot. The microScan3 Core - PROFINET safety laser scanner is used to detect an approaching person. The microScan3 Configuration Tool (software) can be used to quickly and easily configure the safety laser scanner.
Product type
System (hardware and software)
Robot controller
ABB: SWIFTI CRB 1100, SWIFTI CRB 1300, GoFa CRB 15000
Compatible robot software
RobotWare (Omnicore) 7.10
Stopping process of the robot
With speed reduction
Robot restart
Automatic
Communication interface
PROFINET PROFIsafe
Configuration interface
Ethernet
Safe state in the event of a fault
The safety outputs via the network are logic 0.
Safety laser scanners
microScan3 Core - PROFINET
Protective field range
4 m
Safety task
Hazardous area protection
Ambient operating temperature
–10 °C ... +50 °C
Storage temperature
–25 °C ... +70 °C
Air humidity
0% ... 95%, non-condensing
Supply voltage VS
24 V DC (16.8 V DC ... 30 V DC)
Performance level
PL d (ISO 13849-1)
Items supplied
1 x microScan3 Core – PROFINET safety laser scanners (4 m)1 x power cable, 5 m1 x mounting kit 1a1 x Ethernet cable, 5 m1 x configuration cable, 3 mmicroScan3 Configuration Tool (software)Operating instructions
Collaborative Speed Control add-in
Option Collaborative speed control [3143-1]
microScan3 connected directly to the controller as a guest
PROFI‐ safe Controller [3023-1]
microScan3 and robot controller are guests of an external PLC
PROFI‐ safe Device [3023-2]
