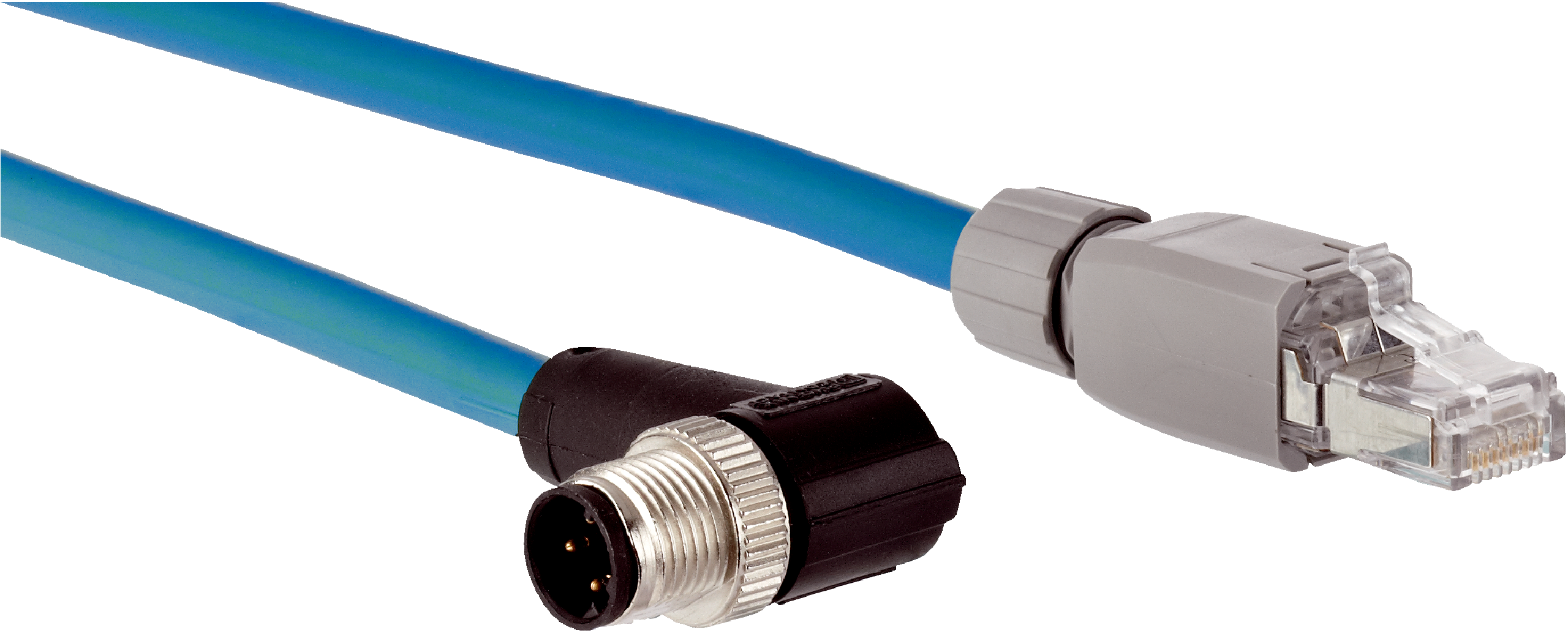

Connectors and cables | Other connectors and cables | SSL-2J04-F10MZ | Description: PROFINET, shielded, EtherCAT® | Connection type head A: Male connector, RJ45, 4-pin, straight | Connection type head B: Male connector, M12, 4-pin, angled, D-coded | Signal type: PROFINET, EtherCAT® | Cable: 10 m, 4-wire, CAT5, CAT5e, PVC
Connection type head A
Male connector, RJ45, 4-pin, straight
Connection type head B
Male connector, M12, 4-pin, angled, D-coded
Cable
10 m, 4-wire, CAT5, CAT5e, PVC
Jacket material
PVC
Jacket color
Green (RAL 6018)
Cable diameter
6.5 mm
Conductor cross section
0.34 mm²
Shielding
Shielded
Flexible use
> 7 x cable diameter
Signal type
PROFINET, EtherCAT®
Transmission characteristics
CAT5
Data transmission rate
≤ 100 Mbit/s
Enclosure rating
IP65/ IP67/ IP69K (M12), IP20 (RJ45)
Stationary position
–20 °C ... +60 °C
EU declaration of conformity
✔
China RoHS
✔
ECLASS 5.0
19030312
ECLASS 5.1.4
19030312
ECLASS 6.0
27060304
ECLASS 6.2
27060304
ECLASS 7.0
27060304
ECLASS 8.0
27060304
ECLASS 8.1
27060304
ECLASS 9.0
27060304
ECLASS 10.0
27060304
ECLASS 11.0
27060304
ECLASS 12.0
27060304
ETIM 5.0
EC000830
ETIM 6.0
EC000830
ETIM 7.0
EC003249
ETIM 8.0
EC003249
UNSPSC 16.0901
26121604
