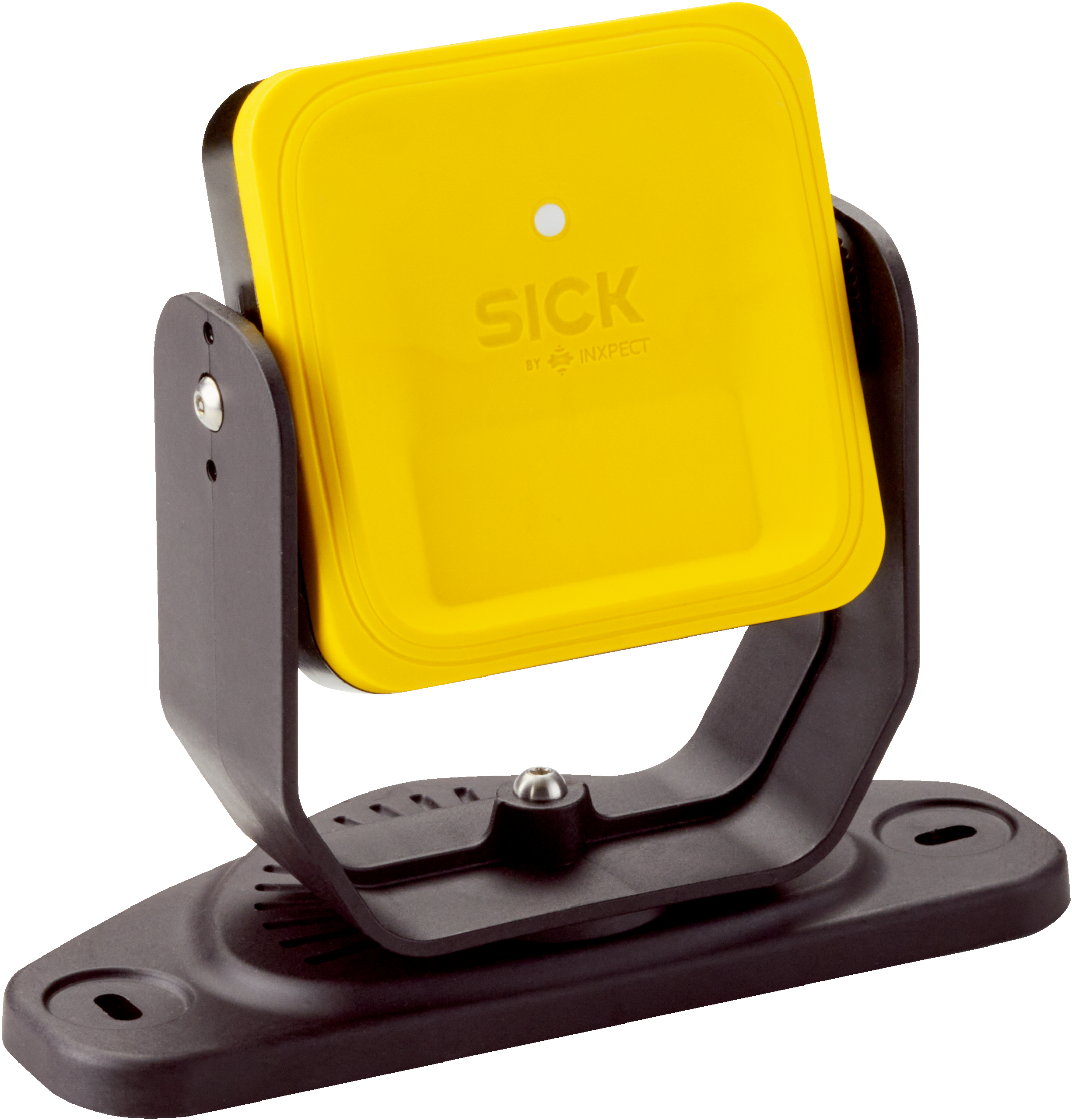

Safety radar sensors | safeRS3 | SRA3-AAC100ZANI | Variant: safeRS3 Control I/O | Manufacturer designation: C203A (Model), SK02 (Type) | System part: control | Integration in the control system: Local inputs and outputs (I/O) | OSSD pairs: ≤ 2 | Response time: ≤ 100 ms | Safety level: PL d, SIL 2
System part
control
Variant
safeRS3 Control I/O
Manufacturer designation
C203A (Model), SK02 (Type)
Number of monitoring cases
≤ 4
Response time
≤ 100 ms
Items supplied
safeRS3 control unitSafety instructionOperating instructions for downloadMounting instructionssafeRS3 Designer (configuration and diagnostic software) for downloadsafeRS3 Designer 3D (configuration and diagnostic software) for downloadThe sensors must be ordered separately.
Safety integrity level
SIL 2 (IEC 62061)
Category
Category 3 (EN ISO 13849)
Performance level
PL d (EN ISO 13849)
PFHD(mean probability of a dangerous failure per hour)
For details, see operating instructions, “Safety-related parameters” section
MTTFD(mean time to dangerous failure)
42 years (IEC 60050)
TM(mission time)
20 years (EN ISO 13849)
Safe state in the event of a fault
At least one OSSD pair is in the OFF state.
Restart interlock
✔
Muting
✔
Manipulation protection
✔
Safe detection of a person
✔
OSSD pairs
≤ 2
Universal outputs
≤ 41)
Universal inputs
2 dual-channel1)
Test input
12)
Configuration method
PC with safeRS3 Designer (Configuration and Diagnostic software), PC with safeRS3 Designer 3D (Configuration and Diagnostic software)
Configuration and diagnostics interface
Micro USB
Display elements
LEDs
Supply voltage Vs
24 V DC (20 V DC ... 28 V DC)
Power consumption
≤ 33 W, control unit and six sensors
Dimensions (W x H x D)
105 mm x 103 mm x 35 mm
Enclosure rating
IP20 (IEC 60529)
Ambient operating temperature
–30 °C ... +60 °C
Storage temperature
–40 °C ... +80 °C
EU declaration of conformity
✔
UK declaration of conformity
✔
China RoHS
✔
cUL approval
✔
EC-Type-Examination approval
✔
RoHS manufacturer declaration
✔
