RFID transponders | UHF transponders | Special label | Carrier frequency: 865 MHz ... 928 MHz | Memory capacity (UII / user memory): 128/512 Bit | Dimensions (L x W x H): 73 mm x 14 mm x 0.3 mm
Product segment
RFID transponders, RFID
Product
UHF transponders
Description

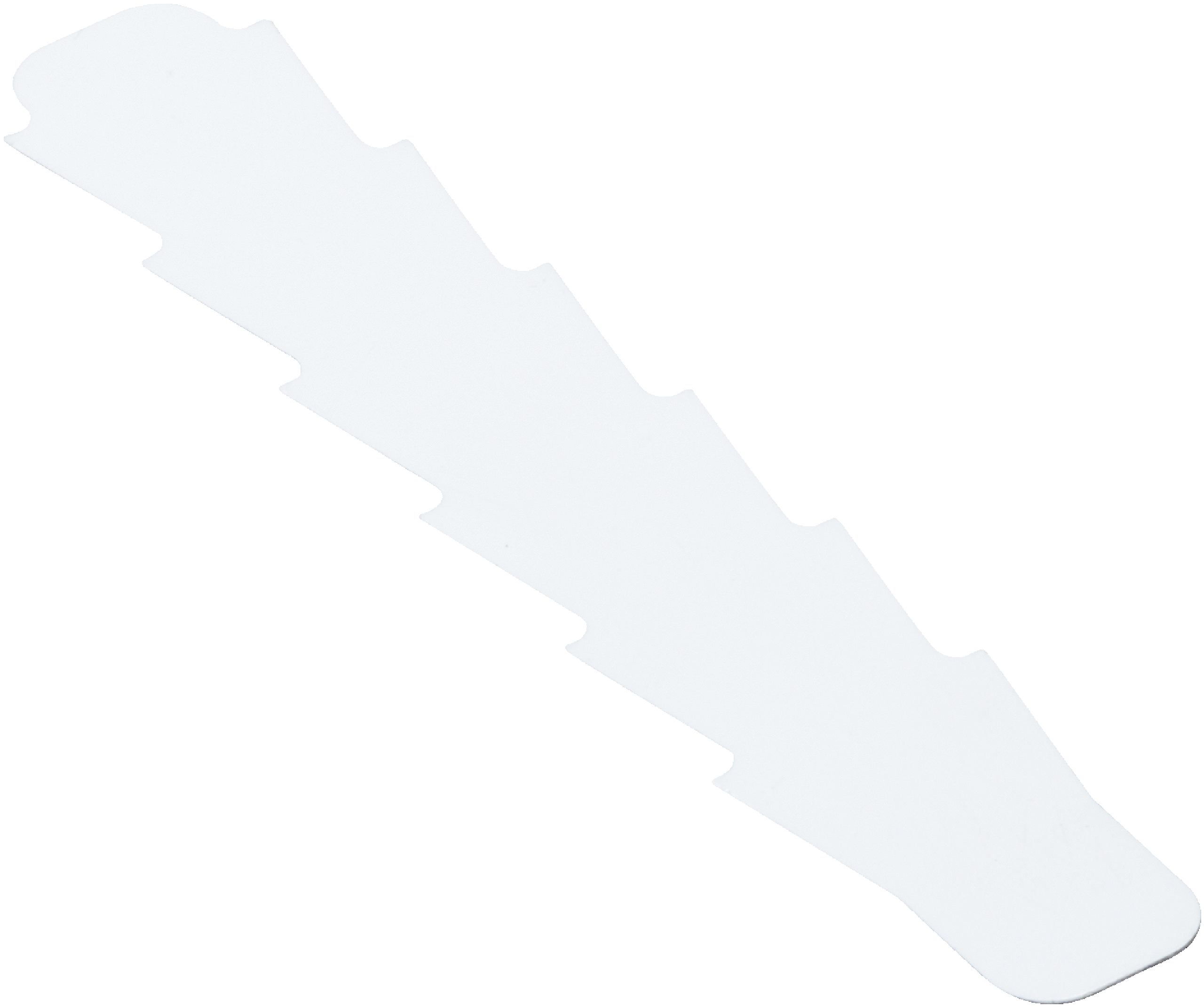

UHF transponder, special label for wooden pallets, 73 mm x 14 mm x 0.3 mm, Impinj Monza 4QT
Frequency band
UHF (860 MHz ... 960 MHz)
Carrier frequency
865 MHz ... 928 MHz
Housing material
PET
Ambient operating temperature
–35 °C ... +60 °C
Storage temperature
–35 °C ... +60 °C
Housing color
White
IC type
Impinj Monza 4QT
IC capacity
128/512 Bit
IC data retention time
< 10 years
Dimensions (W x H x L)
14 mm x 0.3 mm x 73 mm
Weight
0.6 g
ECLASS 5.0
27280401
ECLASS 5.1.4
27280401
ECLASS 6.0
27280401
ECLASS 6.2
27280401
ECLASS 7.0
27280401
ECLASS 8.0
27280401
ECLASS 8.1
27280402
ECLASS 9.0
27280402
ECLASS 10.0
27280402
ECLASS 11.0
27280402
ECLASS 12.0
27280402
ETIM 5.0
EC002593
ETIM 6.0
EC002998
ETIM 7.0
EC002998
ETIM 8.0
EC002998
UNSPSC 16.0901
52161523
