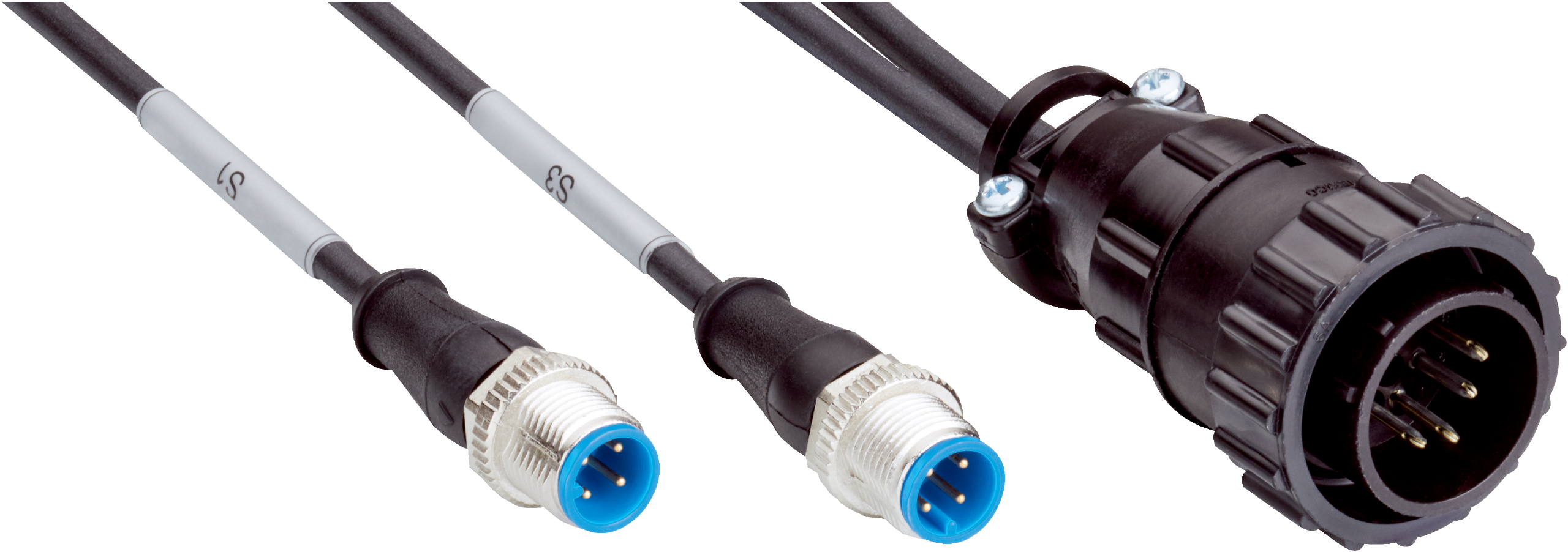

Connectors and cables | Other connectors and cables | SMEMA N-1 male connection cable | Description: Digital I/Os, unshielded | Connection type head A: Male connector, M12, 4-pin, A-coded | Connection type head B: Male connector, SMEMA CPC, 14-pin | Signal type: Digital I/Os | Cable: 2 m, 4-wire, PUR, halogen-free
Connection type head A
Male connector, M12, 4-pin, A-coded
Connection type head B
Male connector, SMEMA CPC, 14-pin
Locking plug connector
Screw connection
Connector material
TPU (head A)
Connector color
Black
Cable
2 m, 4-wire, PUR, halogen-free
Jacket material
PUR, halogen-free
Jacket color
Black
Cable diameter
4.5 mm
Conductor cross section
0.34 mm²
Shielding
Unshielded
Bending cycles
10,000,000
Current loading
4 A
Signal type
Digital I/Os
Flexible use
–25 °C ... +80 °C
Stationary position
–40 °C ... +80 °C
Drag chain operation
–25 °C ... +80 °C
Head
–25 °C ... +85 °C
EU declaration of conformity
✔
UK declaration of conformity
✔
China RoHS
✔
ECLASS 5.1.4
27069090
ECLASS 6.0
27069090
ECLASS 7.0
27069090
ECLASS 8.0
27069090
ECLASS 9.0
27069090
ECLASS 10.0
27069090
ECLASS 11.0
27069090
ECLASS 12.0
27069090
ECLASS 13.0
27069090
ECLASS 14.0
27069090
ECLASS 15.0
27069090
ETIM 6.0
EC002584
ETIM 7.0
EC002584
ETIM 8.0
EC002584
ETIM 9.0
EC002584
ETIM 10.0
EC002584
UNSPSC 091201.0
39121421
UNSPSC 100501.0
39121421
UNSPSC 111201.0
39121421
UNSPSC 120901.0
39121421
UNSPSC 131201.0
39121421
UNSPSC 140801.0
39121421
UNSPSC 151101.0
39121421
UNSPSC 160901.0
39121421
UNSPSC 171001.0
39121421
UNSPSC 180801.0
39121421
UNSPSC 190501.0
39121421
UNSPSC 200601.0
39121421
UNSPSC 210901.0
39121421
UNSPSC 220601.0
39121421
UNSPSC 230701.0
39121421
UNSPSC 240301.0
39121421
UNSPSC 250901.0
39121421
UNSPSC 260801.0
39121421
