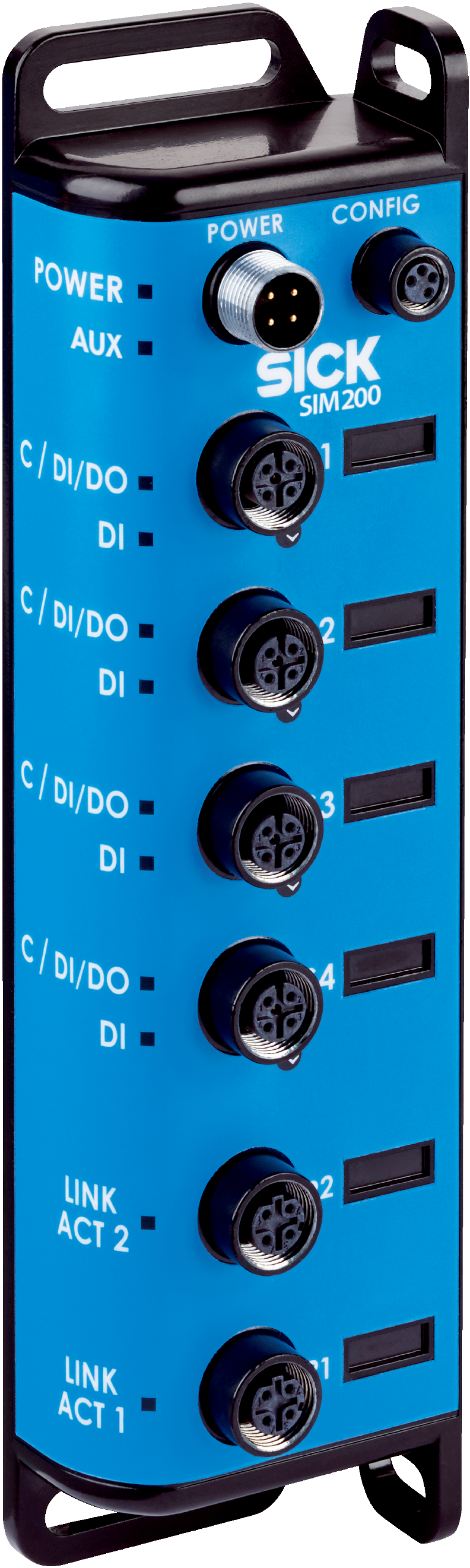

Edge computing devices | SIM200 | SIM200-0P0G12200 | Product category: Programmable devices | Supported products: IO-Link sensorsSensors with digital inputs and outputs | Processor: ARM Cortex M7 + NetX51 | Toolkit: SICK algorithm API | Connections: PowerS1-S4, IO-Link MasterEthernetCONFIG | Enclosure rating: IP67 | Application development kit: SICK AppStudioCan be programmed within the SICK AppSpace environment
Product category
Programmable devices
Task
Data recording, evaluation, and archiving
Supported products
IO-Link sensorsSensors with digital inputs and outputs
Processor
ARM Cortex M7 + NetX51
Random Access Memory
512 MB (netX51)
Flash memory
4 GB
Application development kit
SICK AppStudioCan be programmed within the SICK AppSpace environment
Toolkit
SICK algorithm API
Power
1 (M12, 4-pin male connector, A-coded)
S1-S4, IO-Link Master
4 (M12, 5-pin female connector, A-coded)
CONFIG
1 (M8, 4-pin socket)
Supply voltage
(10 V DC, 18 V DC ... 30 V DC, 30 V DC)1)2)
Operating current
Must be limited by external power supply unit to max. 4 A
Power consumption
≤ 4.2 W, without connected sensors
Power output
≤ 72 W, total, all connections
S1-S4, pin 4
≤ 200 mA3)
S1-S4, pin 1
≤ 500 mA
Enclosure rating
IP67
Protection class
III
Housing material
Zinc
Housing color
Black
Poids
520 g
Dimensions (L x W x H)
213.9 mm x 57 mm x 38.3 mm
Ethernet
✔ , TCP/IP
IO-Link
✔ , IO-Link V1.1
Data transmission rate
≤ 230 kBaud
USB
✔
Remark
Via CONFIG port
Function
Configuration
Operator interfaces
Web server (GUI), SICK AppStudio (programming), SICK AppManager (app installation, firmware update)
S1-S4
In each case 1 input, in each case 1 input/output (can be configured)
Electromagnetic compatibility (EMC)
EN 61000-6-2 / EN 61000-6-4
Shock load
EN 60068-2-27
Vibration resistance
EN 60068-2-6
Ambient operating temperature
–40 °C ... +55 °C1)
Ambient temperature, storage
–40 °C ... +75 °C1)
EU declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
ECLASS 5.1.4
27250608
ECLASS 6.0
27242608
ECLASS 7.0
27242608
ECLASS 8.0
27242608
ECLASS 9.0
27242608
ECLASS 10.0
27242608
ECLASS 11.0
27242608
ECLASS 12.0
27242608
ECLASS 13.0
27242608
ECLASS 14.0
27242608
ECLASS 15.0
27242608
ETIM 6.0
EC001604
ETIM 7.0
EC001604
ETIM 8.0
EC001604
ETIM 9.0
EC001604
ETIM 10.0
EC001604
UNSPSC 091201.0
32151705
UNSPSC 100501.0
32151705
UNSPSC 111201.0
32151705
UNSPSC 120901.0
32151705
UNSPSC 131201.0
32151705
UNSPSC 140801.0
32151705
UNSPSC 151101.0
32151705
UNSPSC 160901.0
32151705
UNSPSC 171001.0
32151705
UNSPSC 180801.0
32151705
UNSPSC 190501.0
32151705
UNSPSC 200601.0
32151705
UNSPSC 210901.0
32151705
UNSPSC 220601.0
32151705
UNSPSC 230701.0
32151705
UNSPSC 240301.0
32151705
UNSPSC 250901.0
32151705
UNSPSC 260801.0
32151705
