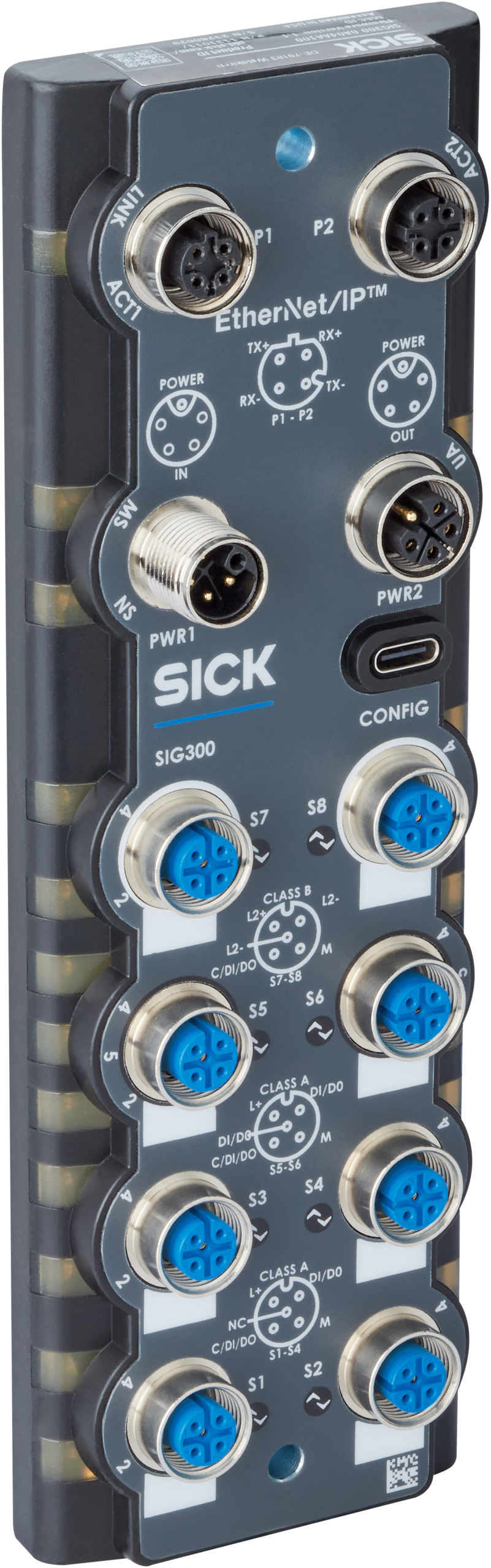

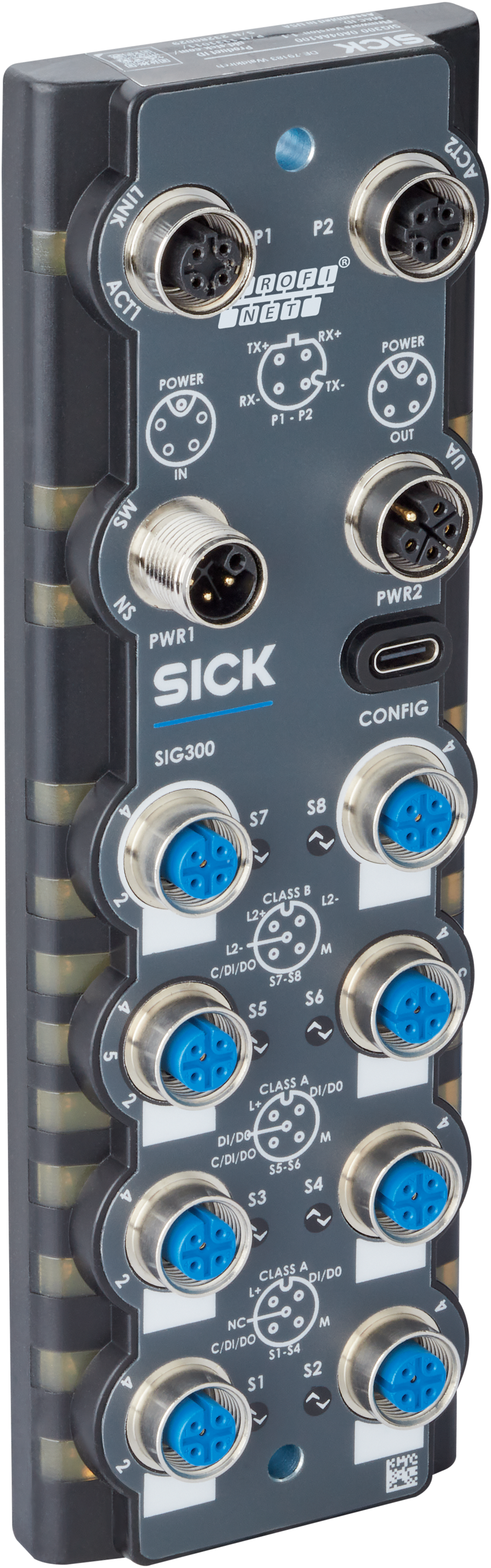

Network devices | SIG300 | SIG300-0A0GAA100 | Product category: IO-Link Master | Communication interface: IO-Link, REST API, MQTT, Ethernet | Supported products: IO-Link Devices, binary switching sensors, binary actuators | Scope of delivery: SIG300, safety instruction, Blind plugs (9 x M12, 1 x USB-C) | Further functions: Web server integrated, IIoT interface available
Product category
IO-Link Master
Supported products
IO-Link DevicesBinary switching sensorsBinary actuators
Further functions
Web server integratedIIoT interface available
MTTF
29.4 years1)
MTTFd
58.8 years1)
Items supplied
SIG300, safety instruction, Blind plugs (9 x M12, 1 x USB-C)
Power
1 x M12, 5-pin male connector, L-coded1 x M12, 5-pin female connector, L-coded
USB-C
1 x USB-C
Supply voltage
20 V DC ... 30 V DC1)
Current carrying capacity (PWR1, PWR2) max.
≤ 16 A, US2)
Current consumption
≤ 200 mA3)
Total current (S1 ... S8)
≤ 15.5 A2)
Pin 2 (DI/DO)
200 mA
Pin 3 (M)
- 2.6 A
Pin 5 (DI/DO) Port 5-6
200 mA
Pin 1 (L+) (Us)
2 A
Pin 2 (L+) (UA)
2 A
Pin 3 (M) (Us)
- 2 A
Pin 4 (C/Q DI/DO)
200 mA
Pin 5 (M) (UA)
- 2 A
Input characteristics
EN 61131-2 type 1
Number
16, configurable
Type
PNP
Switching frequency
≤ 50 Hz
Circuit protection
Short-circuit protected
Optical indicators
8 LED green (IO-Link activity pin 4)6 LED yellow (DI/DO communication pin 2)2 LED yellow (DI/DO communication pin 5)2 LED yellow (Voltage supply UA“On” pin 2, class B port)2 LED green (Ethernet bus activity)1 LED green (voltage supply US(sensors))1 LED green (voltage supply UA(actuators))
Enclosure rating
IP67 (In fastened condition)
Protection class
III4)
Contamination rating
2
Housing material
Polyamide + steel, galvanized
Housing color
Dark gray
Kaal
460 g
Dimensions (L x W x H)
191.4 mm x 61.2 mm x 27.3 mm
UL File No.
E497722
IO-Link
✔
Remark
V1.1
Port Class
A/B
Additional features
Data Storage
Ethernet
✔
Fieldbus
✔
Number of ports
2 pieces
Data transmission rate
10/100 MBit/s
Cycle time
≥ 1 ms
Addressing
DCP, static IP address
Factory setting
DCP
REST API
✔
Specification
JSON integration for IO-Link version (V1.0.0)
Operator interfaces
Web server integrated
Ambient operating temperature
–40 °C ... +55 °C1)
Ambient temperature, storage
–40 °C ... +75 °C1)
Electromagnetic compatibility (EMC)
EN 61000-6-2:2016EN 61000-6-4:2020
Shock load
EN 60068-2-27
EU declaration of conformity
✔
UK declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
ECLASS 5.1.4
27250608
ECLASS 6.0
27242608
ECLASS 7.0
27242608
ECLASS 8.0
27242608
ECLASS 9.0
27242608
ECLASS 10.0
27242608
ECLASS 11.0
27242608
ECLASS 12.0
27242608
ECLASS 13.0
27242608
ECLASS 14.0
27242608
ECLASS 15.0
27242608
ETIM 6.0
EC001604
ETIM 7.0
EC001604
ETIM 8.0
EC001604
ETIM 9.0
EC001604
ETIM 10.0
EC001604
