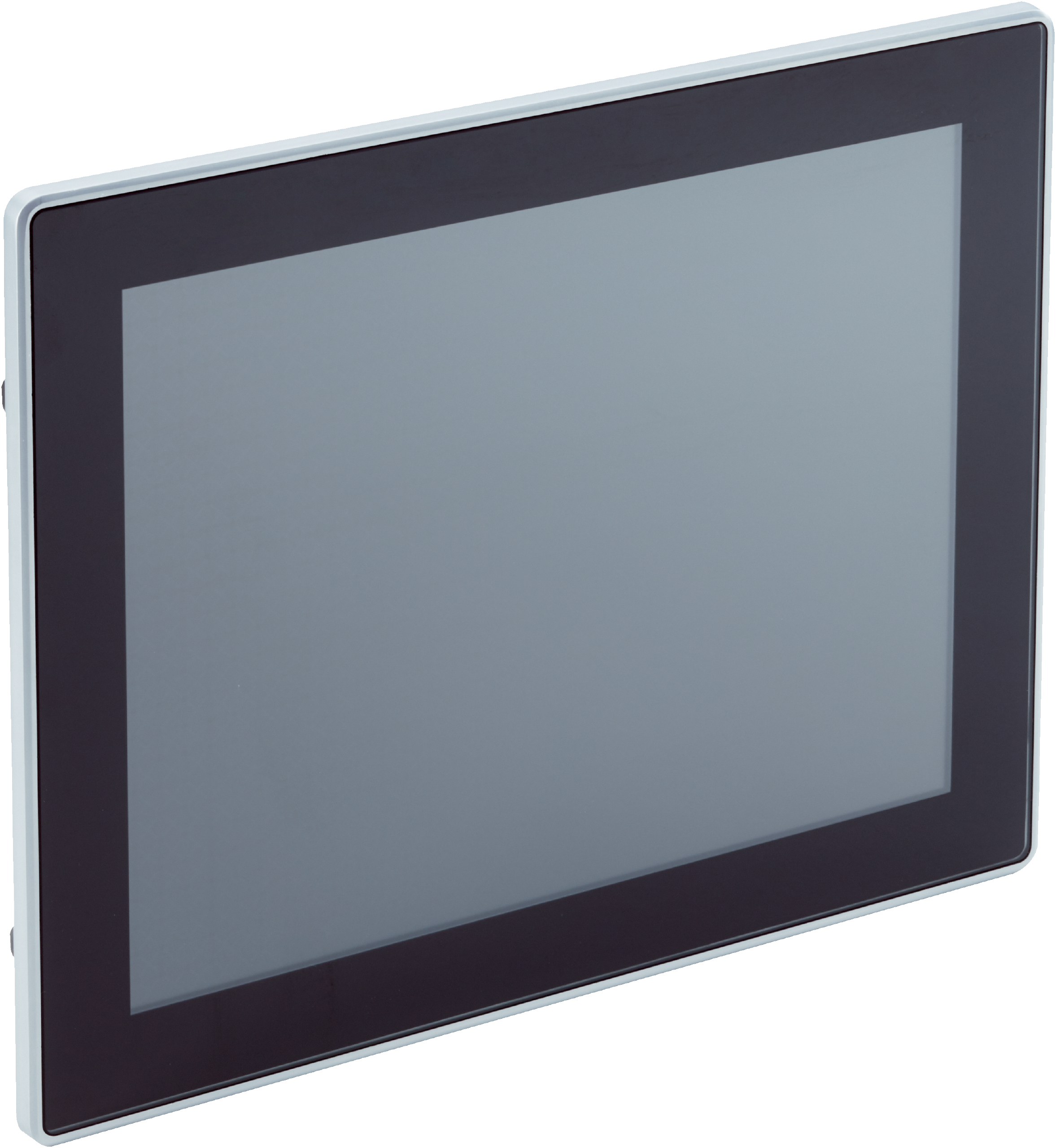

Displays | SID | SID120 | Display size: 12.1 ″ | Operating system: Linux Yocto | Processor: i.MX6 Dual, ARM Cortex - A9 with 1 GHz, RTC Accuracy: +/- 30 ppm at 25 °C
Supported products
Programmable devicesDevices with integrated web server
Product category
Programmable devices
Processor
i.MX6 DualARM Cortex - A9 with 1 GHzRTC Accuracy: +/- 30 ppm at 25 °C
Random Access Memory
4 GB eMMC Flash1 GB RAM
Documentation
support.sick.com
Further functions
NEON for SMID media acceleration and VFP operationOpenGL ES 2.0OpenVG 1.1
Size
12.1 ″
Resolution
1,024 dpi x 768 dpi
Brightness
Typ. 480 cd/m²
Service life of backlight
Typ. 50,000 h
Viewing angle
89° (UDRL)
Color
24 bit (16.7 million colors)
Touch display
Projective capacitative multi-touch
Front screen
4.0 mm toughened glass, RAL 9005 (black)
Frame
Zinc alloy, Matt chrome-plated
Rear view
Stainless steel 1.4016, foam seal
Supply voltage
13 V DC ... 32 V DC
Power consumption
Typ. 17 W≤ 39.2 W
Enclosure rating
Front side: IP66Rear: IP20
Protection class
III
Weight
+ 2,700 g
Dimensions (W x H x D)
305.9 mm x 242.7 mm x 41 mm
Mounting system type
Panel mounting
MTBF
≥ 400,000 h
Ethernet
✔ (2)
Function
Host (type A), OTG (Mico-AB type)
Data transmission rate
480 Mbit/s ... 5 Gbit/s, 10/100 MBit/s
USB
✔ (2)
Remark
Please observe the notes in the operating instructions when using the interfaces.
Application development kit
SICK AppStudio
Memory card
4 bit MMC/SDIO/SD/SDHCIncluded with delivery: Industry-compliant SD memory card, min. 4 GB
Electromagnetic compatibility (EMC)
IEC 61000-6-4:2006+AMD1:2010EN 61000-6-4:2007+A1:2011IEC 61000-6-2:2016 (Industrial Environment)
Ambient operating temperature
–20 °C ... +60 °C
Ambient temperature, storage
–20 °C ... +70 °C
Permissible relative humidity
5 ... 90 % RHNon-condensing
Altitude (above sea level)
Max. 3,000 m
Items supplied
SID120SD memory card
Note
Not free of paint wetting impairment substances.
Operating system
Linux Yocto
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
ECLASS 5.1.4
27330201
ECLASS 6.0
27242301
ECLASS 7.0
27242301
ECLASS 8.0
27242301
ECLASS 9.0
19200103
ECLASS 10.0
19200103
ECLASS 11.0
19200103
ECLASS 12.0
19200103
ECLASS 13.0
19200103
ECLASS 14.0
19200103
ECLASS 15.0
19200103
ETIM 6.0
EC001414
ETIM 7.0
EC001414
ETIM 8.0
EC001414
ETIM 9.0
EC001414
ETIM 10.0
EC001414
UNSPSC 091201.0
43211903
UNSPSC 100501.0
43211903
UNSPSC 111201.0
43211903
UNSPSC 120901.0
43211903
UNSPSC 131201.0
43211903
UNSPSC 140801.0
43211903
UNSPSC 151101.0
43211903
UNSPSC 160901.0
43211903
UNSPSC 171001.0
43211903
UNSPSC 180801.0
43211903
UNSPSC 190501.0
43211903
UNSPSC 200601.0
43211903
UNSPSC 210901.0
43211903
UNSPSC 220601.0
43211903
UNSPSC 230701.0
43211903
UNSPSC 240301.0
43211903
UNSPSC 250901.0
43211903
UNSPSC 260801.0
43211903
