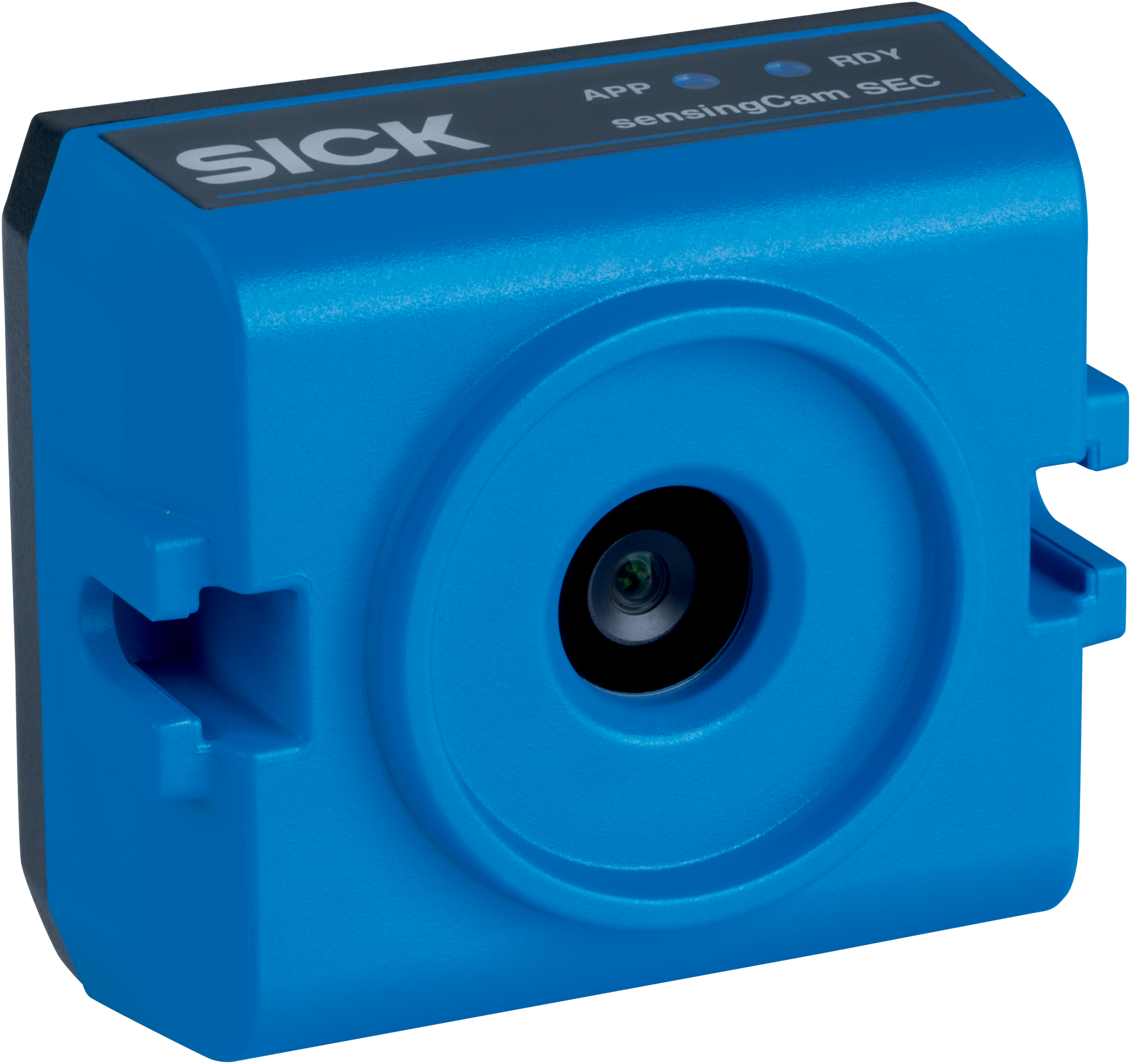

Machine vision | sensingCam SEC100 | SEC100-5C9D1SFZZZZ | Communication interface: REST API, Ethernet | Configuration software: Web server integrated | Sensor: Powerful in low light | Shutter technology: Rolling-Shutter | Sensor resolution: 2,880 px x 1,616 px (5 MP) | Detection angle: 82° x 52° | Technology: 2D snapshot, Streaming
Product category
Streaming, flexible
Technology
2D snapshot, Streaming
Sensor
CMOS ColorPowerful in low light
Shutter technology
Rolling-Shutter
Sensor resolution
2,880 px x 1,616 px (5 MP)
Working distance
0.3 m ... 10 m
Field of view
82° x 52°
Memory
6 GB, internal memory or FTP upload
Lighting
Without
Lens
Integrated
Scan/frame rate
5 fps ... 30 fps
Video resolution
Full resolution (2,880 x 1,616 pixels) @ 25 fps
Video protocol
RTSP, MJPG
Real-time video transmission
Two individually configurable RTSP streams, one MJPEG stream
Video compression
H.264, H.265, Motion JPEG, configurable compression level
Image format
JPEG, BMP
Trigger
Digital input or software trigger via REST API, TCP/IP
REST API
✔
Ethernet
✔ , TCP/IP
Remark
DHCP/static (default: 192.168.0.1)
Data transmission rate
100 Mbit/s, 100Base-TX
Configuration software
Web server integrated
Supply voltage
12 V DC ... 24 V DC1)
Power consumption
Typ. 2 WMax. 10 W
Digital input, level
Active: 10 V ≤ UIN≤ UVInactive: UIN≤ 2 V
Protection class
III
Enclosure rating
IP65
Supply voltage & I/O
Plug, M12, 4-pin, A-coded
Ethernet interface
M12 female connector, 4-pin, D-coded
-- 1
TD +
-- 2
RD +
-- 3
TD -
-- 4
RD -
Dimensions (W x H x D)
57.5 mm x 49 mm x 33.6 mm (without connection)
Housing material
Plastic
Window material
Glass
Kaal
120 g
Mounting
Two threads for M4 screwsTwo grooves for sliding nutsOne ¼‘‘ - 20 UNC thread for photo tripod
Ambient temperature, operation
0 °C ... +50 °C, Optimal image quality at 10 °C ... +40 °C
Ambient temperature, storage
–20 °C ... +60 °C
Permissible relative humidity
≤ 90 %
Shock resistance
150 m/s² EN 60068-2-27
Vibration resistance
EN 60068-2-6, EN 60068-2-64
ECLASS 5.0
27310205
ECLASS 5.1.4
27310205
ECLASS 6.0
27310205
ECLASS 6.2
27310205
ECLASS 7.0
27310205
ECLASS 8.0
27310205
ECLASS 8.1
27310205
ECLASS 9.0
27310205
ECLASS 10.0
27310205
ECLASS 11.0
27310205
ECLASS 12.0
27310205
ETIM 5.0
EC001820
ETIM 6.0
EC001820
ETIM 7.0
EC001820
ETIM 8.0
EC001820
UNSPSC 16.0901
43211731
