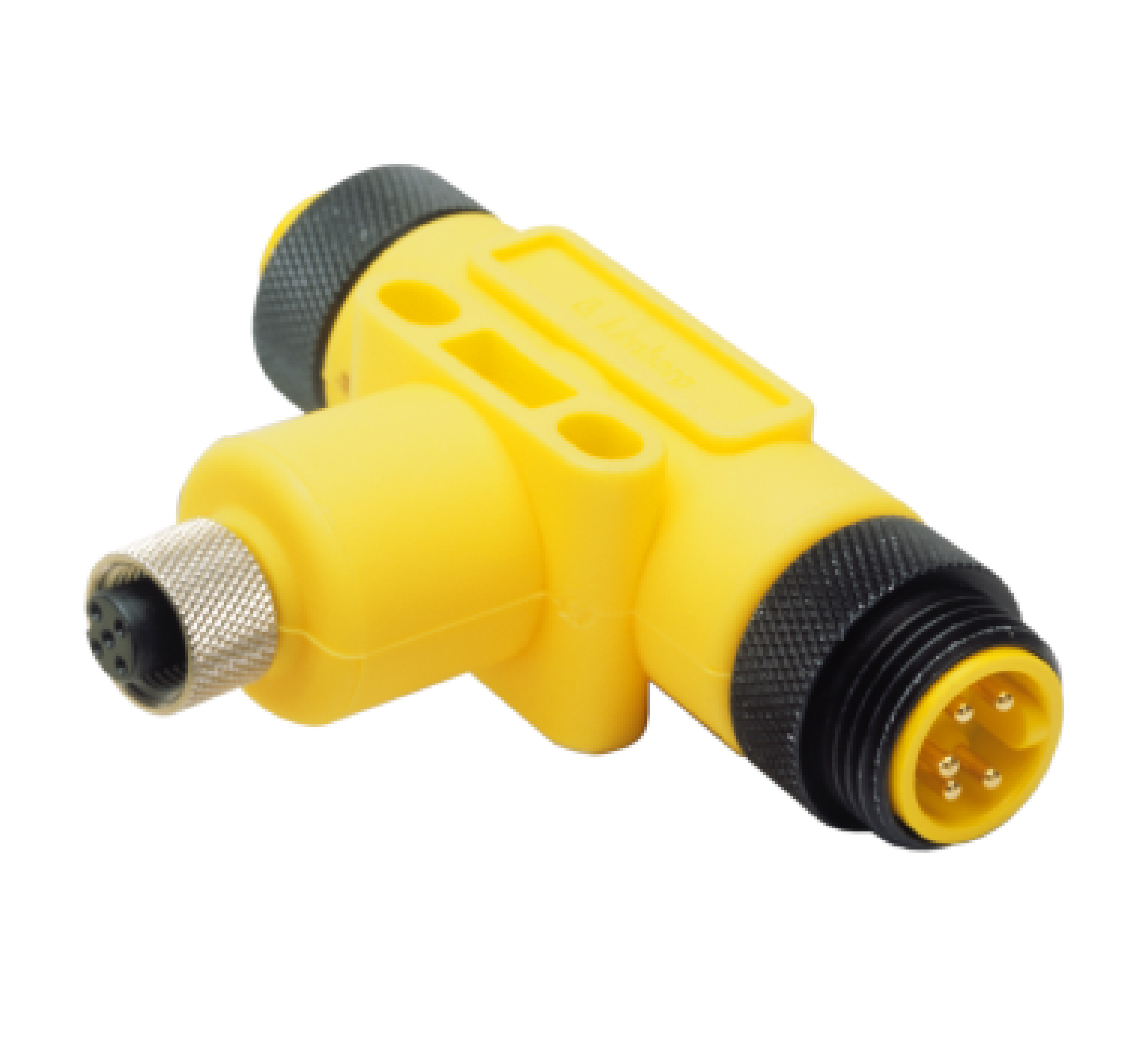

Connectors and cables | Y- and T-splitters | SDO-02D78-SF | Description: Unshielded | Connection type head A: Female connector, M12, 5-pin, A-coded | Connection type head B: Female connector, 7/8", 5-pin | Connection type head C: Male connector, 7/8", 5-pin
Connection type head A
Female connector, M12, 5-pin, A-coded
Connection type head B
Female connector, 7/8", 5-pin
Connection type head C
Male connector, 7/8", 5-pin
Locking nut material
Nickel-plated brass
Shielding, head
Unshielded
Shielding
Unshielded
Reference voltage
≤ 36 V DC, ≤ 36 V DC
Current loading
4 A, M127/8"
Operating temperature
–25 °C ... +90 °C, M12–40 °C ... +90 °C, 7/8"
Enclosure rating
IP68
Head
–25 °C ... +90 °C
ECLASS 5.0
27279201
ECLASS 5.1.4
27279201
ECLASS 6.0
27279201
ECLASS 6.2
27279201
ECLASS 7.0
27279201
ECLASS 8.0
27279201
ECLASS 8.1
27279201
ECLASS 9.0
27440108
ECLASS 10.0
27440108
ECLASS 11.0
27440108
ECLASS 12.0
27440108
ETIM 5.0
EC002585
ETIM 6.0
EC002585
ETIM 7.0
EC002585
ETIM 8.0
EC002585
UNSPSC 16.0901
31163032
