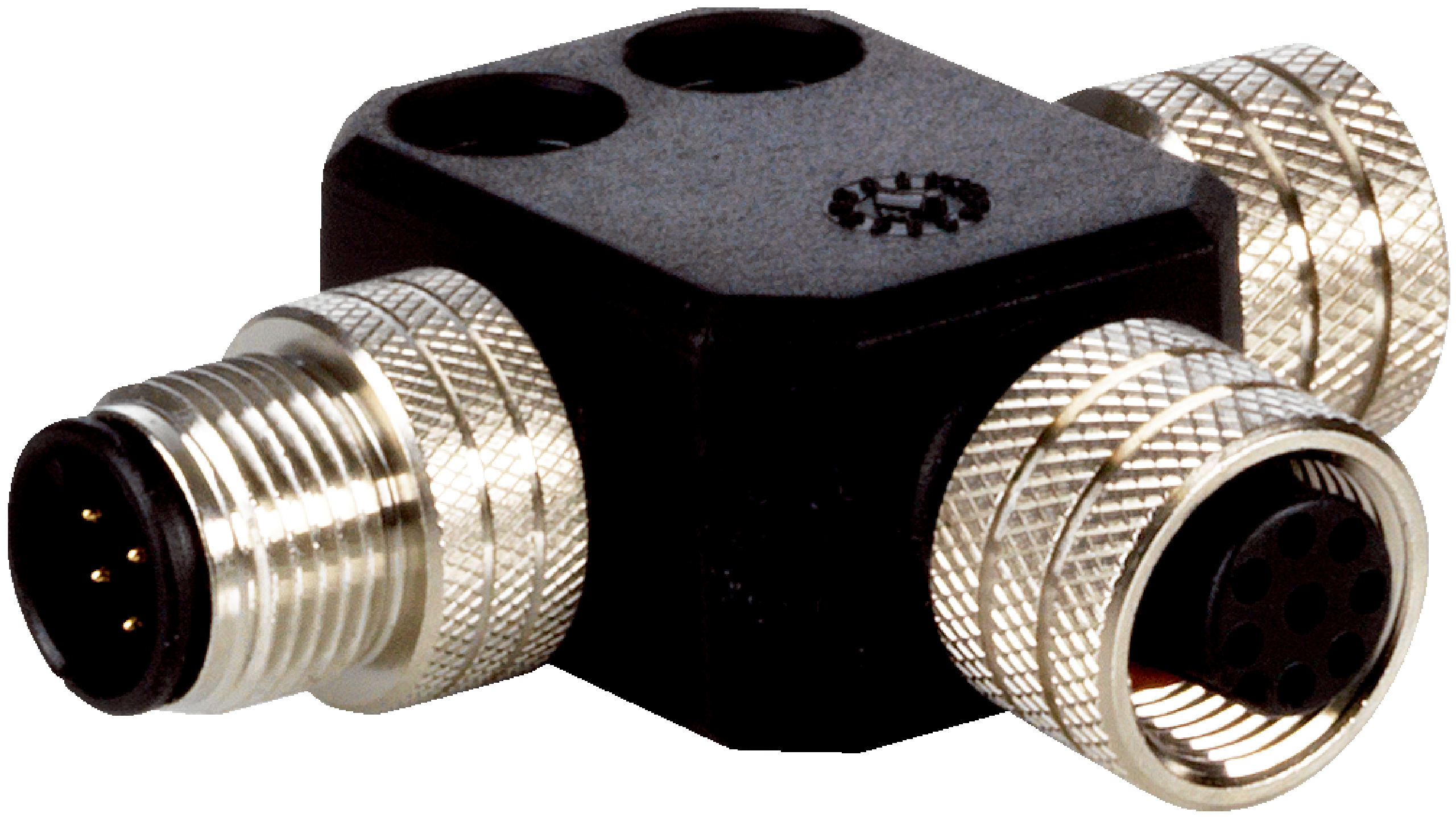

Connectors and cables | Y- and T-splitters | SBO-02F12-SF | Connection type head A: Male connector, M12, 8-pin, A-coded | Connection type head B: Female connector, M12, 8-pin, A-coded | Connection type head C: Male connector, M12, 8-pin, A-coded | Note: Parallel connected
Connection type head A
Male connector, M12, 8-pin, A-coded
Connection type head B
Female connector, M12, 8-pin, A-coded
Connection type head C
Male connector, M12, 8-pin, A-coded
Housing material
TPU
Connector material head A
TPU
Connector material head C
TPU
Housing color
Black
Locking nut material
CuZn, nickel-plated brass
Shielding, head
Unshielded
Reference voltage
≤ 36 V DC, ≤ 36 V DC
Current loading
4 A
Note
Parallel connected
ECLASS 5.0
27279201
ECLASS 5.1.4
27279201
ECLASS 6.0
27279201
ECLASS 6.2
27279201
ECLASS 7.0
27279201
ECLASS 8.0
27279201
ECLASS 8.1
27279201
ECLASS 9.0
27440108
ECLASS 10.0
27440108
ECLASS 11.0
27440108
ECLASS 12.0
27440108
ETIM 5.0
EC002585
ETIM 6.0
EC002585
ETIM 7.0
EC002585
ETIM 8.0
EC002585
UNSPSC 16.0901
31163032
Download Datasheet
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
