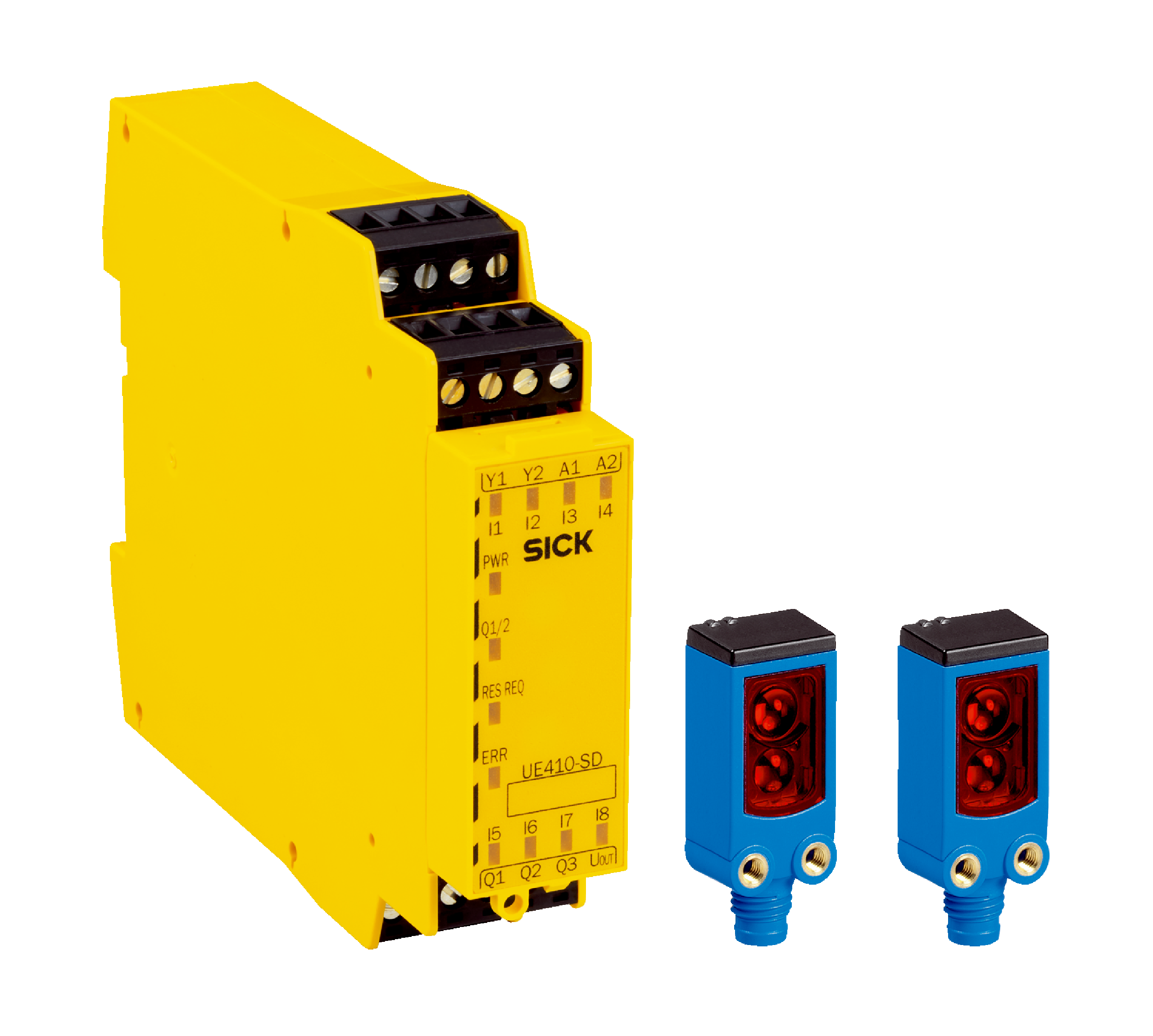

Safety systems | Safeguard Detector | SAPPD2D-06AP007 | Safeguard Detector variant: Box variant | Number of sensors: 2 pieces | Pulse frequency: 10 Hz | Connection type: Screw-type terminals | Connection type: Connector M8, 3-pin | Items supplied: 1 x UE410-SD300 safety evaluation module1 x SAPP02D-06A0001 MultiPulse sensor pair
Category
Category 3 (EN ISO 13849-1)
Performance level
PL d (EN ISO 13849-1)
PFHD(mean probability of a dangerous failure per hour)
1.5 * 10-7
DCavg(diagnostic coverage)
80 % (EN ISO 13849-1)
MTTFD(mean time to dangerous failure)
250 years (EN ISO 13849-1)
Items supplied
1 x UE410-SD300 safety evaluation module1 x SAPP02D-06A0001 MultiPulse sensor pair
Note
The UE410-SD safety evaluation module can be operated with one or two MultiPulse sensor pairs. The actuator can be connected directly to the UE410-SD safety evaluation module. The safety chain can also be expanded with additional logic elements (e.g., a higher-level safety controller).
Configuration method
Hard wired
Number of connectable sensor pairs
1 or 2
Pulse rate of the sensors
10 Hz
Supply voltage VS
24 V DC (19.2 V ... 30 V)
Protection class
III (EN 50178)
Response time of the overall safety system (sensors and safety evaluation module)
≤ 160 ms
Number of sensors
2 pieces
Detection zone
30 mm ... 100 mm1)
Remission
6 % ... 90 %
Pulse frequency
10 Hz
Response time
≤ 100 ms
Type of light
Visible red light
Wave length
650 nm
Light spot size (distance)
Ø 7 mm (50 mm)
Connection type
Connector M8, 3-pin
Voltage supply
Via UE410-SD
Enclosure rating
IP67 (EN 60529)
Ambient operating temperature
–40 °C ... +60 °C
ECLASS 5.0
27279090
ECLASS 5.1.4
27279090
ECLASS 6.0
27279090
ECLASS 6.2
27279090
ECLASS 7.0
27279090
ECLASS 8.0
27279090
ECLASS 8.1
27279090
ECLASS 9.0
27279090
ECLASS 10.0
27279090
ECLASS 11.0
27279090
ECLASS 12.0
27279090
ETIM 5.0
EC001449
ETIM 6.0
EC001449
ETIM 7.0
EC001449
ETIM 8.0
EC001449
UNSPSC 16.0901
32151705
