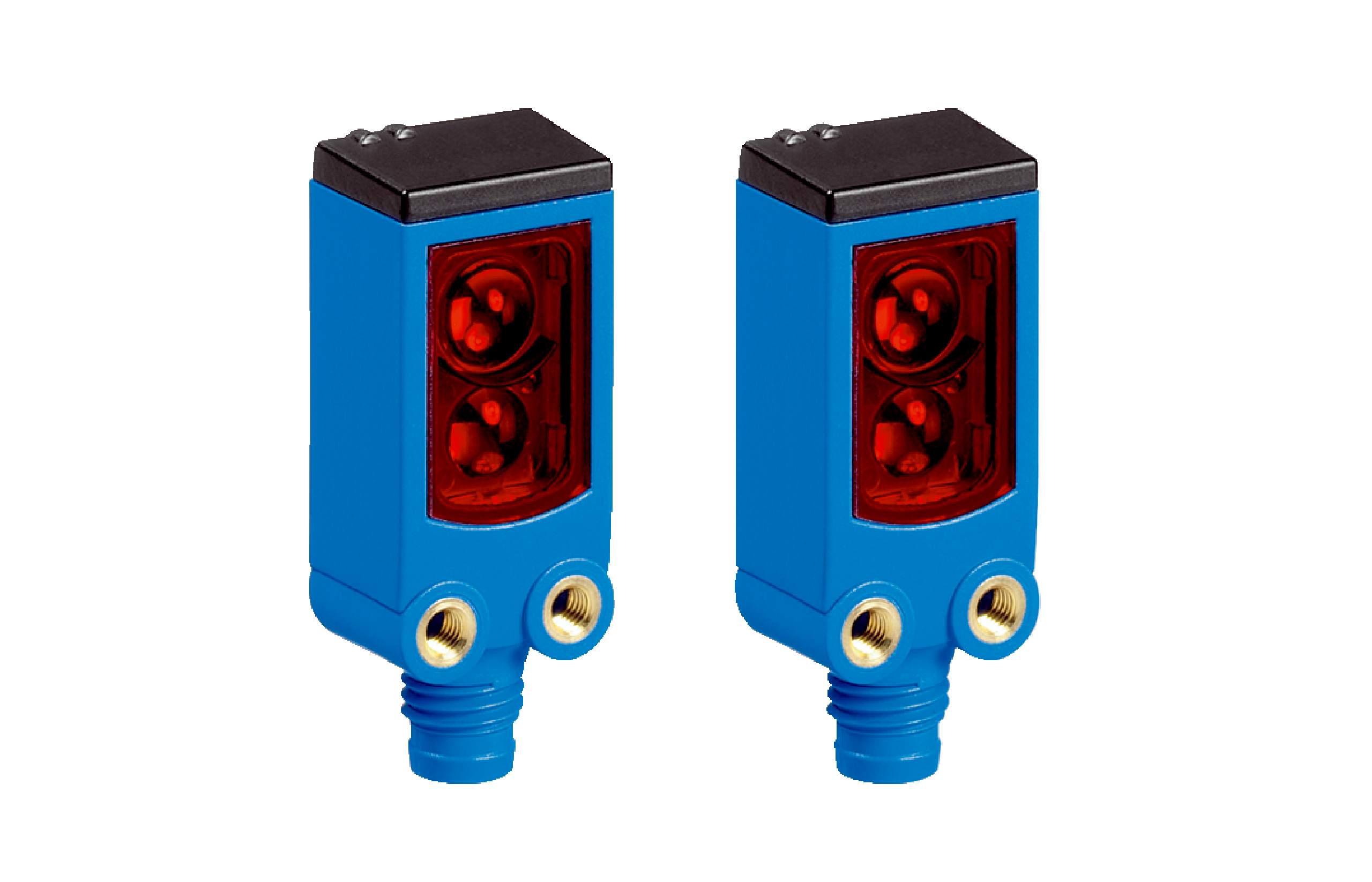

Safety systems | Safeguard Detector | SAPP02D-06A0001 | System part: Sensor pair | Safeguard Detector variant: Sensors | Number of sensors: 2 pieces | Pulse frequency: 10 Hz | Connection type: Connector M8, 3-pin | Items supplied: 1 x SAPP02D-06A0001 MultiPulse sensor pair
Items supplied
1 x SAPP02D-06A0001 MultiPulse sensor pair
Number of sensors
2 pieces
Detection zone
30 mm ... 100 mm1)
Remission
6 % ... 90 %
Pulse frequency
10 Hz
Response time
≤ 100 ms
Type of light
Visible red light
Wave length
650 nm
Light spot size (distance)
Ø 7 mm (50 mm)
Connection type
Connector M8, 3-pin
Voltage supply
Via Flexi Soft or via UE410-SD
Enclosure rating
IP67 (EN 60529)
Ambient operating temperature
–40 °C ... +60 °C
ECLASS 5.0
27279090
ECLASS 5.1.4
27279090
ECLASS 6.0
27279090
ECLASS 6.2
27279090
ECLASS 7.0
27279090
ECLASS 8.0
27279090
ECLASS 8.1
27279090
ECLASS 9.0
27279090
ECLASS 10.0
27279090
ECLASS 11.0
27279090
ECLASS 12.0
27279090
ETIM 5.0
EC001449
ETIM 6.0
EC001449
ETIM 7.0
EC001449
ETIM 8.0
EC001449
UNSPSC 16.0901
32151705
Télécharger la fiche technique
Manuels, modèles CAO, certificats et autres documents — sur le site du fabricant :
Ouvrir la page produit sur le site du fabricant
