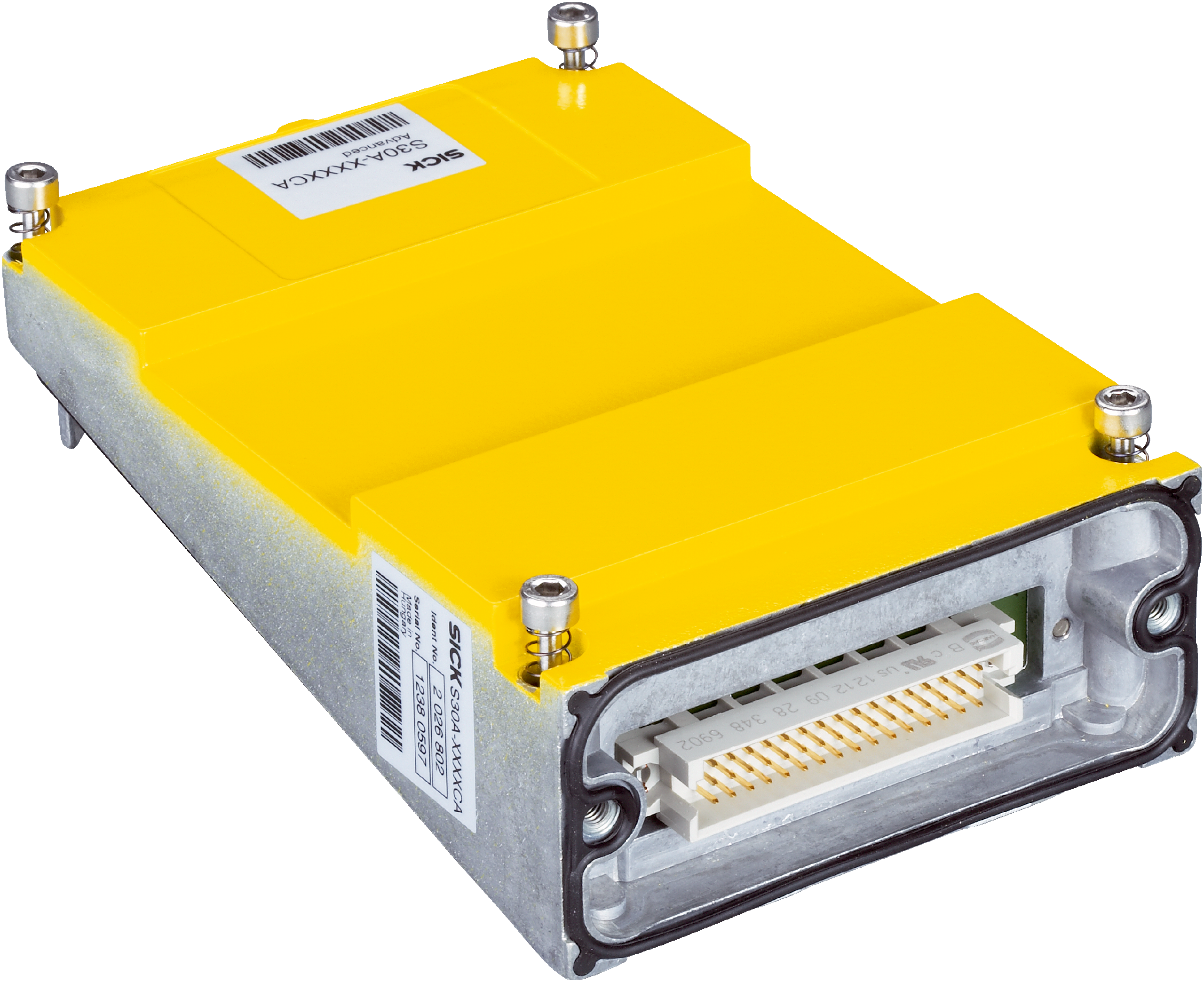

Safety laser scanners | S3000 Remote | S30A-XXXXEA | Model: I/O module
Model
I/O module
Application
Indoor
Number of simultaneously monitored protective fields
≤ 41)
Angular resolution
Depending on range and resolution
Response time
60 ms2)
Type
Type 3 (IEC 61496)
Safety integrity level
SIL 2 (IEC 61508)
Category
Category 3 (EN ISO 13849)
Performance level
PL d (EN ISO 13849)
PFHD(mean probability of a dangerous failure per hour)
8.0 x 10-8
TM(mission time)
20 years (EN ISO 13849)
External device monitoring (EDM)
✔
Integrated configuration memory
✔
Measured data output
Via RS-422
Safe SICK device communication via EFI
✔
Protection class
II (EN 50178)
Supply voltage Vs
24 V DC (16.8 V DC ... 28.8 V DC)
Power consumption
0.8 A1)2.3 A2)
Output signal switching devices (OSSDs)
2 x 500 mA
Application diagnostic outputs
3 x 100 mA3)
Enclosure rating
IP65 (EN 60529)
Ambient operating temperature
–10 °C ... +50 °C
Storage temperature
–25 °C ... +50 °C
Vibration resistance
IEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5, IEC TR 60721-4-5, IEC 61496-3
Shock resistance
IEC 60068-2-27, IEC 60721-3-5, IEC TR 60721-4-5, IEC 61496-3
Class
5M1 (IEC 60721-3-5)
Continuous shock
50 m/s², 11 ms
ECLASS 5.1.4
27272705
ECLASS 6.0
27272705
ECLASS 7.0
27272705
ECLASS 8.0
27272705
ECLASS 9.0
27272705
ECLASS 10.0
27272705
ECLASS 11.0
27272705
ECLASS 12.0
27272705
ECLASS 13.0
27272705
ECLASS 14.0
27272705
ECLASS 15.0
27272705
ETIM 6.0
EC002550
ETIM 7.0
EC002550
ETIM 8.0
EC002550
ETIM 9.0
EC002550
ETIM 10.0
EC002550
UNSPSC 091201.0
39121528
UNSPSC 100501.0
39121528
UNSPSC 111201.0
39121528
UNSPSC 120901.0
39121528
UNSPSC 131201.0
39121528
UNSPSC 140801.0
39121528
UNSPSC 151101.0
39121528
UNSPSC 160901.0
39121528
UNSPSC 171001.0
39121528
UNSPSC 180801.0
39121528
UNSPSC 190501.0
39121528
UNSPSC 200601.0
39121528
UNSPSC 210901.0
39121528
UNSPSC 220601.0
39121528
UNSPSC 230701.0
39121528
UNSPSC 240301.0
39121528
UNSPSC 250901.0
39121528
UNSPSC 260801.0
39121528
