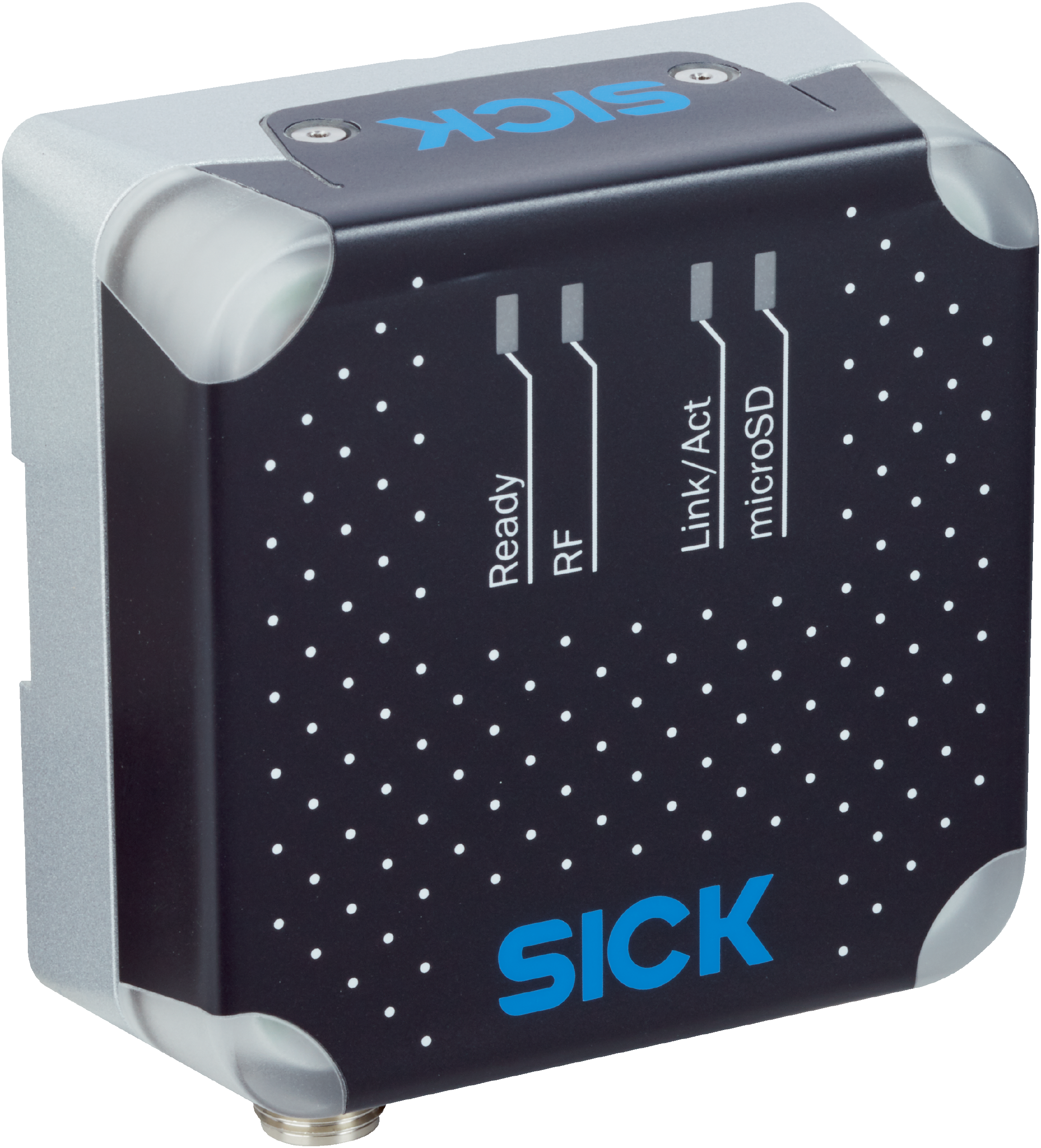

RFID | RFU61x | RFU610-10705 | Radio approval: China | Frequency band: UHF (860 MHz ... 960 MHz) | Reading range: ≤ 0.5 m | Enclosure rating: IP67
Version
Short Range
Product category
RFID read/write device with integrated antenna
Radio approval
China
Frequency band
UHF (860 MHz ... 960 MHz)
Carrier frequency
920.625 MHz ... 924.375 MHz
Output power
25 mW (ERP, 14 dBm)
RFID standard
EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
Modulation
PR-ASK
Aperture angle
110°
Reading range
≤ 0.5 m1)
Antenna
Integrated
Transmitting power
Adjustable
Polarization
Circular
Axial ratio
Typ. 2 dB
Front-to-back ratio
> 5 dB

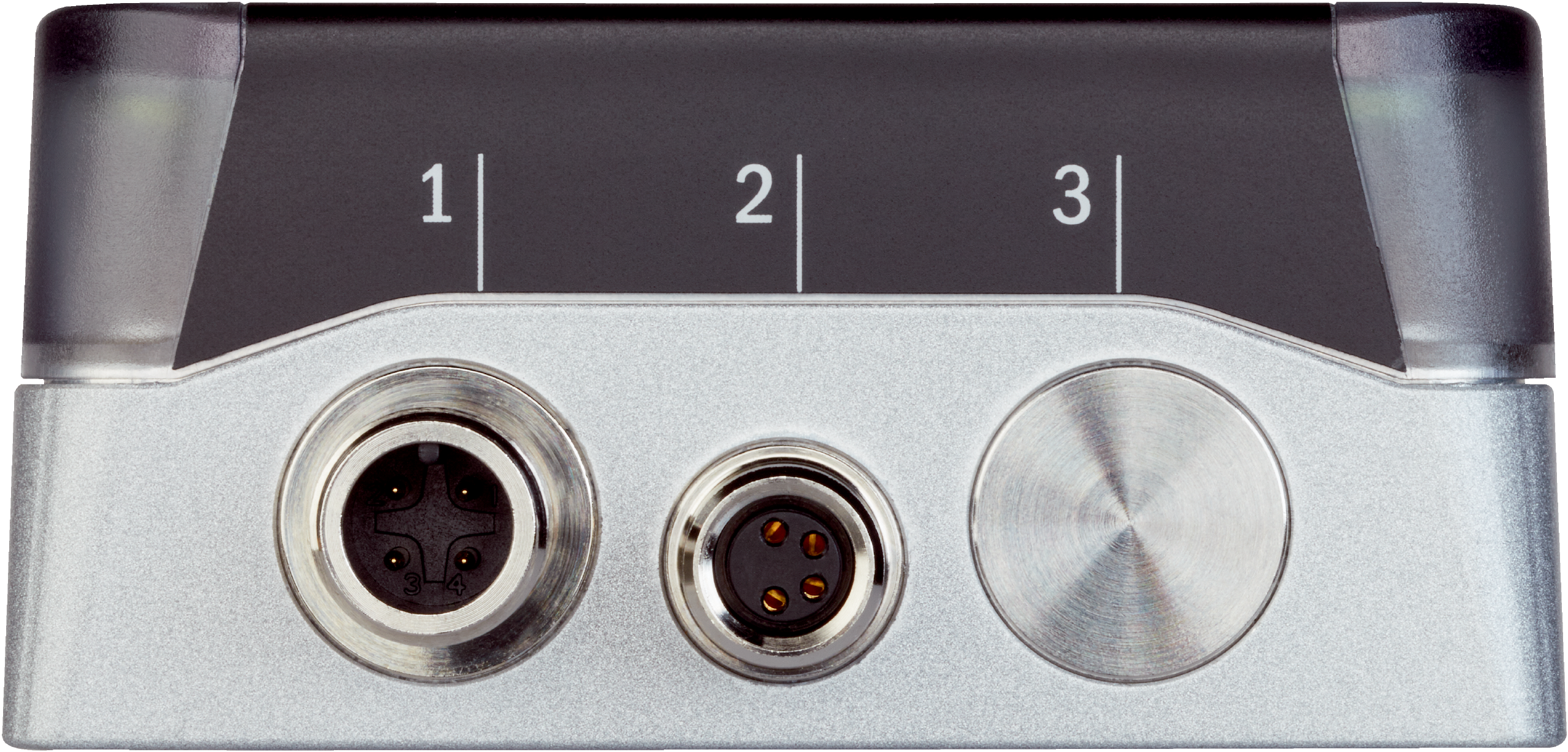

Connection type
1 x M12, 4-pin male connector, A-coded1 x M8, 4-pin socket1 x USB, 5-pin micro-B socket
Supply voltage
18 V DC ... 30 V DC
Power consumption
6 W, standby 3 W
Housing material
Aluminum die castPlastic (PPS)
Enclosure rating
IP67
Protection class
III
Weight
313 g
Dimensions (L x W x H)
92 mm x 80 mm x 38 mm
MTBF
22.25 years1)
IO-Link
✔ , IO-Link V1.1
Remark
Process data length: IN (input), 32 bytes; OUT (output), 32 bytes, SIO mode not supported
Function
Process data, parameterization, diagnosis
Data transmission rate
COM3 (230,4 kBaud)
Digital inputs
1 (physical, switching, trigger sensor can be connected directly to the device (port 3))
Optical indicators
4 LEDs, multi-color (device status)4 RGB LED (Process feedback)
Configuration software
PLC softwareSOPAS ET1)
Memory card
Micro SD memory card
Electromagnetic compatibility (EMC)
EN 301489-1 V2.1.1 (2017) / EN 301489-3 V1.6.1 (2013)
Vibration resistance
IEC 60068-2-6:2007IEC 60068-2-64:2008
Shock resistance
EN 60068-2-27:2008
Ambient operating temperature
–25 °C ... +50 °C
Storage temperature
–40 °C ... +70 °C
Relative humidity
90 %, Non-condensing
China RoHS
✔
Radio Approval certificate China
✔
RAIN RFID
✔
ECLASS 5.0
27280401
ECLASS 5.1.4
27280401
ECLASS 6.0
27280401
ECLASS 6.2
27280401
ECLASS 7.0
27280401
ECLASS 8.0
27280401
ECLASS 8.1
27280401
ECLASS 9.0
27280401
ECLASS 10.0
27280401
ECLASS 11.0
27280401
ECLASS 12.0
27280401
ETIM 5.0
EC002998
ETIM 6.0
EC002998
ETIM 7.0
EC002998
ETIM 8.0
EC002998
UNSPSC 16.0901
52161523
