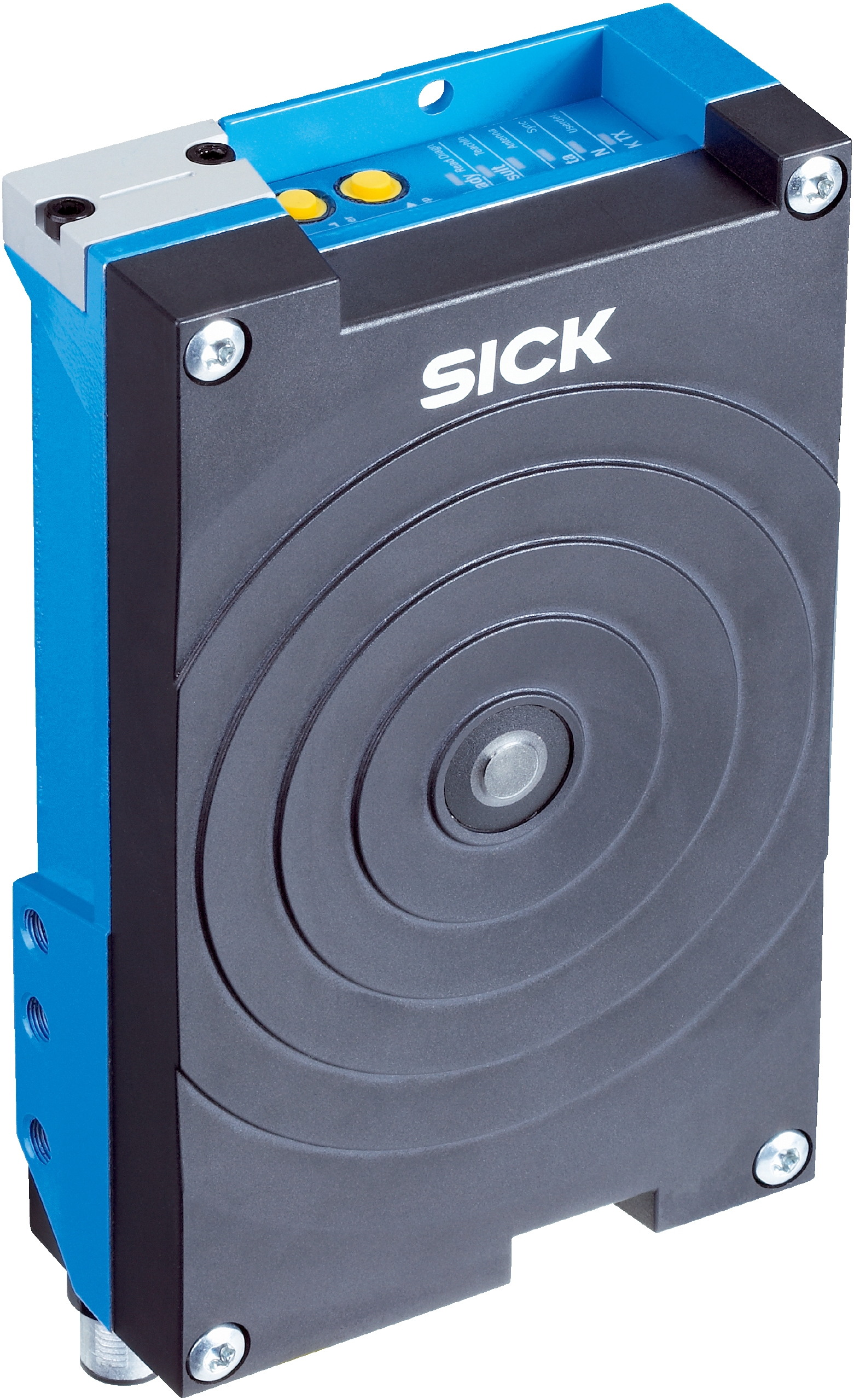

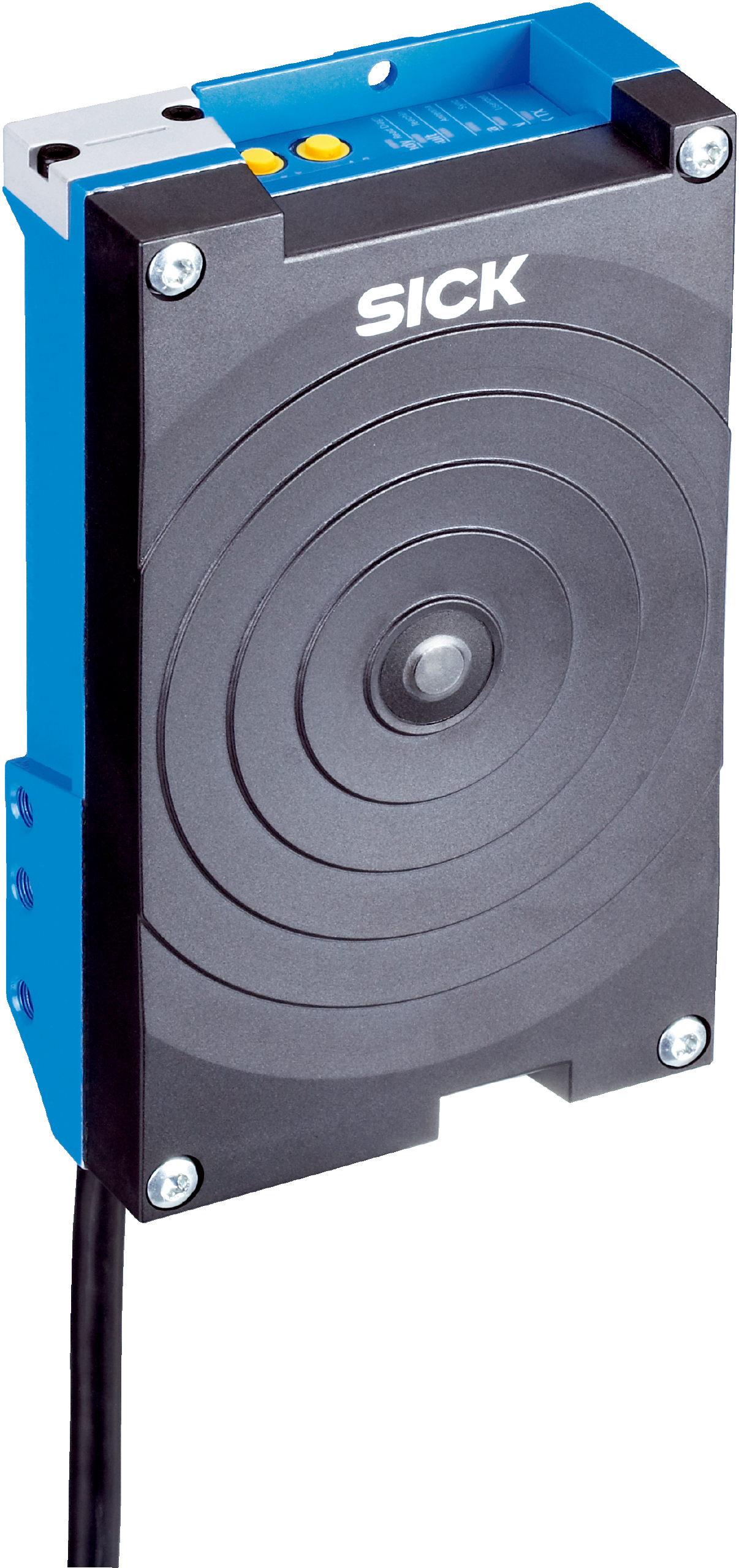

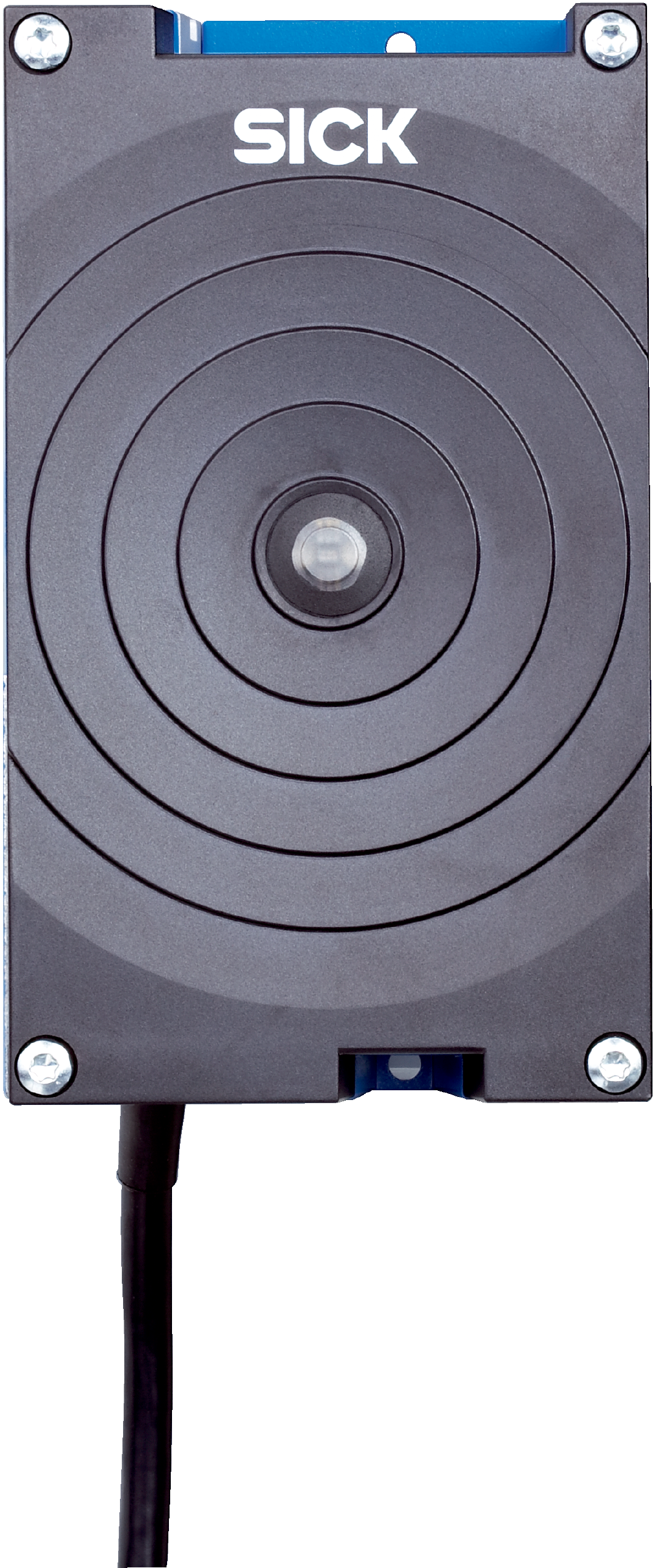

RFID | RFH6xx | RFH630-1000001 | Radio approval: Global | Frequency band: HF (13.56 MHz) | Reading range: ≤ 240 mm | Enclosure rating: IP67
Version
Mid Range
Product category
RFID read/write device with integrated antenna
Radio approval
Global
Frequency band
HF (13.56 MHz)
Carrier frequency
13.56 MHz
RFID standard
ISO/IEC 15693, ISO/IEC 18000-3 “Mode 1”
Reading range
≤ 240 mm1)
Antenna
Integrated
Typical access times
UID read (64 bits/8 bytes): 18 msRead 1 block (32 bit/4 Byte): 13 msWrite 1 block (32 bit/4 Byte): 16 msRead 28 blocks (896 bit/112 Byte): 64 msWrite 28 blocks (896 bit/112 Byte): 442 ms
Air interface data transmission rate
26 kbit/s (default)
Connection type
1 x cable, 15-pin D-Sub HD male connector
Supply voltage
10 V DC ... 30 V DC
Power consumption
Typ. 8 W
Housing material
Aluminum die castPlastic (PPS)
Housing color
Blue, black
Enclosure rating
IP67
Protection class
III
Weight
+ 760 g, with connecting cable
Dimensions (L x W x H)
147 mm x 88 mm x 39 mm
MTBF
> 100 years
PROFINET
✔
EtherCAT®
✔
Serial
✔ , RS-232, RS-422, RS-485
CAN
✔
Remark
CSN (SICK CAN Sensor Network)
CANopen
✔
Data transmission rate
20 kbit/s ... 1,000 kbit/s
PROFIBUS DP
✔
Type of fieldbus integration
Optional over external fieldbus module CDF600-2
Function
Data interface (read result output)
Digital inputs
2 (physical, 2 additional logical inputs via optional CMC600 parameter memory in CDB620 / CDM420)
Digital outputs
2 (physical, 2 additional logical outputs via optional CMC600 parameter memory in CDB620 / CDM420)
Optical indicators
6 LEDs, multi-color (device status)1 RGB LED (Process feedback)
Acoustic indicators
1 beeper (Feedback)
Configuration software
SOPAS ET1)
Memory card
microSD memory card (parameter cloning)
Electromagnetic compatibility (EMC)
EN 301489-3
Vibration resistance
EN 60068-2-64:2008-02
Shock resistance
EN 60068-2-27:2009-05
Ambient operating temperature
–20 °C ... +50 °C
Storage temperature
–25 °C ... +70 °C
Relative humidity
95 %, Non-condensing
EU declaration of conformity
✔
UK declaration of conformity
✔
China RoHS
✔
Profinet certificate
✔
Ethernet/IP certificate
✔
BIS registration
✔
Radio Approval certificate India
✔
Radio Approval certificate Singapore
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
4Dpro
✔
ECLASS 5.0
27280401
ECLASS 5.1.4
27280401
ECLASS 6.0
27280401
ECLASS 6.2
27280401
ECLASS 7.0
27280401
ECLASS 8.0
27280401
ECLASS 8.1
27280401
ECLASS 9.0
27280401
ECLASS 10.0
27280401
ECLASS 11.0
27280401
ECLASS 12.0
27280401
ETIM 6.0
EC002998
ETIM 7.0
EC002998
ETIM 8.0
EC002998
UNSPSC 16.0901
52161523
