Antennas | RFID antennas | RFA630-100 | Carrier frequency: 865 MHz ... 868 MHz | Dimensions (L x W x H): 239 mm x 239 mm x 65 mm
Product segment
Antennas, RFID, RFID
Product
RFID antennas
Description

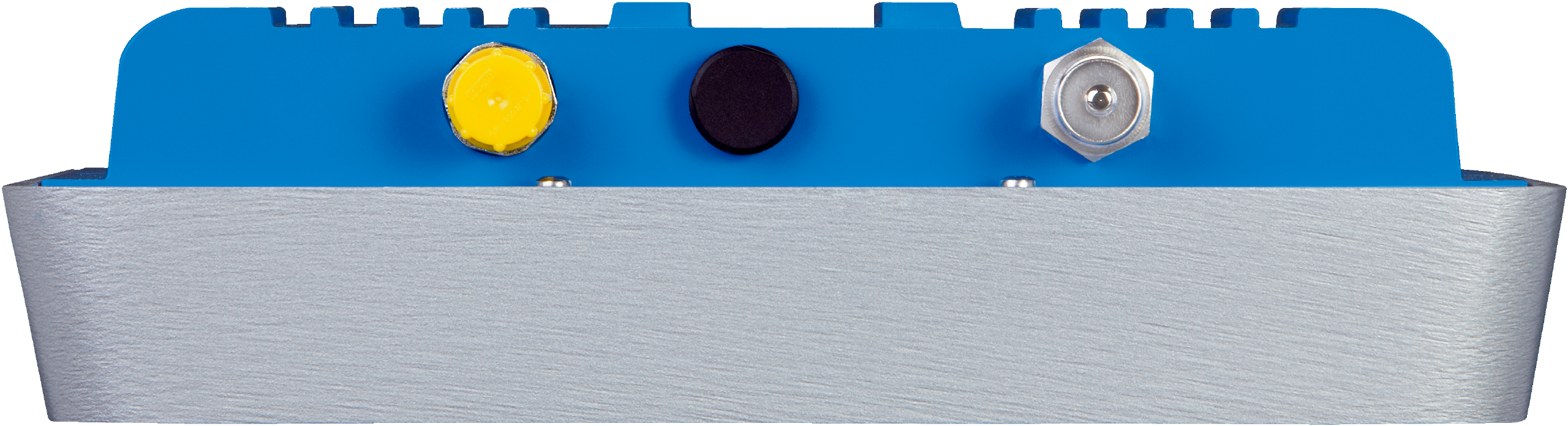

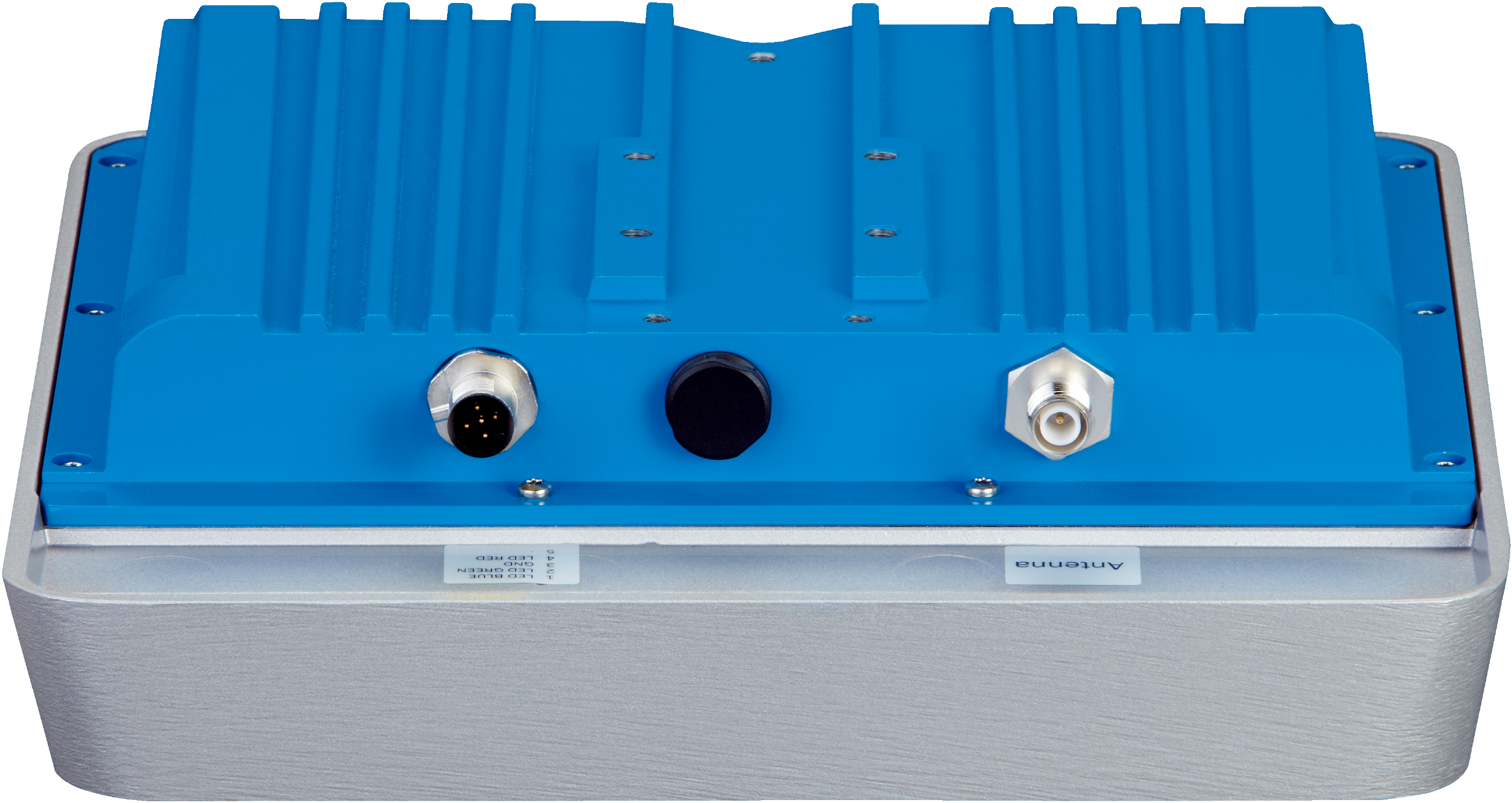

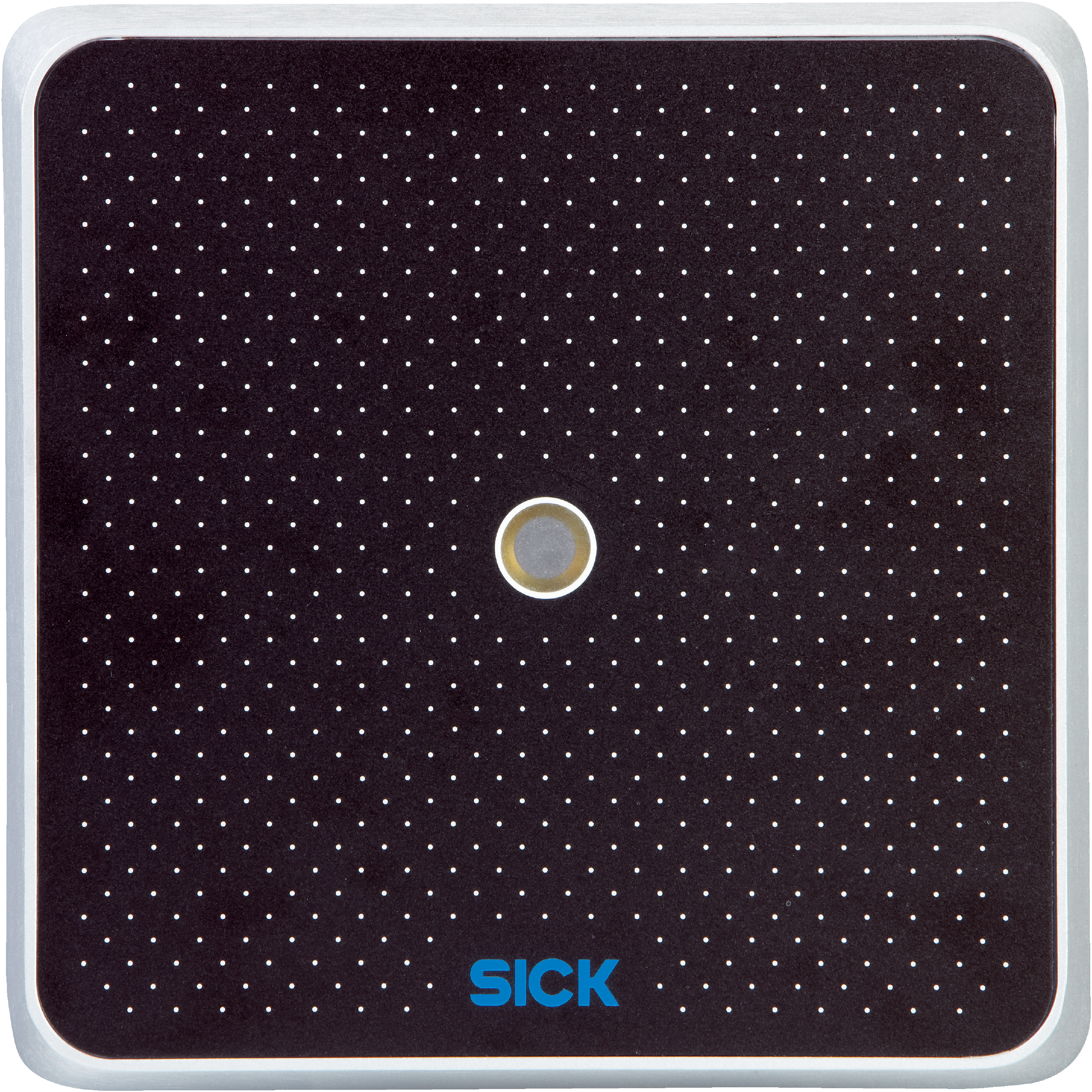

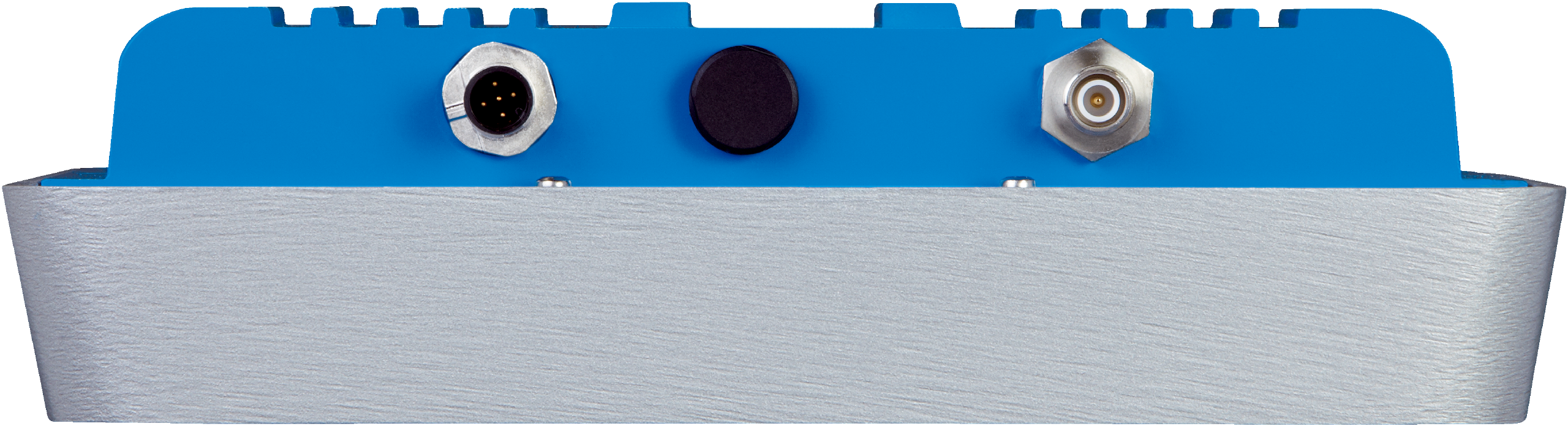

Industrial RFID UHF antenna, carrier frequency 865 ... 868 MHz (Europe, India, Russia, South Africa, Saudi Arabia), TNC male connector, with integrated feedback LED (RGB)
Version
Long Range
Frequency band
UHF (860 MHz ... 960 MHz)
Carrier frequency
865 MHz ... 868 MHz
Output power
2 W ERP
Polarization
Circular polarised / RHCP
Voltage standing wave ratio
< 1.2
Gain
Typ. 9 dBic
3 dB aperture angle
Typ. 72°
Optical indicators
1 LED, multi-colored
Housing material
AluminumPolycarbonat (front)
Enclosure rating
IP67
Ambient operating temperature
–25 °C ... +50 °C
Storage temperature
–30 °C ... +70 °C
Permissible relative humidity
95 %, Non-condensing
Dimensions (W x H x L)
239 mm x 65 mm x 239 mm
Weight
+ 3,000 g
EU declaration of conformity
✔
UK declaration of conformity
✔
China RoHS
✔
ECLASS 5.1.4
27279090
ECLASS 6.0
27279090
ECLASS 7.0
27279090
ECLASS 8.0
27279090
ECLASS 9.0
27279090
ECLASS 10.0
27279090
ECLASS 11.0
27279090
ECLASS 12.0
27279090
ECLASS 13.0
27279090
ECLASS 14.0
27279090
ECLASS 15.0
27279090
ETIM 6.0
EC002467
ETIM 7.0
EC002467
ETIM 8.0
EC002467
ETIM 9.0
EC002467
ETIM 10.0
EC002467
UNSPSC 091201.0
32151705
UNSPSC 100501.0
32151705
UNSPSC 111201.0
32151705
UNSPSC 120901.0
32151705
UNSPSC 131201.0
32151705
UNSPSC 140801.0
32151705
UNSPSC 151101.0
32151705
UNSPSC 160901.0
32151705
UNSPSC 171001.0
32151705
UNSPSC 180801.0
32151705
UNSPSC 190501.0
32151705
UNSPSC 200601.0
32151705
UNSPSC 210901.0
32151705
UNSPSC 220601.0
32151705
UNSPSC 230701.0
32151705
UNSPSC 240301.0
32151705
UNSPSC 250901.0
32151705
UNSPSC 260801.0
32151705
