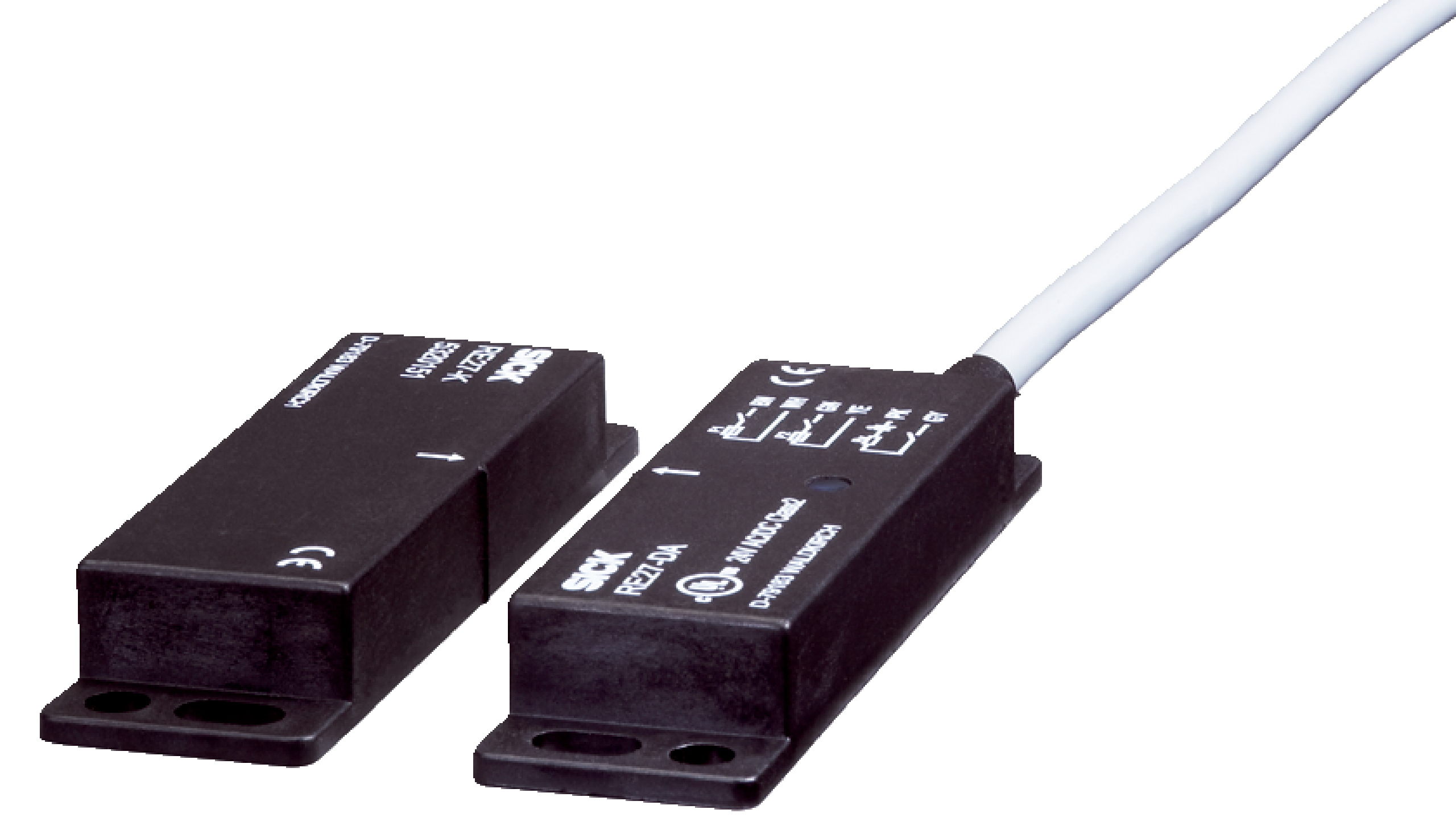

Non-contact safety switches | RE27 | RE27-DA05L | Systemteil: Sensor with actuator | Number of N/O contacts: 3 | Number of N/C contacts: 0 | Connection type Detail: Cable | Length of cable: 5 m | Status display: yes
System part
Sensor with actuator
Sensor principle
Magnetic
Number of N/O contacts
3
Number of N/C contacts
0
Safe switch on distance Sao
9 mm
Safe switch off distance Sar
20 mm
B10dparameter
2 x 107switching cycles
Connection type
Cable
Length of cable
5 m
Cable material
PVC
Status display
✔
Type of output
Reed contacts
Switching voltage
≤ 30 V DC
Switching current
≤ 100 mA≤ 10 mA1)
Design
Rectangular
Dimensions (W x H x D)
25 mm x 88 mm x 13 mm
Weight
0.156 kg
Housing material
Glass-fiber reinforced PPS
Enclosure rating
IP67
Ambient operating temperature
–20 °C ... +60 °C
Storage temperature
–20 °C ... +60 °C
Vibration resistance
10 Hz ... 55 Hz, 1 mm (EN 60947-5-3)
Shock resistance
30 g, 11 ms (EN 60947-5-3)
ECLASS 5.0
27272402
ECLASS 5.1.4
27272402
ECLASS 6.0
27272402
ECLASS 6.2
27272402
ECLASS 7.0
27272402
ECLASS 8.0
27272402
ECLASS 8.1
27272402
ECLASS 9.0
27272402
ECLASS 10.0
27272402
ECLASS 11.0
27272402
ETIM 5.0
EC002544
ETIM 6.0
EC002544
ETIM 7.0
EC002544
ETIM 8.0
EC002544
UNSPSC 16.0901
39122205
