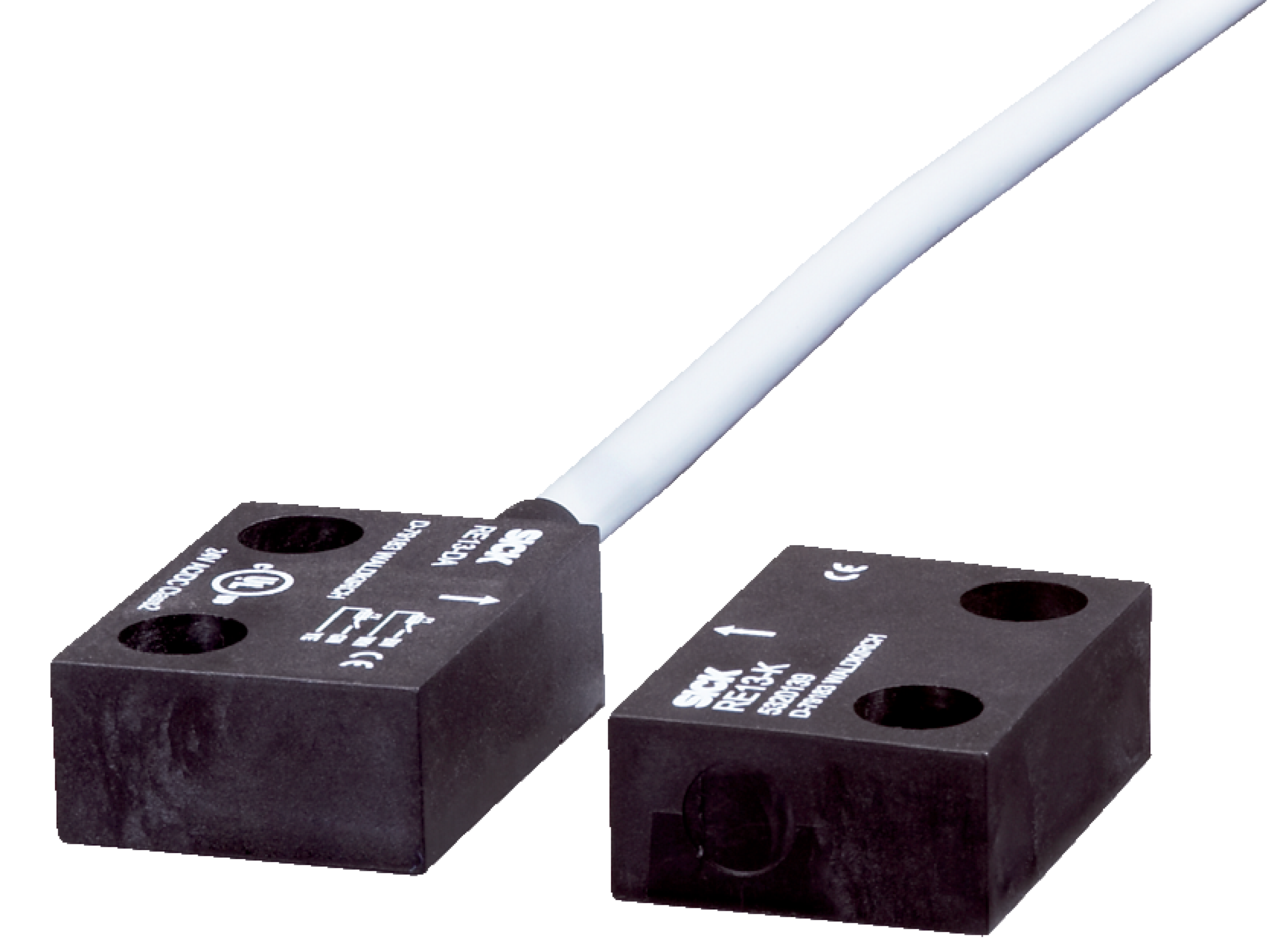

Non-contact safety switches | RE13/RE23 | RE13-DAP | Systemteil: Sensor with actuator | Number of N/O contacts: 2 | Number of N/C contacts: 0 | Connection type Detail: Cable with M8 male connector, 4-pin | Length of cable: 0.2 m | Safe series connection: None, only individual wiring (with diagnostics) | Status display: no
System part
Sensor with actuator
Sensor principle
Magnetic
Number of N/O contacts
2
Number of N/C contacts
0
Safe switch on distance Sao
7 mm
Safe switch off distance Sar
20 mm
Actuation directions
3
B10dparameter
2 x 107switching cycles
Safe series connection
None, only individual wiring (with diagnostics)
Connection type
Cable with M8 male connector, 4-pin
Length of cable
0.2 m
Type of output
Reed contacts
Switching voltage
≤ 30 V DC
Switching current
≤ 100 mA
Design
Rectangular
Dimensions (W x H x D)
26 mm x 36 mm x 13 mm
Weight
51 g
Housing material
Glass-fiber reinforced PPS
Enclosure rating
IP67
Ambient operating temperature
–20 °C ... +60 °C
Storage temperature
–20 °C ... +60 °C
Vibration resistance
10 Hz ... 55 Hz, 1 mm (EN 60947-5-3)
Shock resistance
30 g, 11 ms (EN 60947-5-3)
ECLASS 5.0
27272402
ECLASS 5.1.4
27272402
ECLASS 6.0
27272402
ECLASS 6.2
27272402
ECLASS 7.0
27272402
ECLASS 8.0
27272402
ECLASS 8.1
27272402
ECLASS 9.0
27272402
ECLASS 10.0
27272402
ECLASS 11.0
27272402
ETIM 5.0
EC002544
ETIM 6.0
EC002544
ETIM 7.0
EC002544
ETIM 8.0
EC002544
UNSPSC 16.0901
39122205
