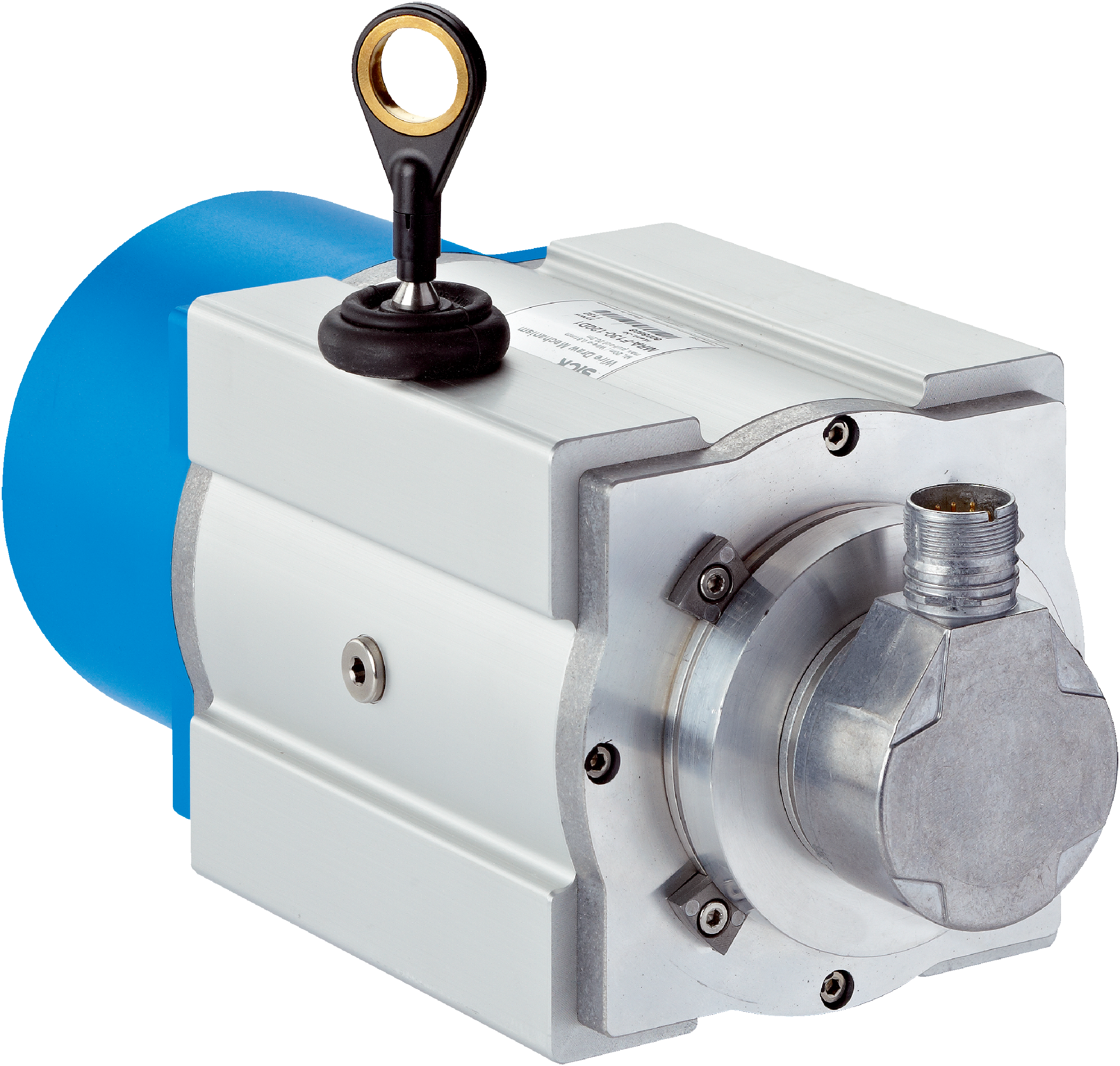

Wire draw encoders | HighLine | PRF13-C1AM2020 | Measuring range: 0 m ... 20 m | Communication interface: Incremental / TTL / RS-422 | Supply voltage: 10 V ... 32 V | Connection type: Male connector, M23, 12-pin, radial | Mounted encoder: DFS60, DFS60B-S1MA10000, 1056866 | Mounted mechanic: MRA-F130-120D1, 6028628 | Programmable/configurable: yes
MTTFD(mean time to dangerous failure)
300 years (EN ISO 13849-1)1)
Measurement range
0 m ... 20 m
Encoder
Incremental encoders
Resolution (wire draw + encoder)
0.03 mm1)2)
Repeatability
≤ 2 mm3)
Linearity
≤ ± 2 mm3)
Hysteresis
≤ 5 mm3)
Communication interface
Incremental / TTL / RS-422
Programmable/configurable
✔
Factory setting
The built-on DFS60 encoders are programmed to the specified number of lines and interface prior to delivery. The electrical interface (TTL/HTL) and the number of lines (up to max. 10,000 lines) can be set in accordance with customer requirements with our programming devices for DFS60 encoders, which are available separately.
Connection type
Male connector, M23, 12-pin, radial
Supply voltage
10 V ... 32 V
Power consumption
≤ 0.7 W (without load)
Weight
5.3 kg
Measuring wire material
Highly flexible stranded steel 1,4401 stainless steel V4A
Measuring wire diameter
0.81 mm
Weight (measuring wire)
2.6 g/m
Housing material, wire draw mechanism
Aluminum (anodised), plastic
Spring return force
10 N ... 20 N1)
Length of wire pulled out per revolution
332.4 mm
Life of wire draw mechanism
Typ. 1,000,000 cycles2)3)
Actual wire draw length
20.2 m
Wire acceleration
30 m/s²
Operating speed
6 m/s
Mounted encoder
DFS60, DFS60B-S1MA10000, 1056866
Mounted mechanic
MRA-F130-120D1, 6028628
EMC
According to EN 61000-6-2 and EN 61000-6-3
Enclosure rating
IP64, mounted mechanicIP67, Encoder (IEC 60529)1)
Operating temperature range
–30 °C ... +70 °C
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
ECLASS 5.0
27270590
ECLASS 5.1.4
27270590
ECLASS 6.0
27270590
ECLASS 6.2
27270590
ECLASS 7.0
27270590
ECLASS 8.0
27270590
ECLASS 8.1
27270590
ECLASS 9.0
27270590
ECLASS 10.0
27270613
ECLASS 11.0
27270503
ECLASS 12.0
27270503
ETIM 5.0
EC001486
ETIM 6.0
EC001486
ETIM 7.0
EC001486
ETIM 8.0
EC001486
UNSPSC 16.0901
41112113
