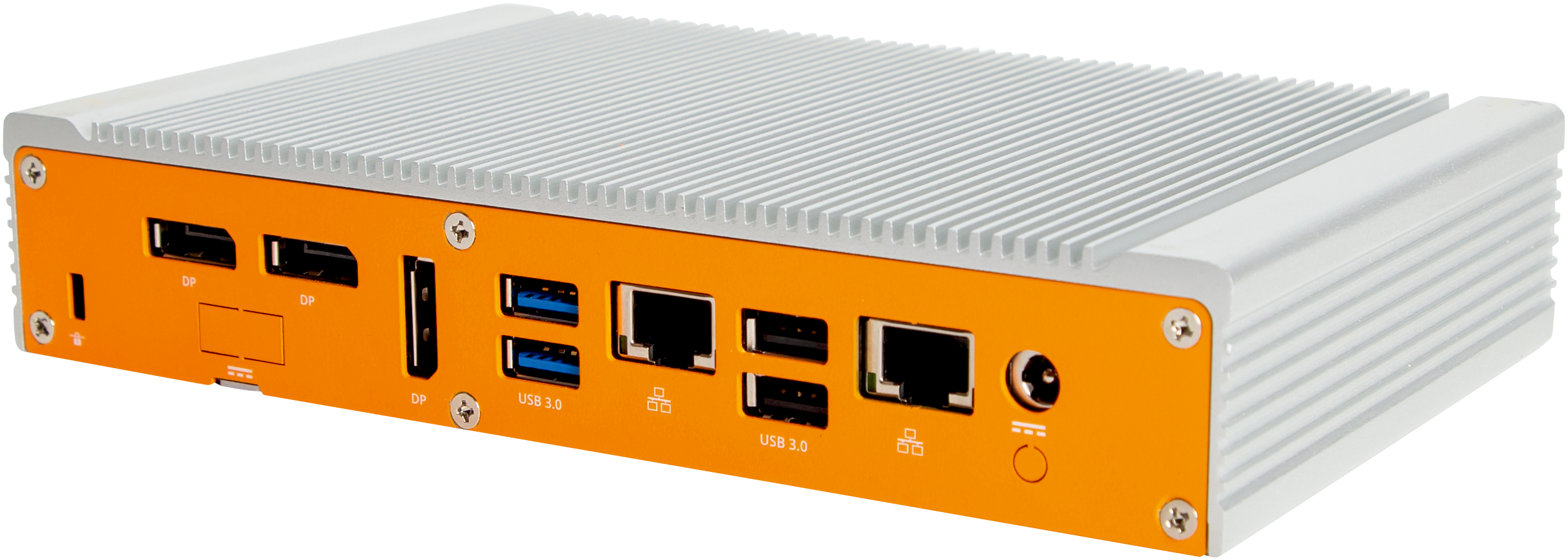

Commissioning aids and test equipment | Configuration devices | PC, PLB HX310 ROBOTIC CORE | Dimensions (W x H x L): 196 mm36.75 mm120.8 mm, 7.72 ″1.45 ″4.76 ″ | Operating system: 1 x Windows 10 IoT Enterprise 2021 LTSC Entry (Atom) - 64 Bit
Product segment
Commissioning aids and test equipment
Product
Configuration devices
Processor
1 x Intel Pentium J6426 (Elkhart Lake) 2.0~3.0 GHz 4-core Processor
Memory (RAM)
2 x 8 GB SO-DIMM DDR4 3200
Primary Storage
1 x 256 GB M.2 SSD
AC Adapter
1 x 12V, 36W, 3A - Interchangeable Plug
Operating system
1 x Windows 10 IoT Enterprise 2021 LTSC Entry (Atom) - 64 Bit
Accessories
1 x DIN Rail Mounting Kit (Back)
Assembly and validation
1 x standard design (shipment 3-5 working days after availability of the parts)
Input/output (rear)
3x DisplayPort connection, 3x Gb LAN connection, 2x USB 3.2 connection, 2x USB 2.0 connection, 1x jack socket for power supply with 12~24 V input (terminal block optional)
Input/output (front)
1x USB 2.0 connection, 1x USB 3.2 connection, Switch-on button
Dimensions (W x H x L)
196 mm x 36.75 mm x 120.8 mm7.72 ″ x 1.45 ″ x 4.76 ″
ECLASS 5.1.4
0
ECLASS 6.0
0
ECLASS 7.0
0
ECLASS 8.0
0
ECLASS 9.0
0
ECLASS 10.0
0
ECLASS 11.0
27381591
ECLASS 12.0
27381591
ECLASS 13.0
27381591
ECLASS 14.0
27381591
ECLASS 15.0
27381591
ETIM 7.0
EC003554
ETIM 8.0
EC003554
ETIM 9.0
EC003554
ETIM 10.0
EC003554
UNSPSC 091201.0
23153200
UNSPSC 100501.0
23153200
UNSPSC 111201.0
23153200
UNSPSC 120901.0
23153200
UNSPSC 131201.0
23153200
UNSPSC 140801.0
23153200
UNSPSC 151101.0
23153200
UNSPSC 160901.0
23153200
UNSPSC 171001.0
23153200
UNSPSC 180801.0
23153200
UNSPSC 190501.0
23153200
UNSPSC 200601.0
23153200
UNSPSC 210901.0
23153200
UNSPSC 220601.0
23153200
UNSPSC 230701.0
23153200
UNSPSC 240301.0
23153200
UNSPSC 250901.0
23153200
UNSPSC 260801.0
23153200
Download Datasheet
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
