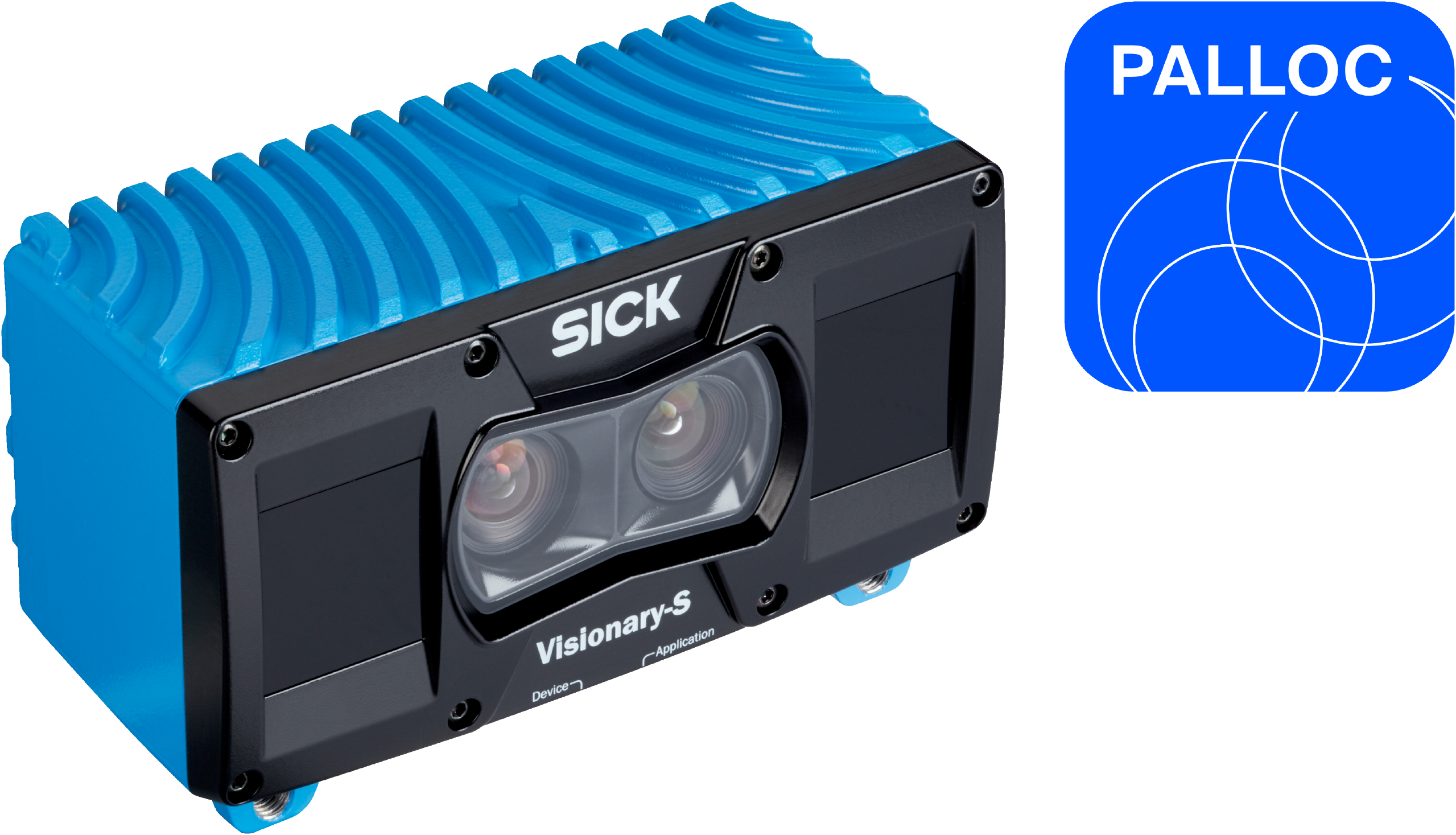

Robot guidance systems | Visionary-S | PALLOC-VS | Localization accuracy: < +/- 5 mm and < +/- 1° (typical) | Calibration: yes | Dimensions, system (L x W x H): 162 mm x 93 mm x 78 mm (without cooling fins)
Product version
Visionary-S AP
Example field of view
1.6 m x 1.3 m
Working distance
1.2 m ... 3.5 m
Laser class
1 (IEC 60825-1:2014)1)EN 60825-1:2014+A11:2021
Localization principle
Deep Learning neural networks
System features
Deep learning-based standalone sensor for localizing parts using 3D color imaging
Technology
3D snapshot stereoscopy
Detection angle
60° x 50°
Angular resolution
0.094° x 0.098°
Lighting
Integrated
Illumination color
Infrared, laser, invisible, 808 nm
Description
PALLOC SensorApp with pretrained neural network and software license, preinstalled on the device
Supply voltage
24 V DC ± 15 %
Power consumption
19 W, Typical (without digital I/Os)
Housing color
Blue, black
Dimensions (L x W x H)
162 mm x 93 mm x 78 mm (without cooling fins)
Weight
1.7 kg, without cooling fins
Enclosure rating
IP67
Protection class
III
Connection types
Power/I/O: M12 17-pin, A-codedGigabit Ethernet: M12, 8-pin, X-coded
Peak current
3 A
Part localization time
1 s (Fast mode, robot mounted at distance of 1.2 m)3 s (Long distance mode, stationary mounting at distance of 1.5...3.5 m)
Localization accuracy
< +/- 5 mm and < +/- 1° (typical)
Part size
> 100 x 100 mm at a distance of 1.2 m> 250 x 250 mm at a distance of 3.5 m
Pixel count
640 px x 512 px
Switch-on delay
< 25 s (typical)
Processor
1.2 GHz, 4 × ARM Cortex A721)
Ethernet
✔
Data transmission rate
Communication interface Gigabit Ethernet (TCP/IP)
Protocol
TCP/IP JSON, XML and CSV (robot), TCP/IP (operator) FTP
User interface
Web server
Optical indicators
2 status LEDs
Data storage and retrieval
Image and data logging via microSD memory card and external FTP
Ambient temperature, operation
0 °C ... +40 °C, without cooling fins
Ambient temperature, storage
–20 °C ... +70 °C
Shock load
EN 60068-2-27
Vibration resistance
EN 60068-2-6, EN 60068-2-64
Ambient light immunity
< 40 klx, Sunlight
Electromagnetic compatibility (EMC)
EN 61000-6-2:2005-08, EN 61000-6-3:2007-01
Factory calibrated
✔
Mounting

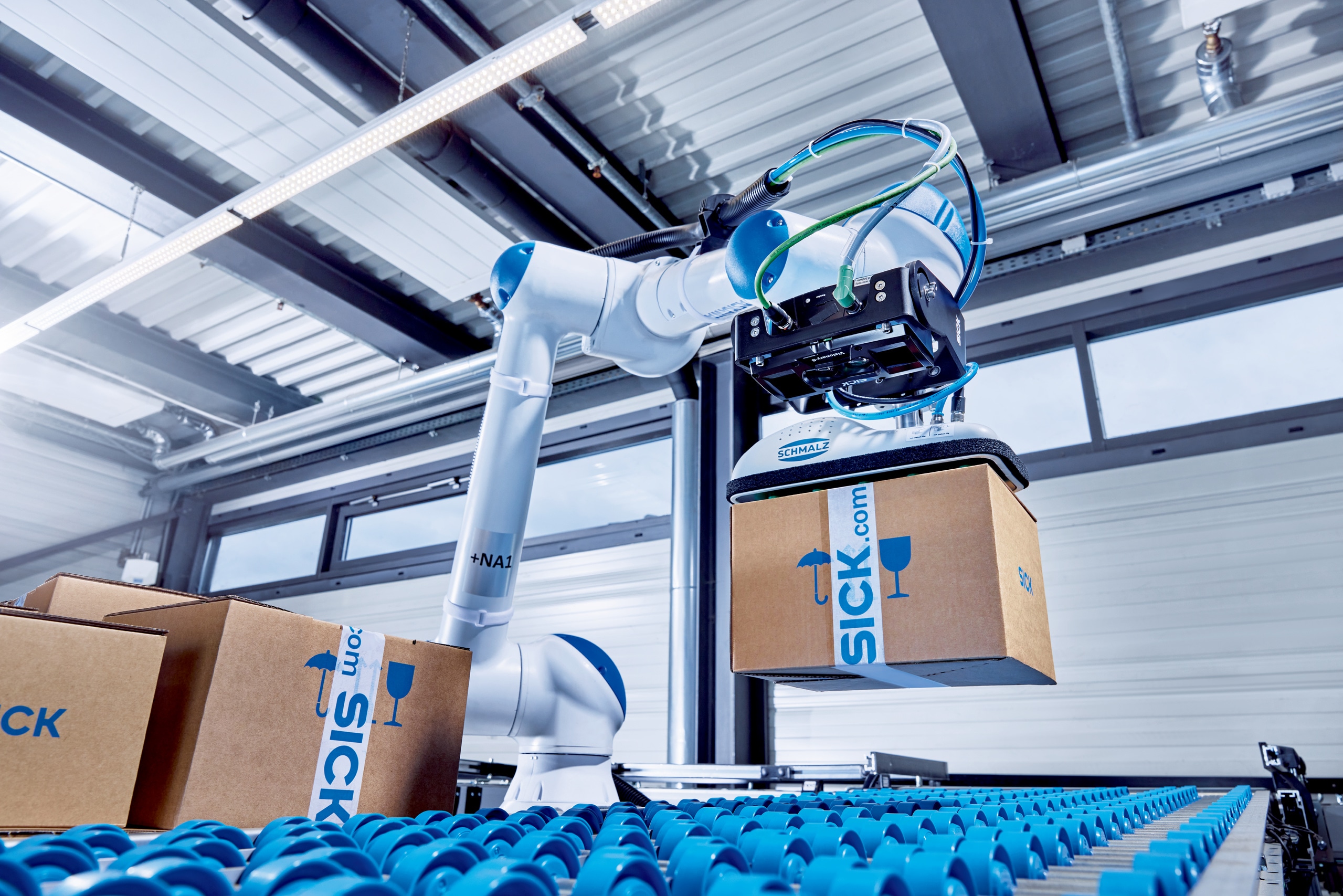

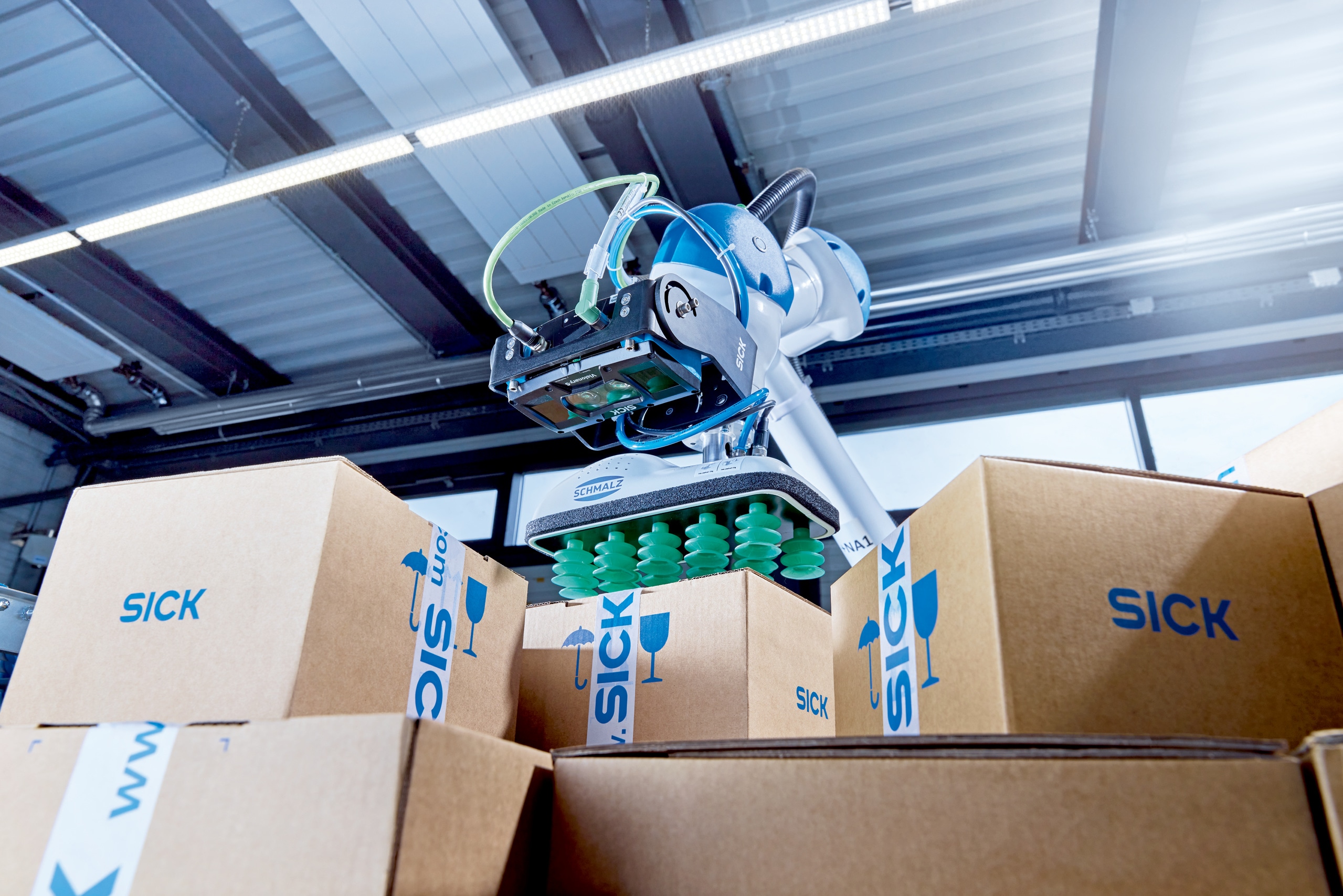

Robot or stationary mounted sensor
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
ECLASS 5.1.4
0
ECLASS 6.0
0
ECLASS 7.0
0
ECLASS 8.0
0
ECLASS 9.0
0
ECLASS 10.0
0
ECLASS 11.0
27381591
ECLASS 12.0
27381591
ECLASS 13.0
27381591
ECLASS 14.0
27381591
ECLASS 15.0
27381591
ETIM 7.0
EC003554
ETIM 8.0
EC003554
ETIM 9.0
EC003554
ETIM 10.0
EC003554
UNSPSC 091201.0
23153200
UNSPSC 100501.0
23153200
UNSPSC 111201.0
23153200
UNSPSC 120901.0
23153200
UNSPSC 131201.0
23153200
UNSPSC 140801.0
23153200
UNSPSC 151101.0
23153200
UNSPSC 160901.0
23153200
UNSPSC 171001.0
23153200
UNSPSC 180801.0
23153200
UNSPSC 190501.0
23153200
UNSPSC 200601.0
23153200
UNSPSC 210901.0
23153200
UNSPSC 220601.0
23153200
UNSPSC 230701.0
23153200
UNSPSC 240301.0
23153200
UNSPSC 250901.0
23153200
UNSPSC 260801.0
23153200
