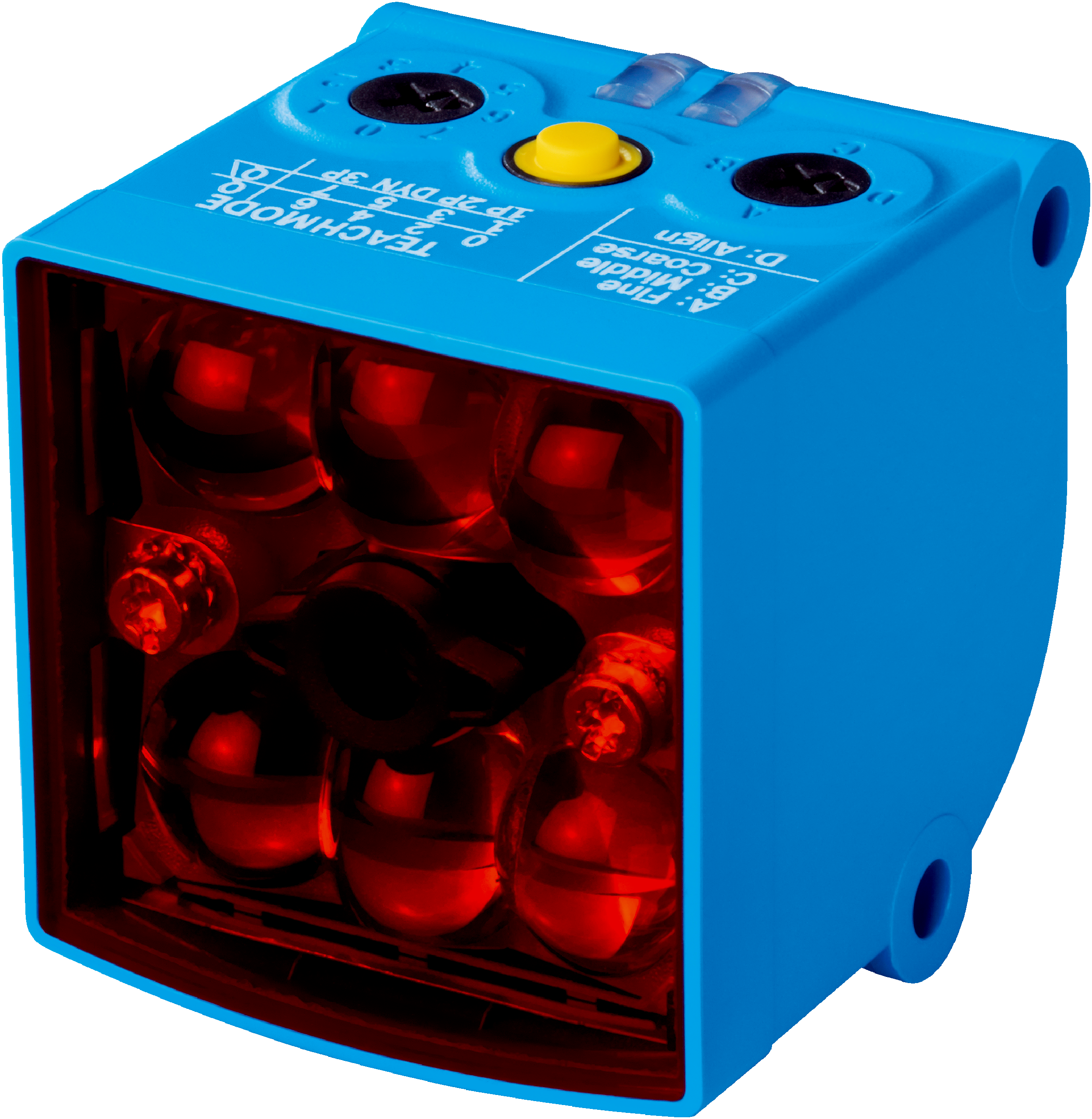

Glare sensors | Glare | OPR20G-RB517537A01 | Communication interface: IO-Link | Sensing distance: 50 mm | Switching output: Push-pull: PNP/NPN | Light spot size: 10 mm x 12 mm | Connection type Detail: Plug, M12, 5-pin | Pin 5 configuration: counter reset | Minimum detectable object (MDO): 12 x 14 mm | Switching frequency: 500 Hz | Response time: 1 ms
Sensor principle
Delta-S-Technology®
Housing design
Middle
Dimensions (W x H x D)
42.5 mm x 44 mm x 43.4 mm
Light source
LED, visible red light1)
Light spot size
10 mm x 12 mm
Wave length
640 nm
Sensing distance
≤ 50 mm
Sensing distance tolerance
± 5 mm
Tilt angle tolerance
± 5°
Minimum detectable object (MDO)
12 x 14 mm
Sensitivity
Fine, middle, coarse
Object speed max.
2 m/s2)
Adjustment
Potentiometer, cable, IO-Link, Single teach-in button (Sensitivity (Q, Q/, teach-in), counter reset, Teach-in)3)4)
Teach-in mode
Static 1-point teach-inStatic 2-point teach-inDynamic 2-point teach-inStatic 3-point teach-in
IO-Link
✔
VendorID
26
DeviceID HEX
800059
DeviceID DEC
8388697
Cycle time
2.3 ms
Process data structure
Bit 0 = switching signal QL1Bit 1 = switching signal QL2Bit 2 ... 15 = counting value
Supply voltage
10 V DC ... 30 V DC1)
Ripple
≤ 5 Vpp2)
Current consumption
< 150 mA3)
Switching frequency
500 Hz4)
Jitter
500 µs
Number of switching outputs
2 (Q1, Q2)
Switching output
Push-pull: PNP/NPN
Switching output (voltage)
Push-pull: PNP/NPN (High: VS- 3 V, Low: < 3 V)
Output current Imax.
< 100 mA5)
Initialization time
< 2.5 s
Switch-on delay
0 s ... 30 s
Off delay
0 s ... 30 s
Pulse duration
≤ 30 s
Protection class
III
Circuit protection
A6)C7)D8)
Housing material
ABS
Weight
130 g
Ambient operating temperature
–10 °C ... +55 °C
Ambient temperature, storage
–25 °C ... +75 °C
Ambient light immunity
> 50 klx
Shock load
According to EN 60068-2-27, single shock (30 g/11 MS), continuous shock (25 g/11 MS)
Enclosure rating
IP67
UL File No.
NRKH.E181493
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
IO-Link certificate
✔
Photobiological safety (IEC EN 62471)
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
ECLASS 5.1.4
27270906
ECLASS 6.0
27270906
ECLASS 7.0
27270906
ECLASS 8.0
27270906
ECLASS 9.0
27270906
ECLASS 10.0
27270906
ECLASS 11.0
27270906
ECLASS 12.0
27270906
ECLASS 13.0
27270906
ECLASS 14.0
27270906
ECLASS 15.0
27270906
ETIM 6.0
EC001820
ETIM 7.0
EC001820
ETIM 8.0
EC001820
ETIM 9.0
EC001820
ETIM 10.0
EC001820
UNSPSC 091201.0
39121528
UNSPSC 100501.0
39121528
UNSPSC 111201.0
39121528
UNSPSC 120901.0
39121528
UNSPSC 131201.0
39121528
UNSPSC 140801.0
39121528
UNSPSC 151101.0
39121528
UNSPSC 160901.0
39121528
UNSPSC 171001.0
39121528
UNSPSC 180801.0
39121528
UNSPSC 190501.0
39121528
UNSPSC 200601.0
39121528
UNSPSC 210901.0
39121528
UNSPSC 220601.0
39121528
UNSPSC 230701.0
39121528
UNSPSC 240301.0
39121528
UNSPSC 250901.0
39121528
UNSPSC 260801.0
39121528
