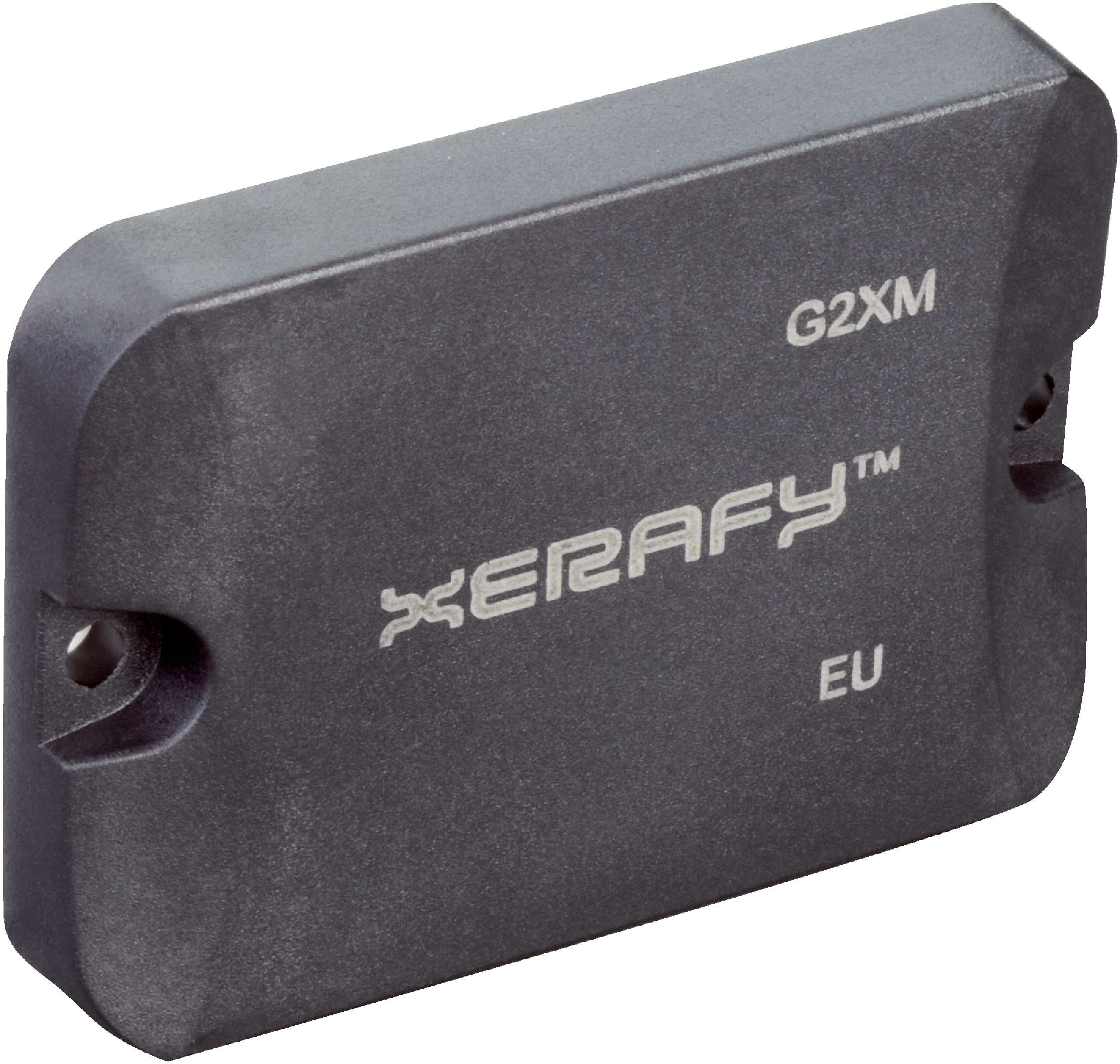

RFID | RFID transponders | On-metal transponder high-temp. ETSI | Carrier frequency: 865 MHz ... 868 MHz | Memory capacity (UII / user memory): 240/512 Bit | Dimensions (L x W x H): 51 mm x 36.3 mm x 7.5 mm
Frequency band
UHF (860 MHz ... 960 MHz)
Carrier frequency
865 MHz ... 868 MHz
RFID standard
EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C
IC type
NXP UCODE G2XM
Memory capacity (UII / user memory)
240/512 Bit
IC write cycle
≤ 100,000
IC data retention time
< 10 years
Housing
Nylon
Housing color
Dark gray
Enclosure rating
IP68
Weight
+ 26 g
Dimensions (L x W x H)
51 mm x 36.3 mm x 7.5 mm
Hole
3.2 mm
Ambient operating temperature
–30 °C ... +85 °C
Storage temperature
–30 °C ... +85 °C
ECLASS 5.0
27280401
ECLASS 5.1.4
27280401
ECLASS 6.0
27280401
ECLASS 6.2
27280401
ECLASS 7.0
27280401
ECLASS 8.0
27280401
ECLASS 8.1
27280402
ECLASS 9.0
27280402
ECLASS 10.0
27280402
ECLASS 11.0
27280402
ECLASS 12.0
27280402
ETIM 5.0
EC002593
ETIM 6.0
EC002998
ETIM 7.0
EC002998
ETIM 8.0
EC002998
UNSPSC 16.0901
52161523
