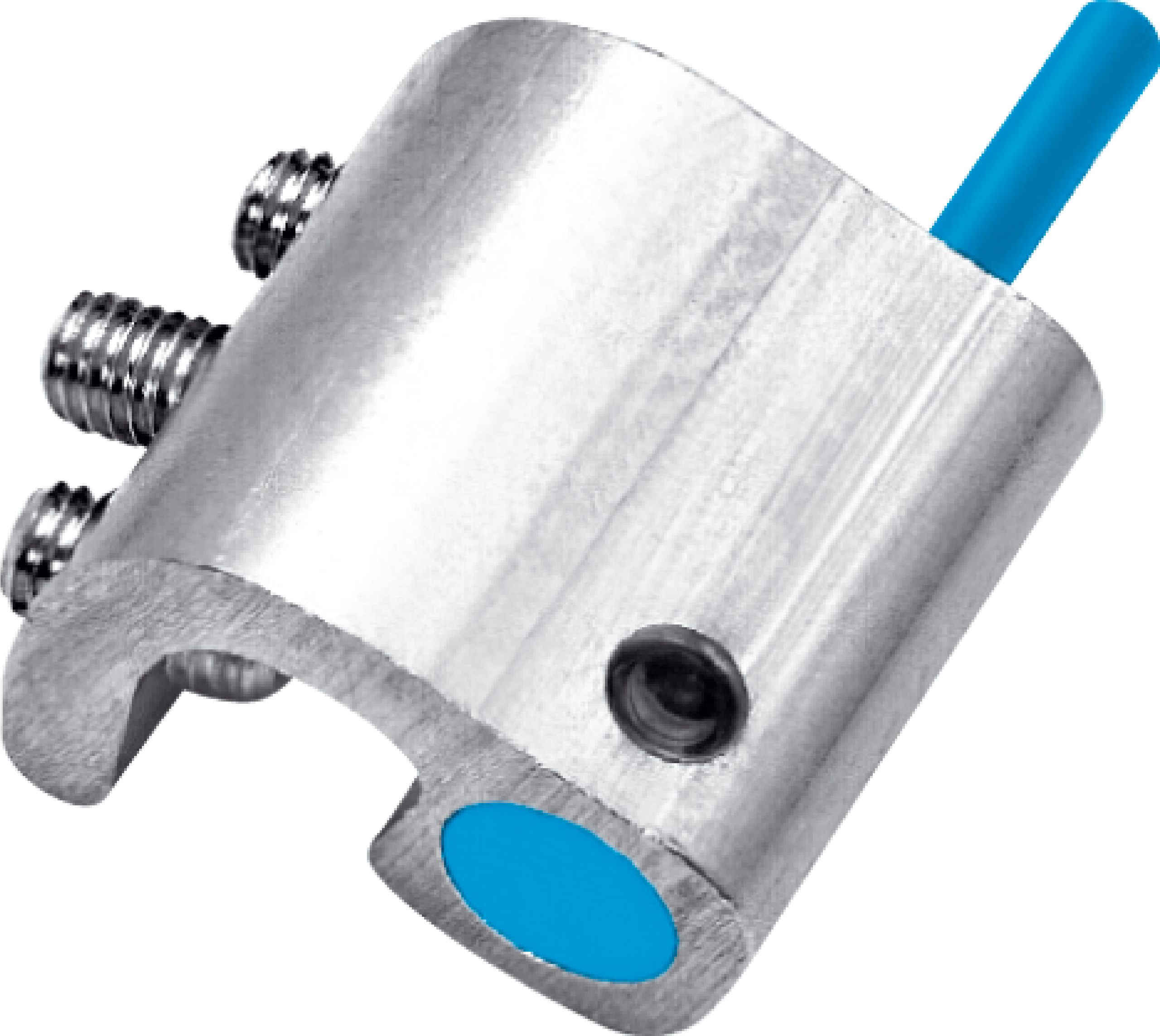

Cylinder sensors | MZZ1 Namur | MZZ1-03V-N-AW0 | Connection type: Cable, 2-wire, 2 m | Switching output: NAMUR | Electrical wiring: DC 2-wire | Communication interface: -
Cylinder type
Tie rod cylinder
Switching output
NAMUR
Switching output detail
NAMUR
Switching frequency
5,000 Hz
Electrical wiring
DC 2-wire
Enclosure rating
IP671)
Ex area category
2G, 1D
Time delay before availability
≤ 2 ms
Dimensions (W x H x D)
30 mm
Response sensitivity, typ.
3 mT
Reproducibility
≤ 0.1 mm1)
Reverse polarity protection
Yes
Short-circuit protection
Yes
Status indicator LED
Yes
Ambient operating temperature
–25 °C ... +70 °C
Shock and vibration resistance
30 g, 11 ms / 10 ... 55 Hz, 1 mm
EMC
According to EN 60947-5-6
Connection type
Cable, 2-wire, 2 m
Conductor cross section
0.34 mm²
Housing
Metal, Aluminum
Sensing face
Plastic, plastic
Cable
PVC
EC-Type examination certificate
TÜV 19 ATEX 241335
ATEX marking
EX II 2G Ex ia IIC T6 GbEX II 1D Ex ia IIIC T85 °C DaTa: –25 °C ... +70 °C
Input voltage Uimax.
16 V2)
Input power Pimax.
100 mW2)
Input current Iimax.
30 mA2)
Internal capacitance Cimax.
130 nF2)
Internal inductance Limax.
10 µH2)
Nominal voltage
8.2 V DC
ECLASS 5.0
27270104
ECLASS 5.1.4
27270104
ECLASS 6.0
27270104
ECLASS 6.2
27270104
ECLASS 7.0
27270104
ECLASS 8.0
27270104
ECLASS 8.1
27270104
ECLASS 9.0
27270104
ECLASS 10.0
27270104
ECLASS 11.0
27270104
ECLASS 12.0
27274301
ETIM 5.0
EC002544
ETIM 6.0
EC002544
ETIM 7.0
EC002544
ETIM 8.0
EC002544
UNSPSC 16.0901
39122230
