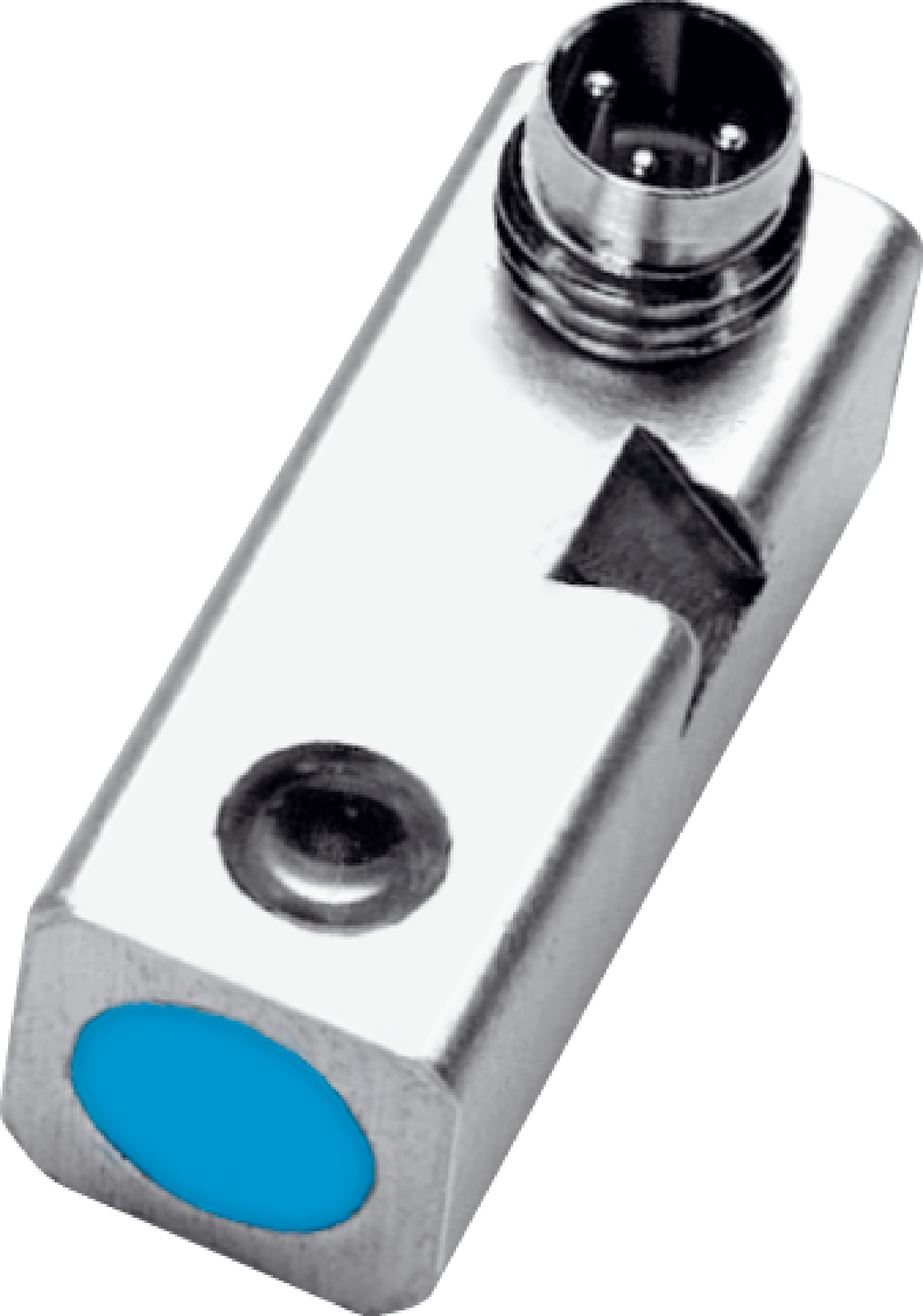

Cylinder sensors | MZR2 | MZR2-03VNS-AT0 | Connection type: Connector M8, 3-pin | Switching output: NPN | Output function: NO | Electrical wiring: DC 3-wire | Communication interface: -
Cylinder types with adapter
Round body cylinder
Housing length
30 mm
Switching output
NPN
Switching output detail
NPN
Switching frequency
5,000 Hz
Output function
NO
Electrical wiring
DC 3-wire
Enclosure rating
IP671)
Supply voltage
10 V DC ... 30 V DC
Power consumption
10 mA, without load
Voltage drop
≤ 1.5 V1)
Continuous current Ia
≤ 300 mA
Time delay before availability
≤ 2 ms
Response sensitivity, typ.
≤ 3 mT
Reproducibility
≤ 0.1 mm2)
Reverse polarity protection
Yes
Short-circuit protection
Yes
Status indicator LED
Yes
Power-up pulse protection
Yes
Ambient operating temperature
–25 °C ... +75 °C
Shock and vibration resistance
30 g, 11 ms / 10 ... 55 Hz, 1 mm
EMC
According to EN 60947-5-2
Connection type
Connector M8, 3-pin
Housing
Metal, Aluminum
Sensing face
Plastic, plastic
ECLASS 5.0
27270104
ECLASS 5.1.4
27270104
ECLASS 6.0
27270104
ECLASS 6.2
27270104
ECLASS 7.0
27270104
ECLASS 8.0
27270104
ECLASS 8.1
27270104
ECLASS 9.0
27270104
ECLASS 10.0
27270104
ECLASS 11.0
27270104
ECLASS 12.0
27274301
ETIM 5.0
EC002544
ETIM 6.0
EC002544
ETIM 7.0
EC002544
ETIM 8.0
EC002544
UNSPSC 16.0901
39122230
