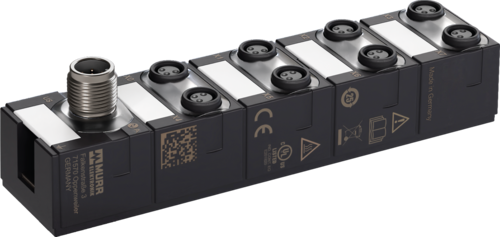

IO-Link hub in 50 mm plastic housing 1 × M12 IO-Link Class A 8 × M12 I/O 16 configurable digital inputs/outputs Extended parameter range Connection cables...
Kaal
0,200 kg
Päritoluriik
DE
Mudeli tähistus
MVP12-P6 DIO16 8xM12A IOLA12 E0
Operating voltage DC
24 V
Operating voltage US DC
24 V
Total current US max.
4 A
Current consumption max.
40 mA
Sensor current per input max.
0,5 A
Input time filter min.
0 ms
Input time filter max.
15 ms
Type input
Type 3, Type 1
Output current per pin max.
0,5 A
IO-Link type
Device
Port Class
A
IO-Link revision ID
V1.1.2
