Murrelektronik
MVK MPNIO DI6 DO6 IOL IRT MVK ProfiNet, metal, galvanic separation
Hind käibemaksuta
Küsi pakkumist

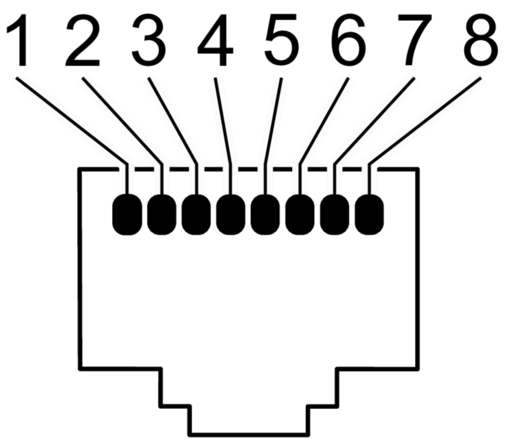

Digital inputs/outputs DI6 DO6 IOL2 (IRT) Ethernet 10/100 Mbit/s; Push Pull RJ45 Data connector Push Pull Power connector, max. 12 A M12, 5-pole, A-coded...
Kaal
1,010 kg
Päritoluriik
DE
Mudeli tähistus
MVK MPNIO DI6 DO6 IOL2 IRT PP
Norm operating voltage
IEC/EN 61131-2
Operating voltage US DC
24 V
Total current US max.
12 A
Operating voltage UA DC
24 V
Total current UA max.
12 A
Sensor current US per input max.
0,2 A
Sensor current US per IO-Link port max.
1 A
Short-circuit protected
Yes
Overload resistant
Yes
Type input
for 3-wire sensors or mechanical switches, IO-Link Devices, PNP
Output current per pin max.
2 A
Lamp load
10 W
