Muting arm kit M4000, 4 sensors, parallel muting
SICK

Muting arm kit M4000, 4 sensors, parallel muting

SKU: 2046170 Saadaval tellimisel
Hind käibemaksuta
Küsi pakkumist

Küsi pakkumist

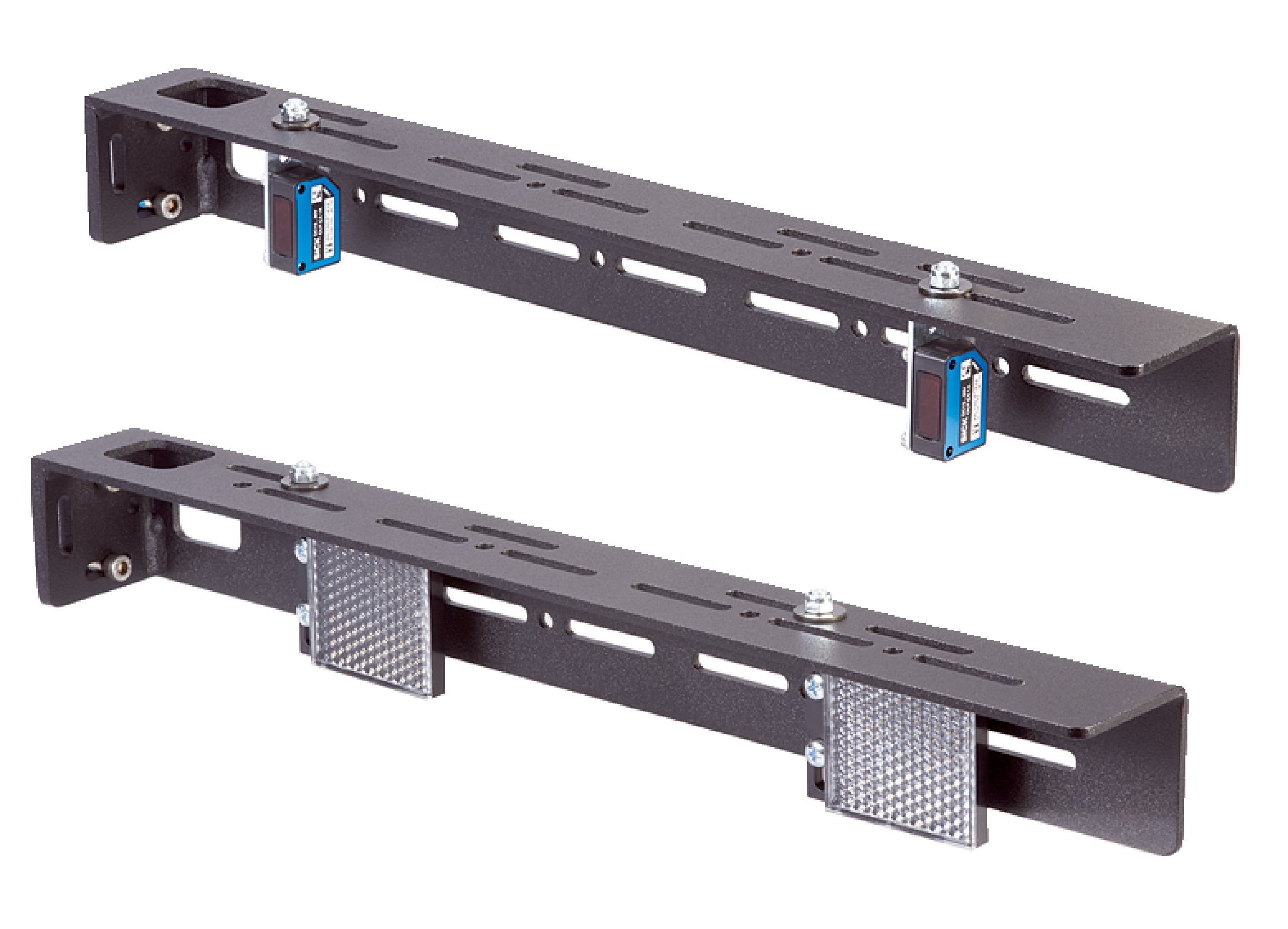

    Mounting systems | Muting arms | Muting arm kit M4000, 4 sensors, parallel muting | Description: Muting arm kit for 4-sensor parallel muting: Pre-mounted and pre-aligned muting arm kit for M4000 device profile mounting and for device columns with exterior mounting grooves | Items supplied: 2 x muting arm active: 4 x GL6G-P1211 pre-mounted in fixed position and M12 angled plug incl. 2 m cable, 2 x muting arm passive, 4 x P250 reflector pre-mounted in fixed position | Suitable for: M4000 Advanced, M4000 Advanced A/P, M4000 Advanced Curtain, PU3Hxx

    Accessory group
    Mounting systems
    Accessory family
    Muting arms
    Suitable for
    M4000 Advanced, M4000 Advanced A/P, M4000 Advanced Curtain, PU3Hxx
    Items supplied
    2 x muting arm active: 4 x GL6G-P1211 pre-mounted in fixed position and M12 angled plug incl. 2 m cable2 x muting arm passive, 4 x P250 reflector pre-mounted in fixed position
    Description
    Muting arm kit for 4-sensor parallel muting: Pre-mounted and pre-aligned muting arm kit for M4000 device profile mounting and for device columns with exterior mounting grooves
    ECLASS 5.1.4
    27279202
    ECLASS 6.0
    27279202
    ECLASS 7.0
    27279202
    ECLASS 8.0
    27279202
    ECLASS 9.0
    27273701
    ECLASS 10.0
    27273701
    ECLASS 11.0
    27273701
    ECLASS 12.0
    27273701
    ECLASS 13.0
    27273701
    ECLASS 14.0
    27273701
    ECLASS 15.0
    27273701
    ETIM 6.0
    EC002467
    ETIM 7.0
    EC002467
    ETIM 8.0
    EC002467
    ETIM 9.0
    EC002467
    ETIM 10.0
    EC002467
    UNSPSC 091201.0
    32131000
    UNSPSC 100501.0
    32131000
    UNSPSC 111201.0
    32131000
    UNSPSC 120901.0
    32131000
    UNSPSC 131201.0
    32131023
    UNSPSC 140801.0
    32131023
    UNSPSC 151101.0
    32131023
    UNSPSC 160901.0
    32131023
    UNSPSC 171001.0
    32131023
    UNSPSC 180801.0
    32131023
    UNSPSC 190501.0
    32131023
    UNSPSC 200601.0
    32131023
    UNSPSC 210901.0
    32131023
    UNSPSC 220601.0
    32131023
    UNSPSC 230701.0
    32131023
    UNSPSC 240301.0
    32131023
    UNSPSC 250901.0
    32131023
    UNSPSC 260801.0
    32131023
    Lae alla teabeleht

    Juhendid, CAD-mudelid, sertifikaadid ja muud materjalid on tootja veebisaidil:

    Ava toote leht tootja veebisaidil
